SMD5050 Single Color Flexible 60LED Strip Light
Home > Products > Flexible LED Strip > Single Color LED Strip > SMD5050 Single Color Flexible 60LED Strip Light
P/N: ZH10060SMD50
5050 SMD LED lighting source
12V/24V DC Voltage power
14W per meter wattage max
60LEDs per meter
White/ Warm White / Cool White color
10MM PCB width
12MM width after with silicon tube weatherproof
3M tape back side for nonwaterproof IP20
Product Description
Analog LED strip with SMD5050 LEDs. There are 60 RGB LEDs per meter - have types single white / warm white / cool white color.
The way they are wired, you will need 12V DC or 24V DC power supply and then ground pins to turn on the colors.
You can cut this stuff pretty easily with wire cutters, there are cut-lines every 5cm (3 LEDs each) for dc12v strips, and every 10cm ( 6 LEDs each ) for dc24v strips.
The brightness is can be adjustment if with the Light modulator.

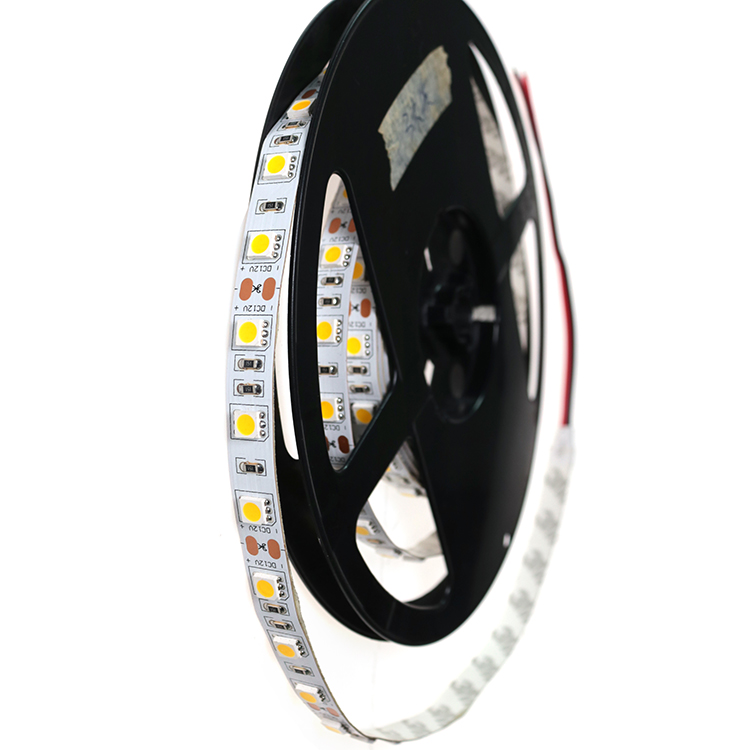

They standard come in 5 meter reels, and are sold by the half meter! but we welcome customized length anyhow.
10mm PCB width, 12mm width after with weatherproof silicon tube, clips and screws ship together for better installation, each meter 2 clips and 4 screws. 3M tape back side for sticking surface for nonwaterproof type installation.
We also have smd5050 30leds per meter Analog strips, as well as the 3528 30/60/120 leds per meter strips type for your choosing.
