3528 Single Color 60LED Strip
Home > Products > Flexible LED Strip > Single Color LED Strip > 3528 Single Color 60LED Strip
P/N: ZH100603528
3528 SMD LED lighting source
12V/24V DC Voltage power
4.8W per meter wattage max
60LEDs per meter
Red /green /blue/ww /w /cw color
5MM or 8MM PCB width
Waterproof or nonwaterproof option
Product Description
3528 led strip is the very simple strips, single color can be red, green, bule, white, warm white or cool white.

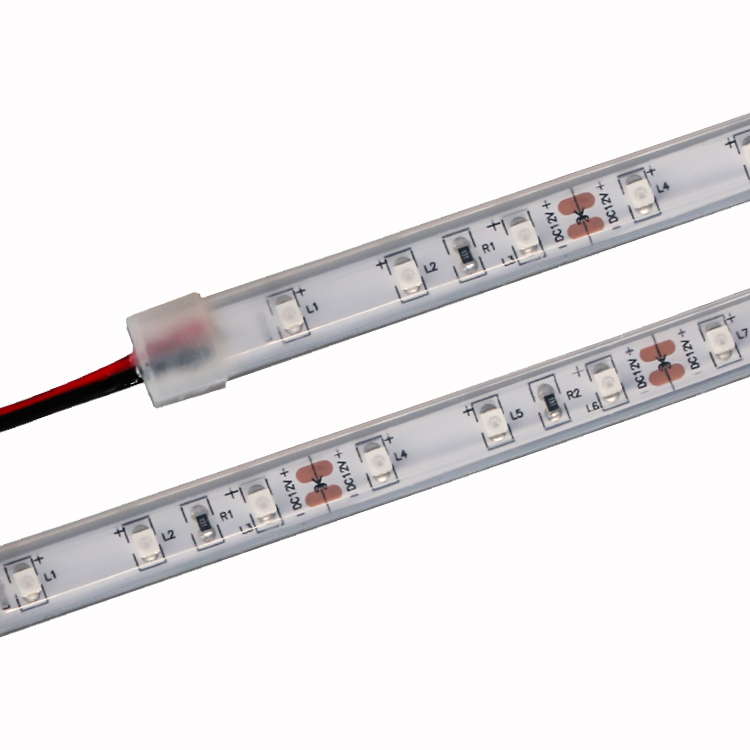

3528 led strip is built by 60pcs smd3528 led chip, thinner PCB board 5mm or 8mm, You can choose one which is more suitable for your application surface.
3528 single color 60led strips come voltage 12v or 24v, each 5cm 3leds can be cut if 12v, each 10cm 6leds can be cut if 24v, there is cut lines on the PCB that you can cut or re-soldering them in a longer length if you would like.
We don't attached connectors on both end of the strips, just out 2 bare wires by each end, usually black wire for GROUND, red wire for V+.
3528 single color 60led strips standard is 5meters per roll, but you can customized length anyhow.

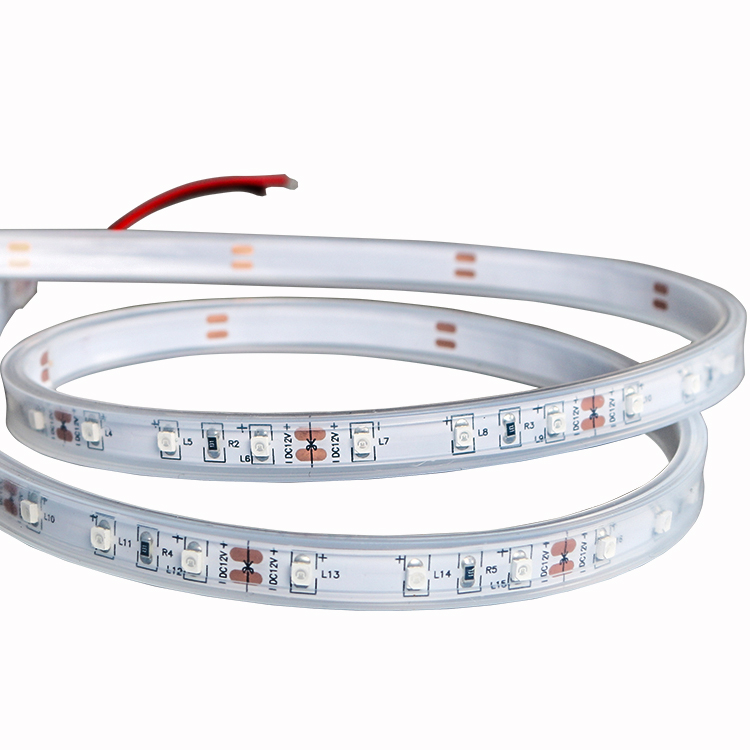

3528 led strips can be made in waterproof IP64/IP65/IP67:
P/N | ZH100603528 |
Lighting source | SM3528 LED |
Voltage | D12V/DC24V |
Wattage | 4.8w |
LEDs quantity/m | 60 |
Color | Red /blue/green/ww/cw/w |
PCB width | 5mm /8mm |
Standard reel | 5m/reel ( can be customized ) |
PCB color | White |
O. T | -30℃ ~ 45℃ |
