3528 Single Color 120LED Strip

Home > Products > Flexible LED Strip > Single Color LED Strip > 3528 Single Color 120LED Strip

3528 Single Color 120LED Strip

P/N: ZH1001203528

3528 SMD LED lighting source

12V/24V DC Voltage power

9.6W per meter wattage max

120LEDs per meter

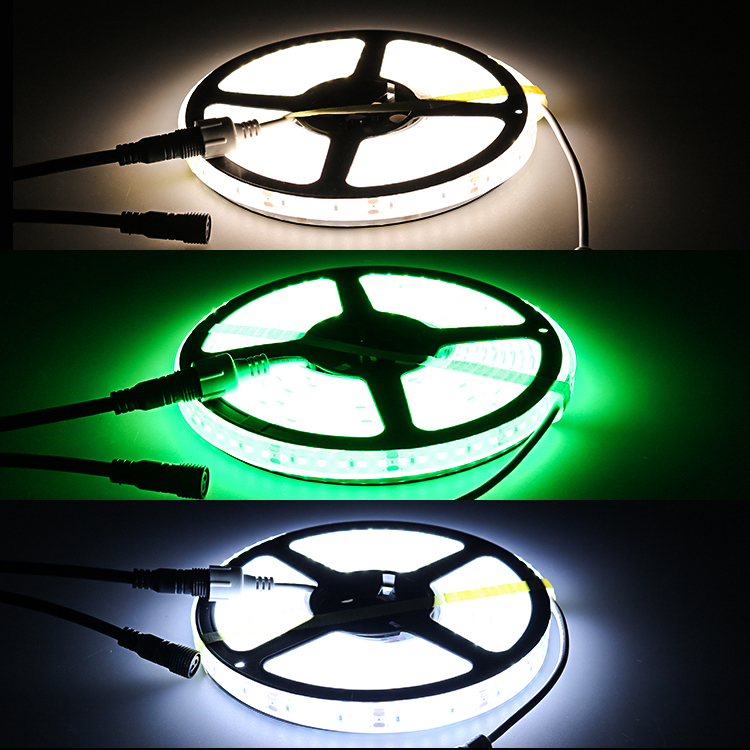

Red /green /blue/ww /w /cw color

8MM PCB width

Waterproof or nonwaterproof option

Product Description

3528 single color 120led strip is the very simple strips, single color can be red, green, bule, white, warm white or cool white.

3528 led strip is built by 120pcs smd3528 led chip, thinner PCB board 8mm,

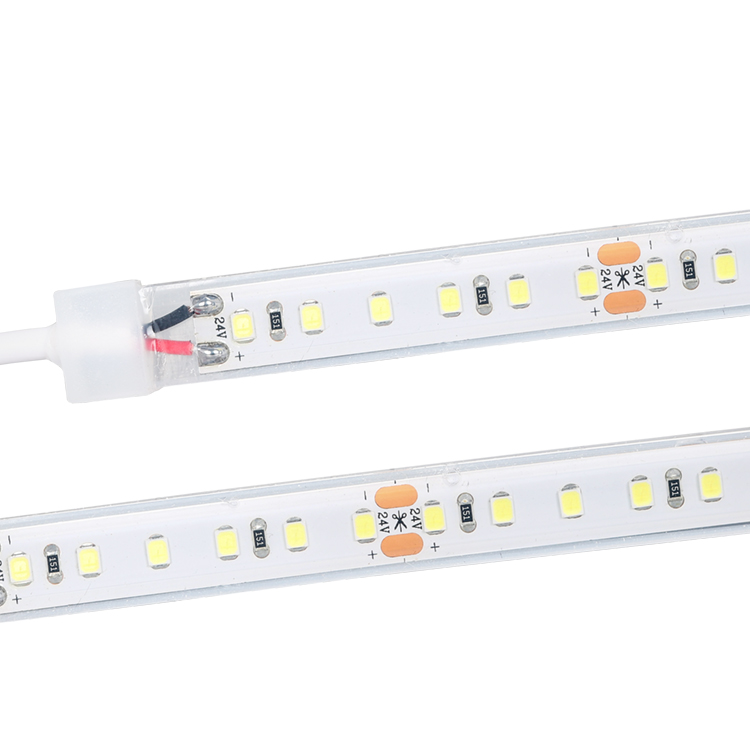

3528 single color 120led strips come voltage 12v or 24v, each 2.5cm 3leds can be cut if 12v, each 5cm 6leds can be cut if 24v, there is cut lines on the PCB that you can cut or re-soldering them in a longer length if you would like.

We don't attached connectors on both end of the strips, just out 2 bare wires by each end, usually black wire for GROUND, red wire for V+.

3528 single color 60led strips standard is 5meters per roll, but you can customized length anyhow.

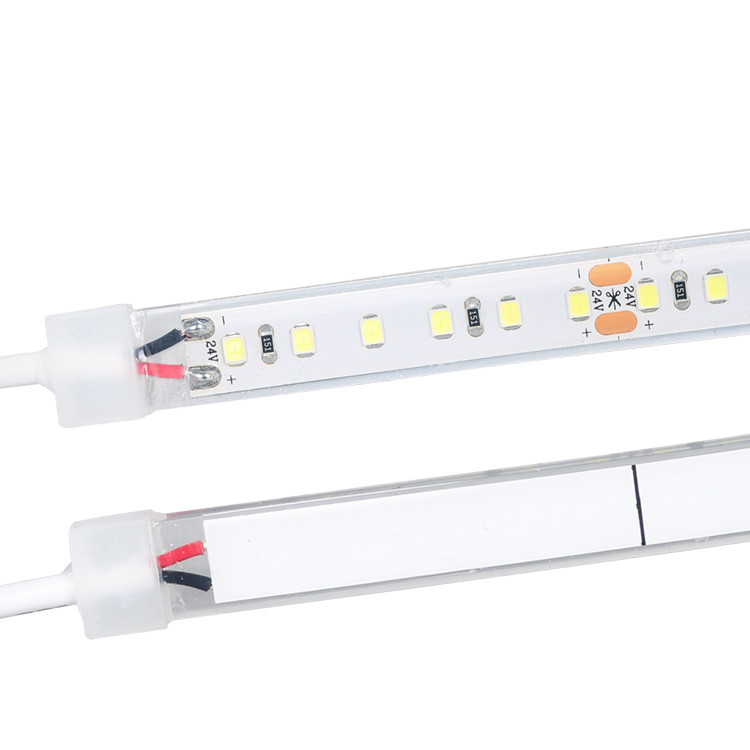

3528 led strips can be made in waterproof IP20/ IP64/IP65/IP67, please choose the best one based on your application.


P/NZH1001203528
Lighting sourceSM3528 LED
VoltageD12V/DC24V
Wattage9.6w
LEDs quantity/m120
ColorRed /blue/green/ww/cw/w
PCB width8mm
Standard reel5m/reel ( can be customized )
PCB colorWhite
O.  T-30℃ ~ 45℃
