2835 Single Color 60LED Strip

P/N: ZH100602835

2835 SMD LED lighting source

12V/24V DC Voltage power

12W or 24w per meter

60LEDs per meter

Red /green /blue/ww /w /cw color

8MM PCB width

More brightness

Product Description

2835 smd led strip is the very simple strips, static color can be red, green, bule, white, warm white or cool white.

Compare with 3528 led strips, 2835 led strips can be produced in more brightness, more lumen, then each led chip is more consumption that can reach 0.2w or 0.4w per diode.

2835 60led strip is built by 60pcs 2835 smd led chip, PCB board is 8mm.

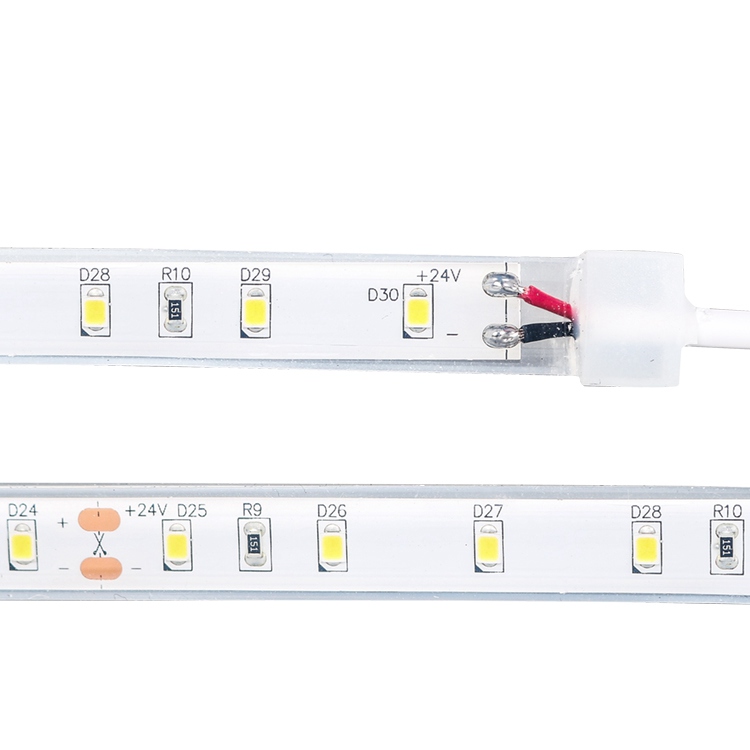

2835 single color 60led strips come voltage 12v or 24v, each 5cm 3leds can be cut if 12v, each 10cm 6leds can be cut if 24v, there is cut lines on the PCB that you can cut or re-soldering them in a longer length if you would like.

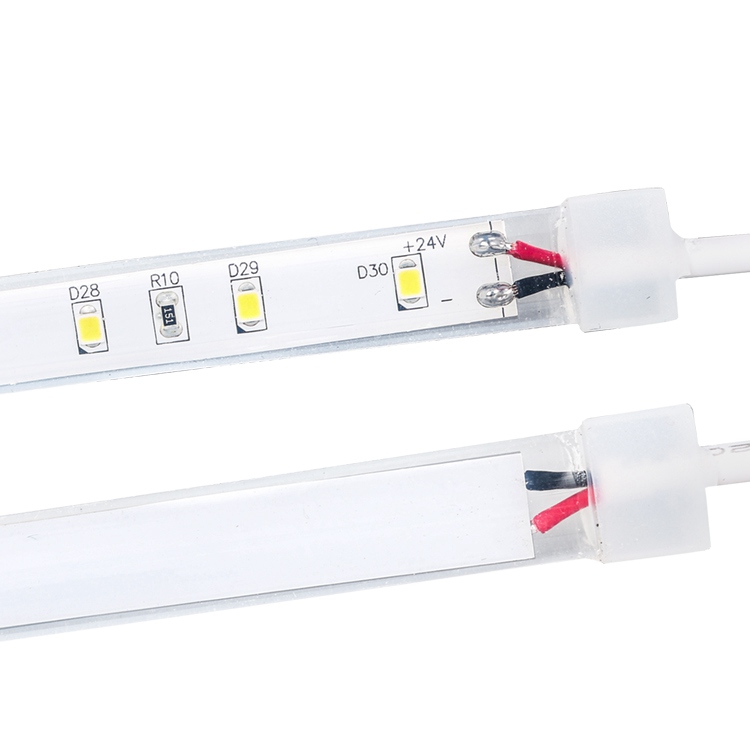

We don't attached connectors on both end of the strips, just out 2 bare wires by each end, usually black wire for GROUND, red wire for V+.

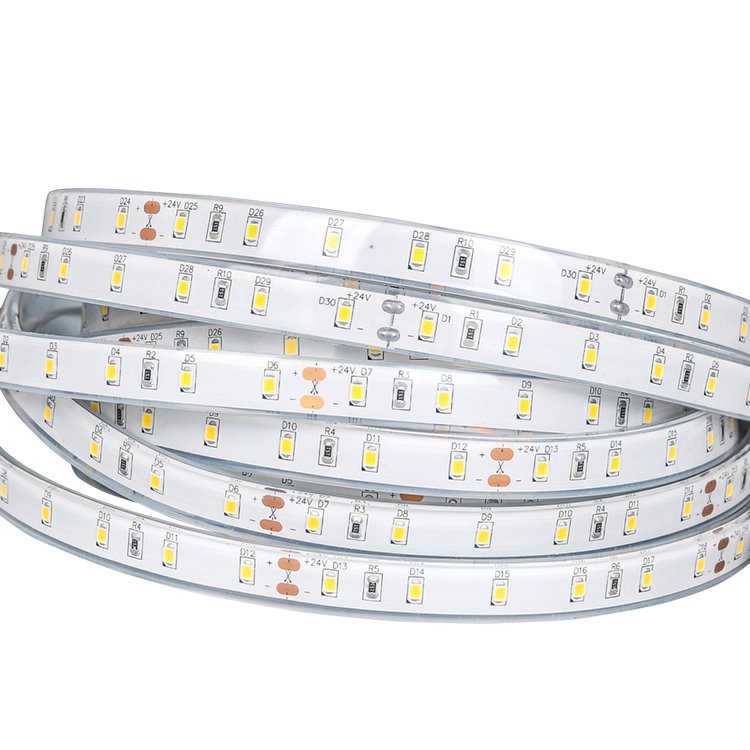

2835 single color 60led strips standard is 5meters per roll, but you can customized its length anyhow.

2835 led strips can be made in waterproof IP64/IP65/IP67, please choose the best one based on your application environment.


P/NZH100602835
Lighting sourceSMD2835 LED
VoltageD12V/DC24V
Wattage /m12w/24w per meter
LEDs quantity/m60
ColorRed /blue/green/ww/cw/w
PCB width8mm
Standard reel5m/reel ( can be customized )
PCB colorWhite
O.  T-30℃ ~ 45℃
