WS2815 Addressable RGB PIXEL LED Strip Light

Light source :  SMD5050 Intelligent RGB LED


Beam angle :  140 deg


Operating voltage :  DC12V


Consumption watts :  9±W


Protocol :   GS8208 IC


Density :  60 Pixels , 60LEDs per meter


PCB board :  10mm wide, 0.25mm thickness


Pixel Pitch : 16.67mm

Product Description

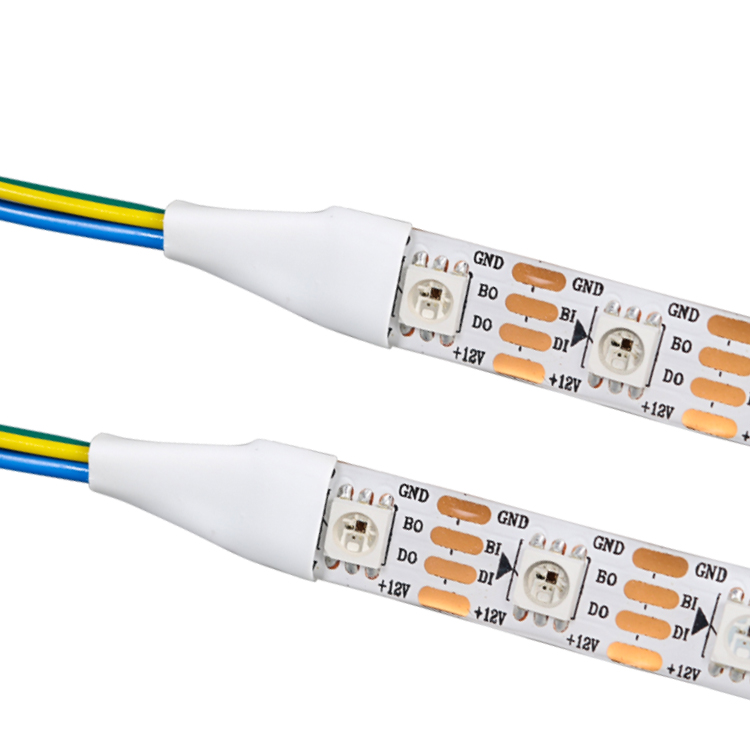

1. This strip is WS2815 individually address controlled 12V RGB Pixel led digital stripe tape.


2. Its advantage is this WS2815 pixel digital led strip has breakpoint continued transsmission function. That means if one pixel led broken, won't affect  other leds working performance compared to that classicial 5V addressable sk6812 RGB led strip couldn't


3. Entire strip has 60 pixels ( 180 channels) assembled in 60 pcs 5050 RGB leds in a meter with 10mm width FPCB.


4. There are individually address controlled 12V 30 pixels and 144 pixels led tapes to choose.


5. Vivid lighting performance operated by Arduino, Raspberry Pi , Madrix software, Artnet / DMX512 /MADRIX NEBULA led controllers.


6. Addressable controlled pixel led tape is flexible , bright, durable and easy for installation.

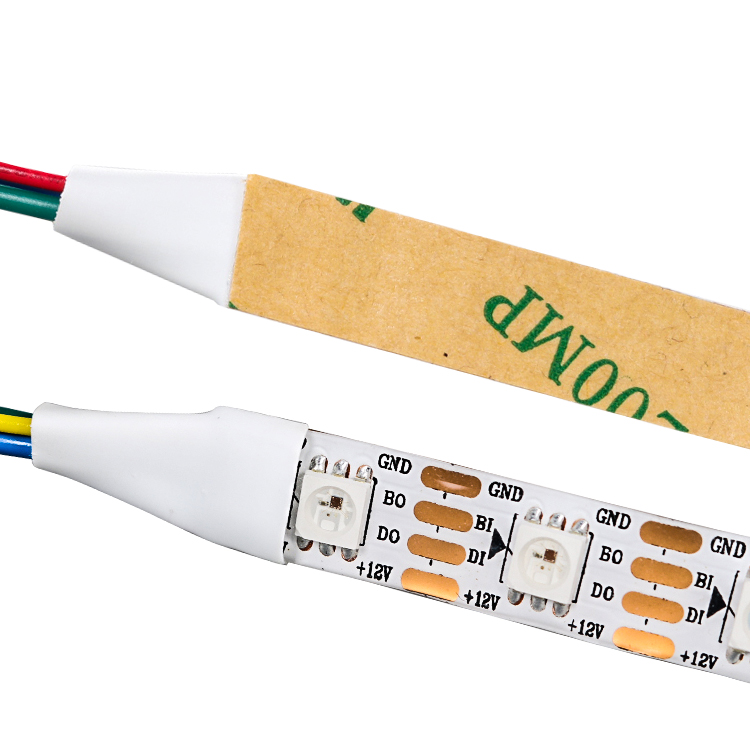

For bare board strip, you can use the 3M adhensive tape on back; For waterproof silicone tube strip, there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well.


7. Widely used in entertainment, stage, live performance, Disco Club and TV Show, etc .


Product numberH10B60L2815
SMD TypeSMD5050 RGB
Beam Angle140degree
LEDs QTY/M60 leds/m
Control IC chipWS2815
ColorRGB Pixel
PCB ColorWhite/Black
VoltageDC12V
Consumption14w/m
Working Temperature-20~50℃
