Side View 020 RGB 60LED Strip

P/N : ZH10060RGB020

020 SMD RGB LED lighting source

Side viewing

12VDC Voltage power

14W per meter wattage max

60LEDs per meter

5MM PCB width

7MM width after with silicon tube weatherproof

3M tape back side for nonwaterproof IP20


Product Description

Analog LED strip with 020 RGB LEDs . it is not same as 5050 leds that lighting illumination from top side , it is illuminated from side of the led's pack . they are excellent for edge lighting , coner lighting , cabin lighting and etc .



Only narrow 5mm PCB width , easy to hiden anywhere that you would like  .



There are 60 RGB LEDs per meter - you can control the entire strip at once with any micro-controller .



The way they are wired, you will need 12V DC power supply and then ground the R/G/B pins to turn on the colors.

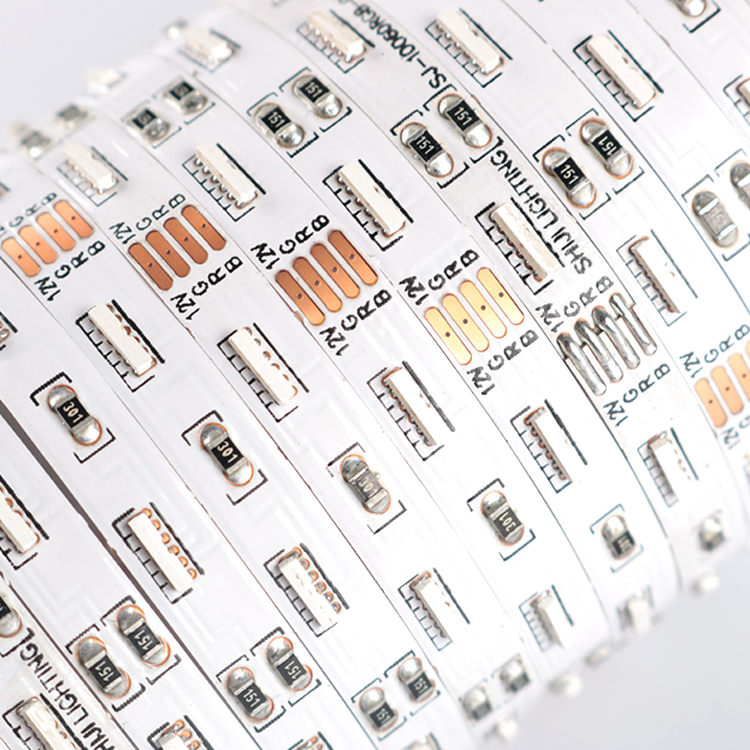

You can cut this stuff pretty easily with wire cutters, there are cut-lines every 5cm (3 LEDs each) on PCB .



They standard come in 5 meter reels, and are sold by the half meter! but we welcome customized length anyhow .

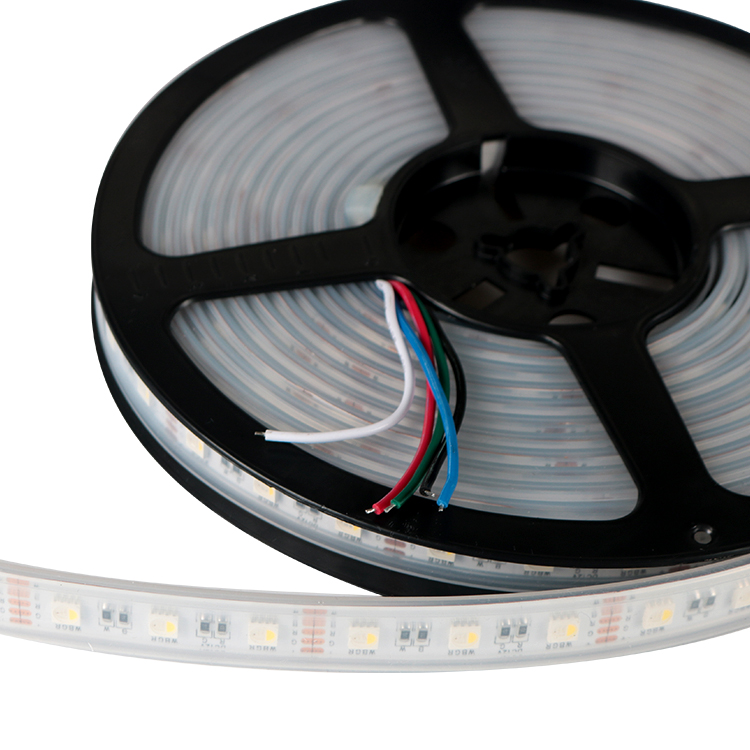

Weatherproof can be with silicon tube , or stronger protection with glue rounded .


P/N

ZH10060RGB020

Lighting source

SMD020 RGB LED

Voltage

D12V

Wattage

14.4w

LEDs quantity/m

60

Pixels /m

Analog PWM strips

PCB width

5mm

Standard reel

5m/reel ( can be customized )

PCB color

White /black

O . T

-30℃ ~ 45℃

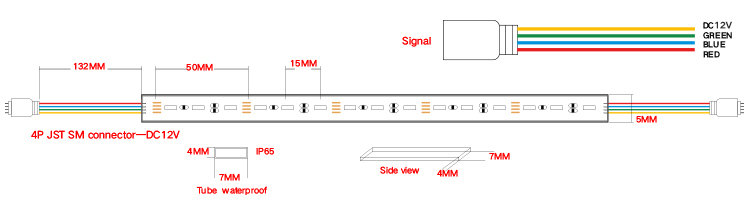

Outline Dimension
