Flexible RGBW 5050 60LED Strip

P/N: ZH10060RGBW50

5050 SMD RGBW LED lighting source

12V/24V DC Voltage power

19W per meter wattage max

60LEDs per meter

RGBW 4 IN ONE LED diode (CW/WW/NW )

12MM PCB width

14MM width after with silicon tube weatherproof

3M tape back side for nonwaterproof IP20

Product Description

Analog LED strip with SMD5050 RGBW LEDs, 4 chips red, green, blue and white chip all packaged in one 5050 led stand.

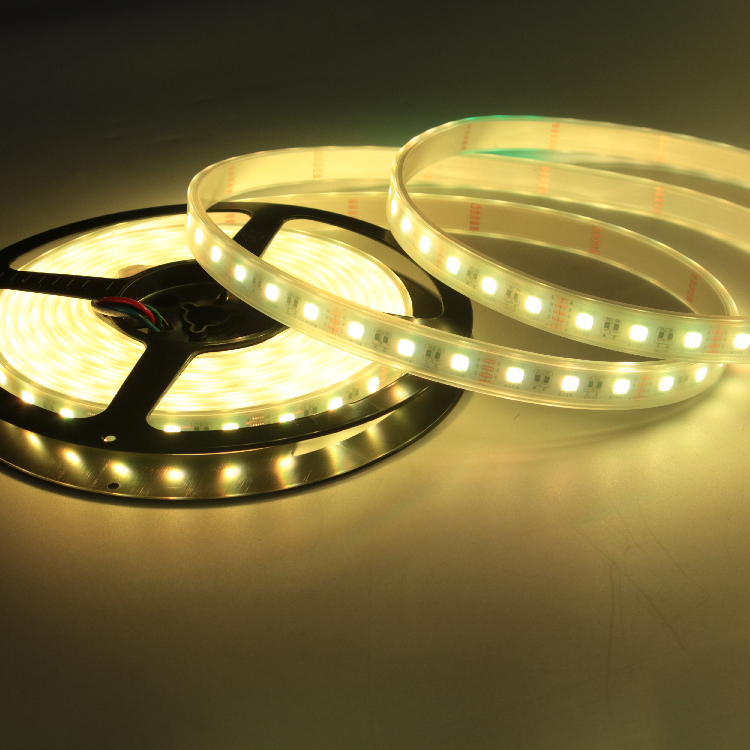

RGBW flexible 5050 led strip, there is 60 pieces RGBW LEDs per meter - the white color can be warm white, natural white and cool white.


The way they are wired, you will need 12V DC or 24V DC power supply and then ground pins to turn on the colors.

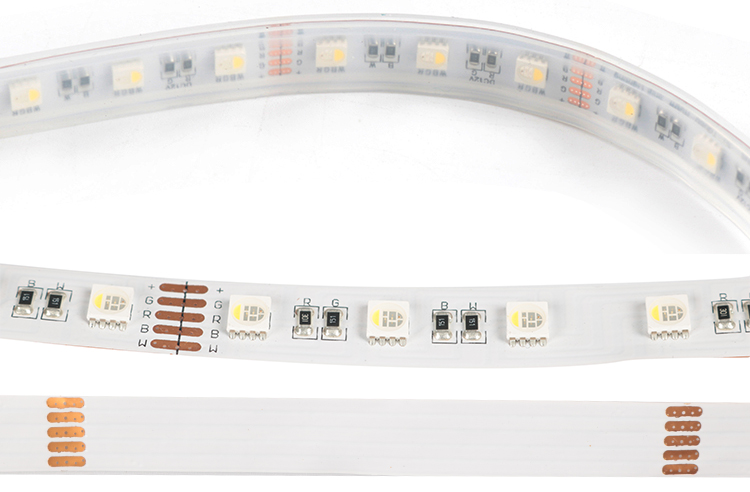

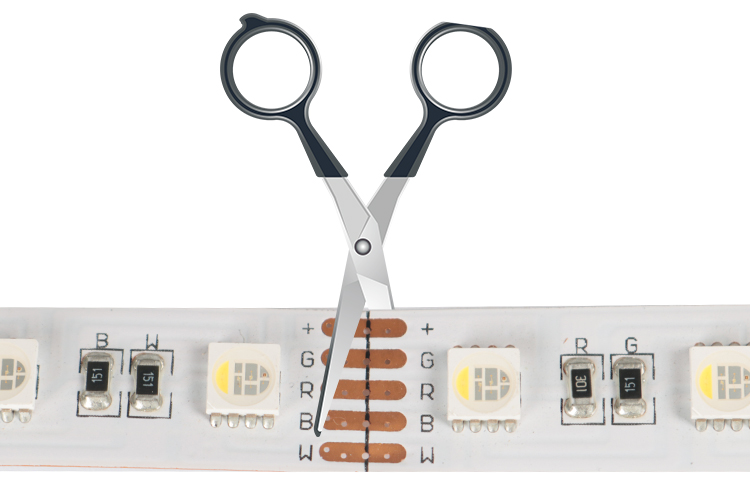

RGBW 5050 LED Strips, you can cut this stuff pretty easily with wire cutters, there are cut-lines every 5cm (3 LEDs each) for dc12v strips, and every 10cm (  6 LEDs each ) for dc24v strips.


Flexible RGBW LED strip's brightness is able to do adjustment if with the Light modulator.

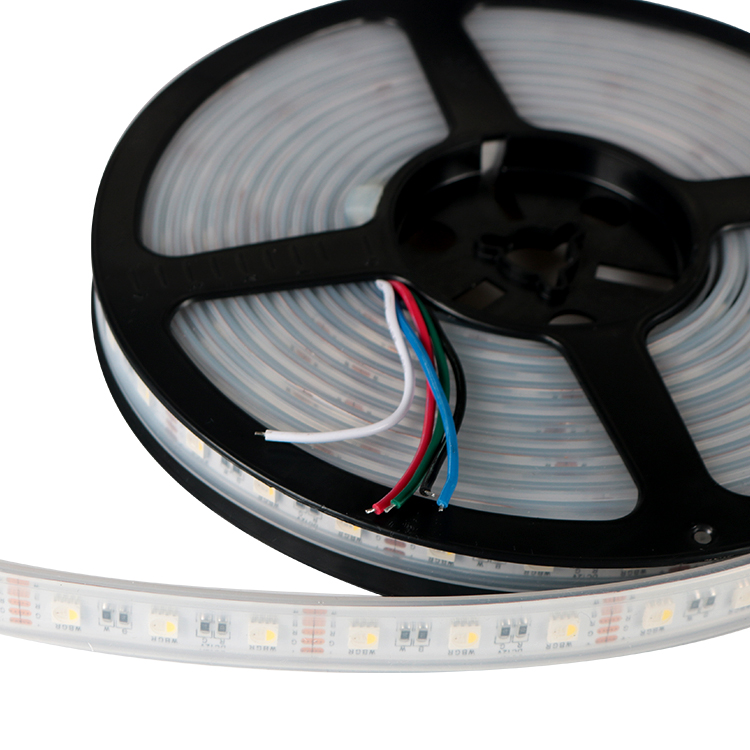

They standard come in 5 meter reels, and are sold by the half meter! but we welcome customized length anyhow.


12mm PCB width, 14mm width after with weatherproof silicon tube,clips and screws ship together for better installation, each meter 2 clips and 4 screws. 3M tape back side for sticking surface for nonwaterproof type installation.
