Multi Color Digital 50MM RGB Pixel LED Light
Home > Products > LED Pixel Light > Multi Color Digital 50MM RGB Pixel LED Light
P/N : ZH50DICRGB24V
50MM diameter
7pcs smd5050 RGB LED Lights
UCS1903 IC chip / WS2811 IC chip
DC24V 1.44watt max when full brightness

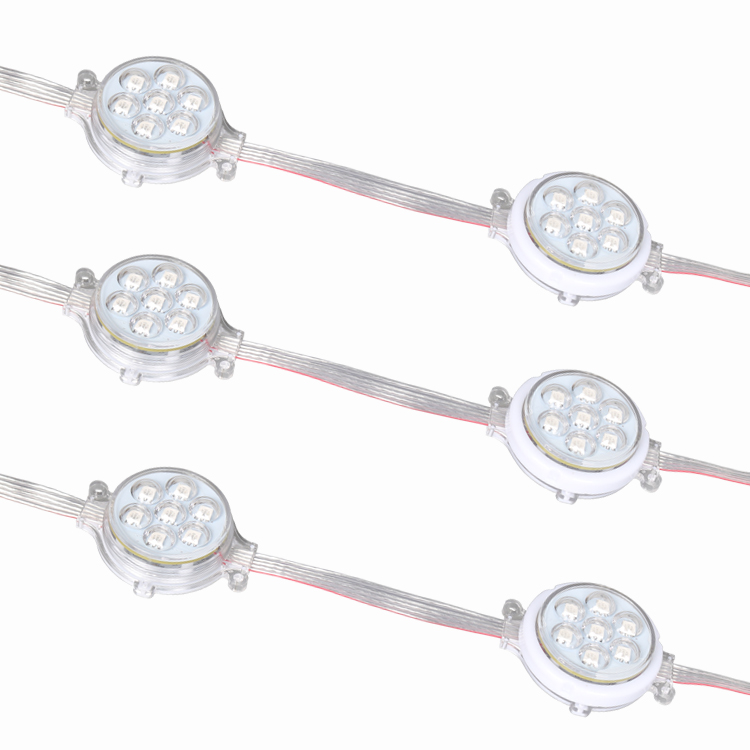

20pcs per string , 8cm cable length between each led
SD card controller , Arduino , DMX controller with decoder , etc .
Product Description

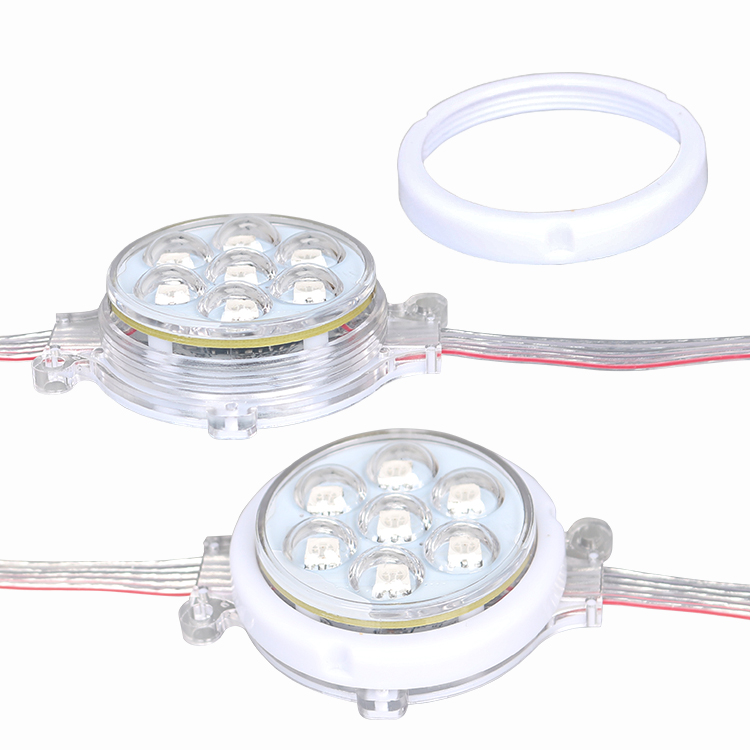

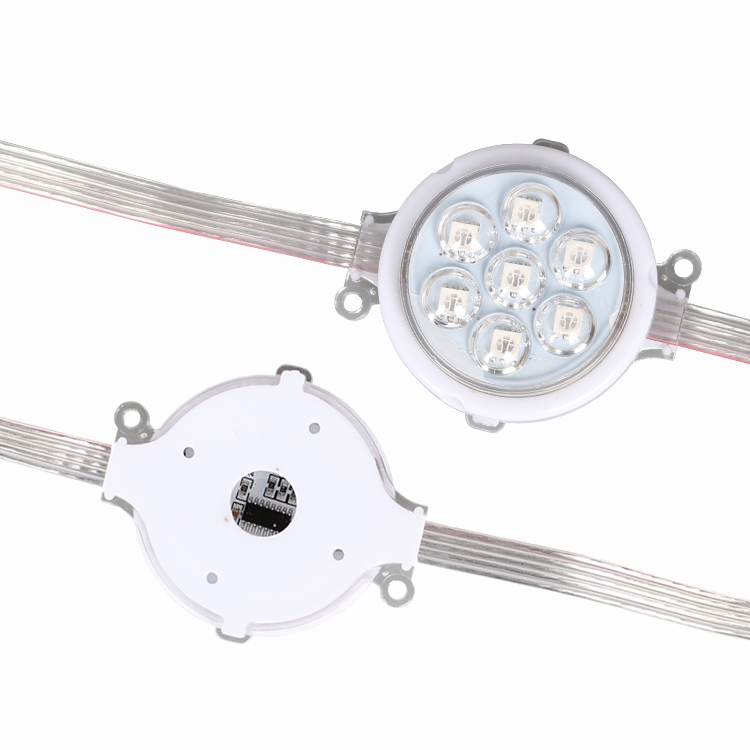

Each pixel contains three 5050 RGB LEDs along with a dedicated UCS1903 controller chip. All of the LEDs are controlled at once so you cannot have one pixel with the three LEDs different colors. (Color control is per single dot 7-LED pixel only) The total max brightness of all LEDs is about 10500mcd. The outside shell can be lens / flat transparent / dome transparent types .
