Milky White 50MM RGB Pixel LED Dome Module String Light
Home > Products > LED Pixel Light > Milky White 50MM RGB Pixel LED Dome Module String Light
Model Number : ZH-503IC-2801/ZH-506IC-2801
RGB Pixel LED Dome Modules combine multiple LEDs with an intelligent WS2801 integrated circuit chip, to produce eye catching animated effects. With one IC chip per module, each module requires 3 addresses for full control. The performance and control of these modules is like nothing you have ever seen. Each RGB dome can be individually controlled at the same time. We conducted extensive testing on a number of IC chips and chose the best one on the market. The WS2801 chip provides the widest range of colors, is faster, more efficient, and overall performs better than other IC chips.
Product Description
Each RGB LED Module is individually addressable, so you can set the color of each dome connected in a string independent of one another. With 3 or 6 LEDs in each 50mm diffused dome, these intelligent modules are perfect for creating ambient lighting effects. Easy to install using built in screw holes located on four corners of base. Create lighting effects for large displays that were never thought possible. The ability to control the color of each module creates an endless number of scenarios for creative lighting design. This is the beauty of pixel control.

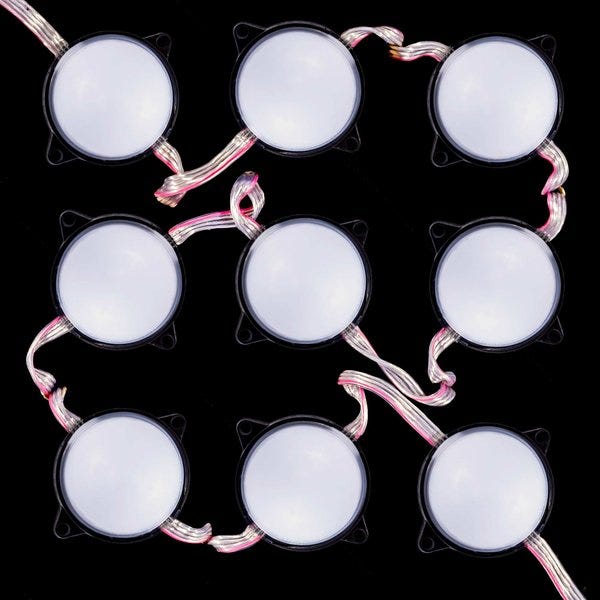

The Pixel Dome Modules are made in strings of 20, with connector plugs on the input and output of full strings. Module strings can be easily linked at the beginning and end using the built in connectors.Pixel modules are one directional, so be sure pay attention to the orientation of the string. male plug is always the input to the string, female output. The input end is always indicated by a male plug.

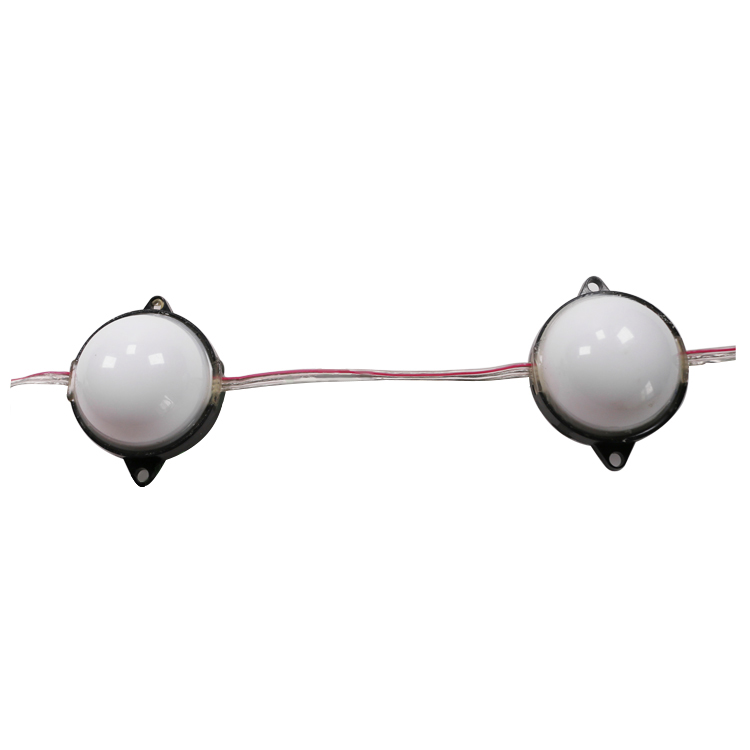

Easy to install: Built in mounting tabs with screw holes located on four corners of the module. 20 cm (about 8 inches) of wire between modules. male input and female output connectors on front and end respectively, on full strings. Simply connect them together. Because the wire is flexible, you can array your modules around your installation as you wish. If you have dar
k spots, you can reposition at will. Module strings can be easily linked at the beginning or end.

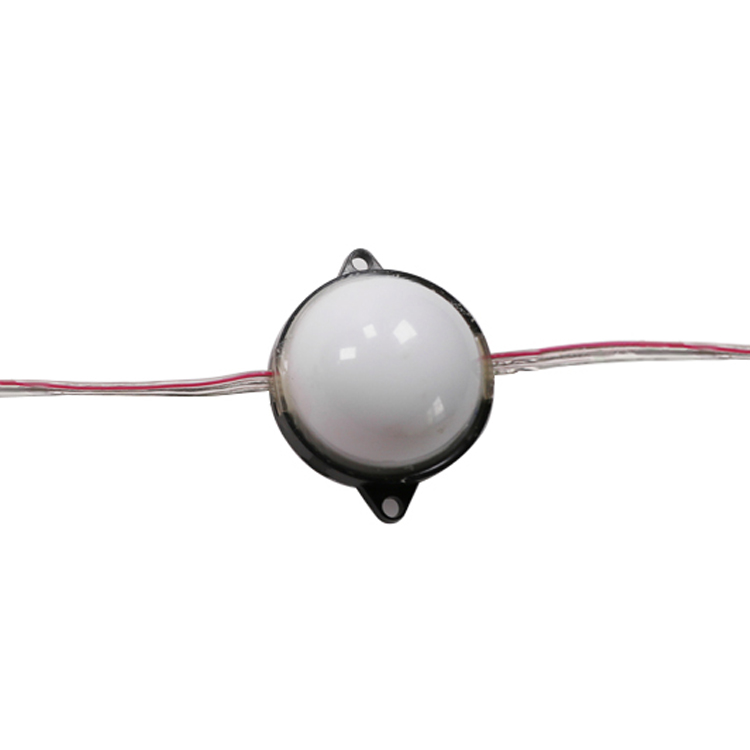

Milky diffused plastic dome, 50 mm in diameter.
Black base, screw holes on two sides.

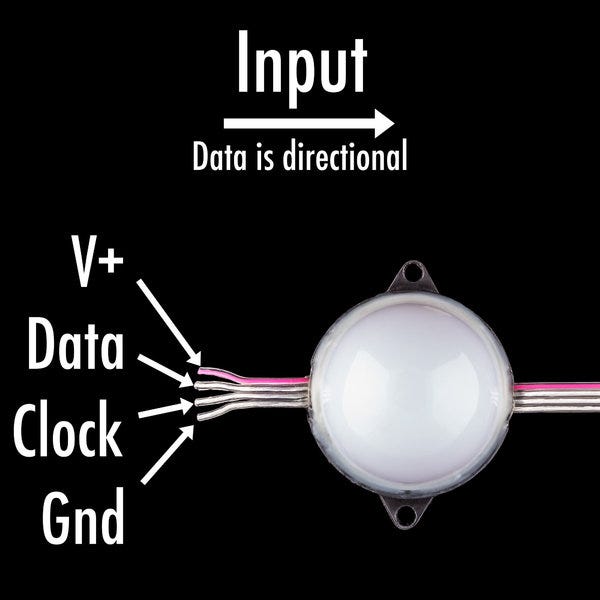

Inputs: GND, DI, CI, +12V

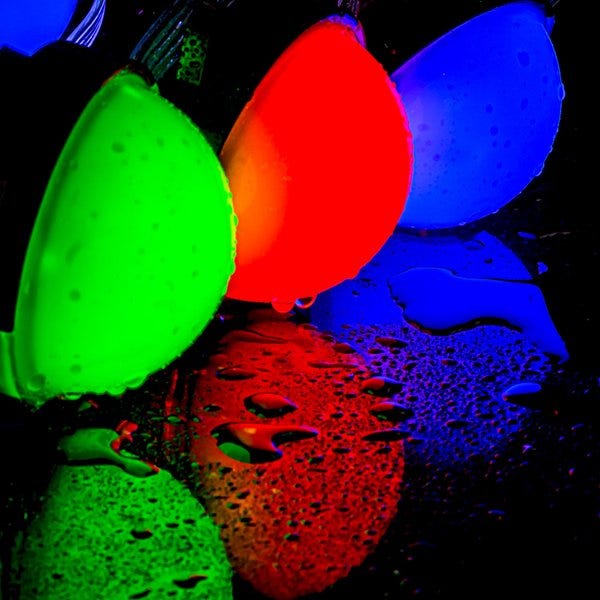

Red, Green, Blue (623/522/472 nm wavelength.)
IP65 waterproof.
12V DC~0.72W for 3leds module , 24V DC~1.44W for 6leds module
Cuttable between modules.
RoHS, IP65.
Uses WS2801 IC.
50,000 hours expected lifetime.
Warranty: 3 years limited.
No Ultra-Violet emissions, so it won't harm your art or documents.
We use high quality LEDs for maximum color vibrancy, longevity and color rendering. We pay more for our LED components, and you'll benefit from the difference. This is not a commodity product. Quality matters, and the materials, controls, connections and tech support we provide will make your project successful.
We provide detailed installation instructions, design criteria and technical support upon request.
When wiring Pixel Dome Modules we recommend injecting power every 20 modules. This significantly reduces any voltage drop problems over the line that would lead to reduced flux far from the driver. Simply use the power injector plugs to apply power every 20 domes for best results.
