MINI 3D Full Color RGB Pixel LED Curtain Light

Home > Products > LED Pixel Light > MINI 3D Full Color RGB Pixel LED Curtain Light

MINI 3D Full Color RGB Pixel LED Curtain Light

P/N : ZH3015V12

DC12V , 0.48Watt each light .

SMD3535 RGB LED Lighting resource

UCS1903 IC chip

Standard 10cm cable length between each light

20pcs/ chain , waterproof IP67

Can be usd in shopping mall , Club , square , Art building and etc .


Product Description

This rgb pixel led is designed for pixel curtain light , no need drill any hole for installation , hang directly from up side to down , Crystal clear outside shell for bright lighting outlet .

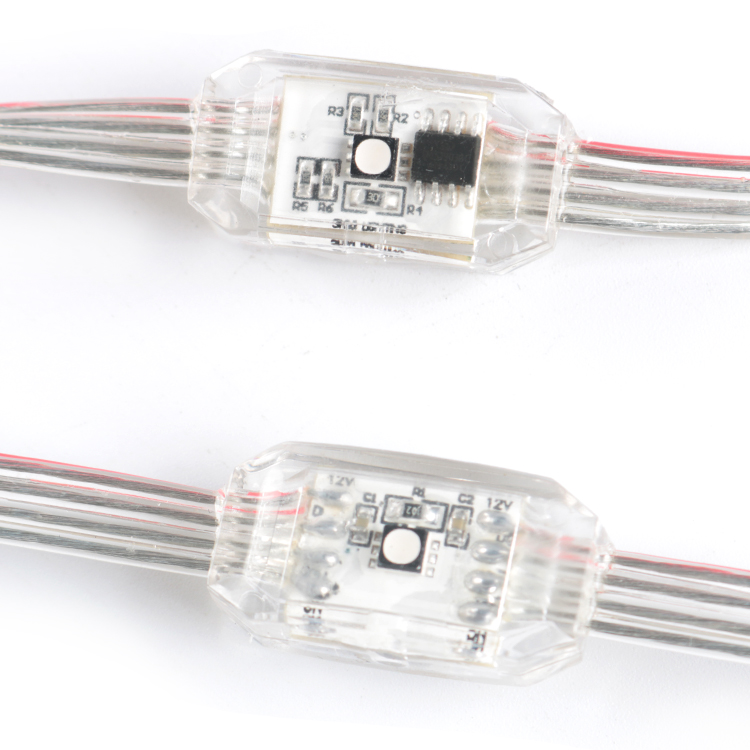

SMD3535 RGB LEDs built on both side of the PCBs to make 360 degree viewing .


IC chip ucs1903 make each light is individually addressable controlled .


DC12V , 0.48watt per light , standard 50pcs per string , each string with two waterproof connectors that male end signal input , female end signal output end  .


You can chain lots of strings together as long as they are in range of the controller's max support , power should be split and applied to each strand .


They're sealed with silicon gel (IP66), making them weatherproof for outdoor use. IP68 is available to do , with the waterproof connector.


Part NO

ZH3015V12

Lighting Source

SMD3535 RGB LED Light

Voltage

DC12V

Consumption

0.48W

IC Chip

UCS1903

Color

RGB Pixel

Pixels/string

To be defined ~ 50pixels /string

LEDs Size

30*15mm

IP Rate

IP65

Operation Temperature

-20~50
