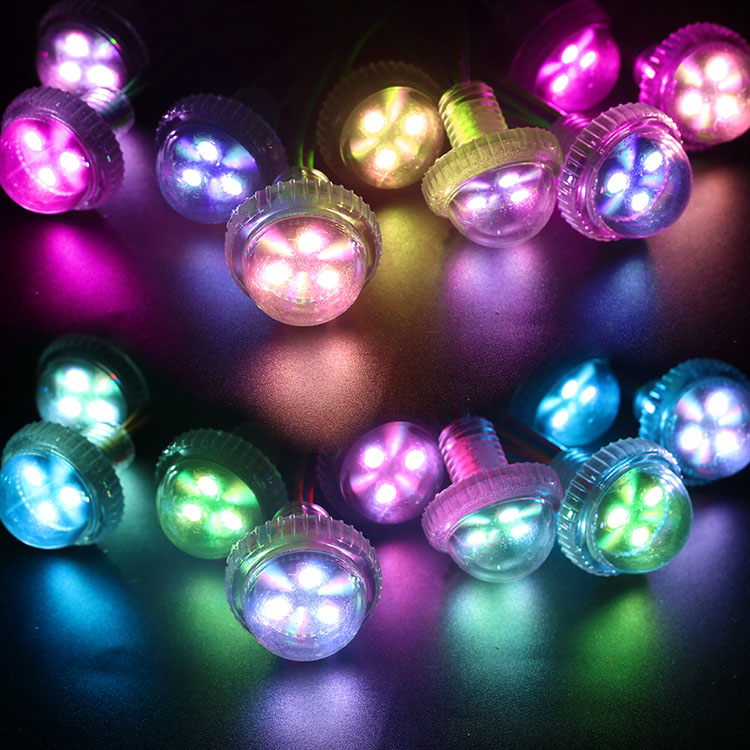

Digital LED Pixel Clear / Opal 12V 3-LEDs UCS1903 32mm

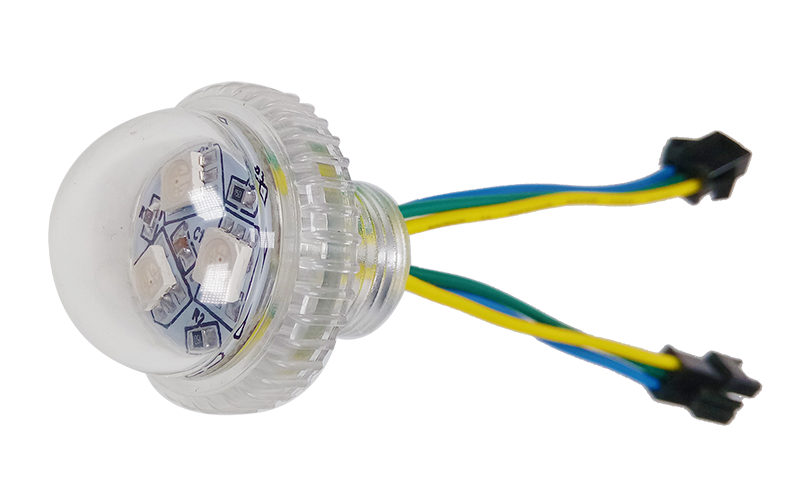

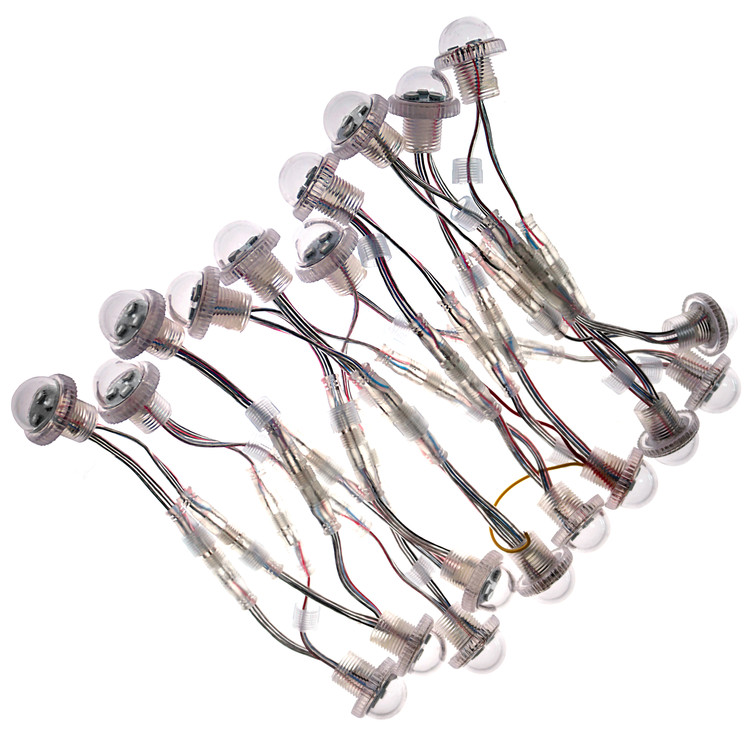

These 32mm ucs1903 LED pixels are attached to a string with connectors between the pixels. Each LED Pixel contains 3 pieces SMD5050 LEDs and the power supply is 12V. Each led pixel is individually addressable control  , colorful change and can be set into any animation working together with the controllers .

The LED Pixels are mounting by stabbing it through the hole and on the back screw the matching LED pixel nut. Wire length to the 3-pin connector is 80mm.

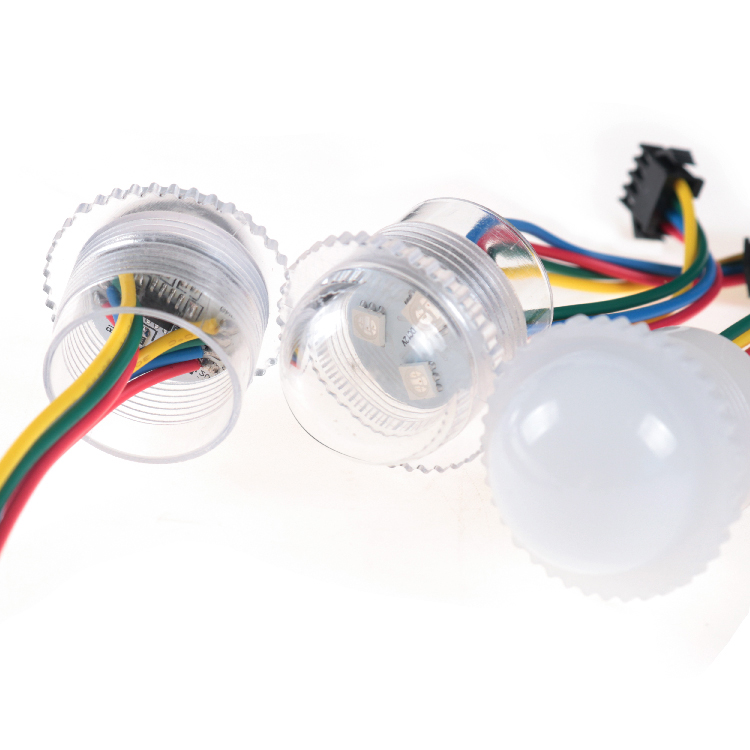

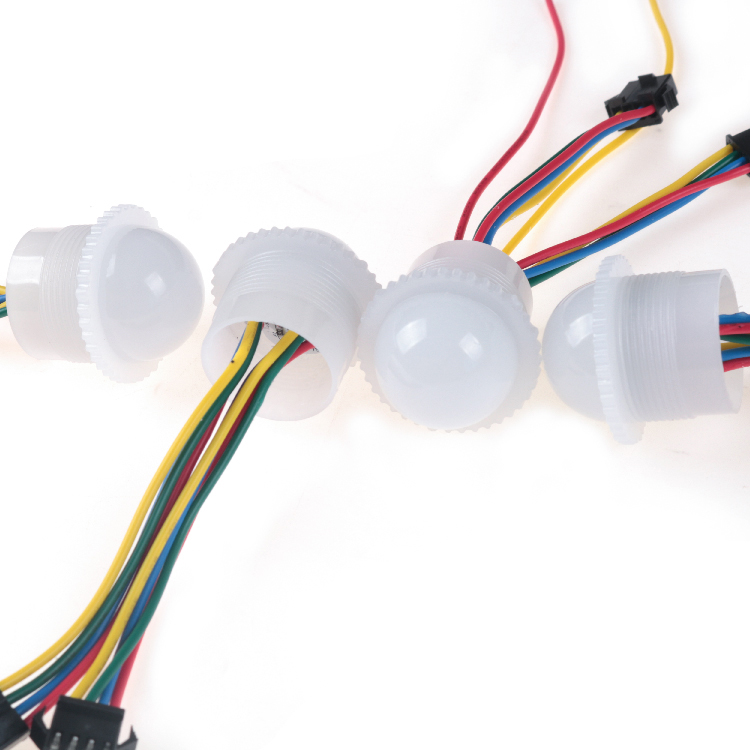

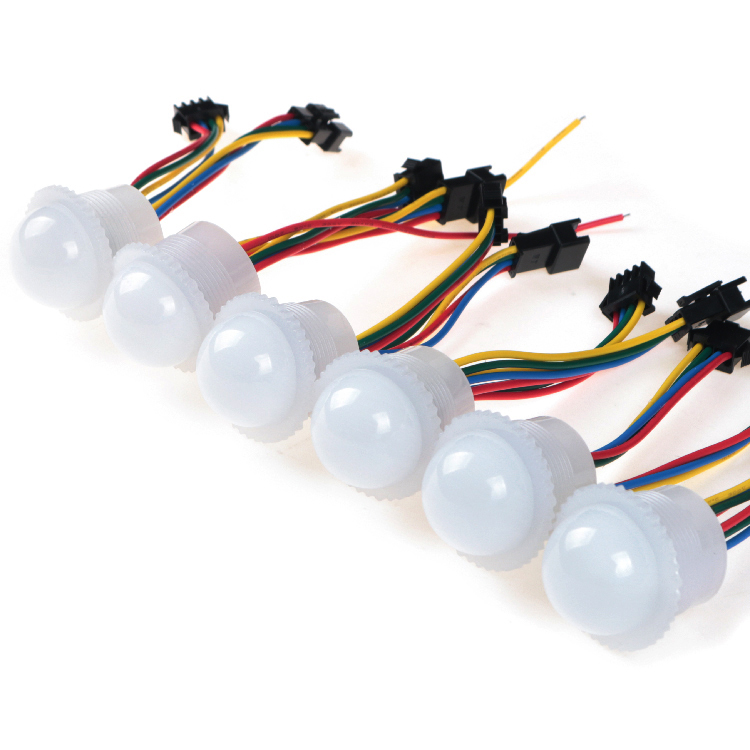

Each led pixel shell can be clear or milky white /opal color , the thread size on the back side of led pixel can be 14mm , 19mm or the 26mm , it it based on the hole size .

Technical specifications

LED Type                 SMD5050 RGB

Light colorRGB full color

Voltage                    DC12V

Wattage                   0.72watt

Luminous Flux100 lm

Beam angle180 °

Operating temperature-25 ~ +70 °

Warranty                2 years

IC Chip                   UCS1903

IP grade                  IP65 with JST SM connector / IP67 with strong waterproof connector
