DC24V/48V 40mm RGBW LED Permanent Christmas Light

DC24V/48V 40mm RGBW LED Permanent Christmas Light

P/N : H40DPW

40MM diameter

6pcs smd5050 RGBW LED Lights

UCS2904 /TM1814 IC chip

DC24V or 48V voltage working

1.92W per bulb light

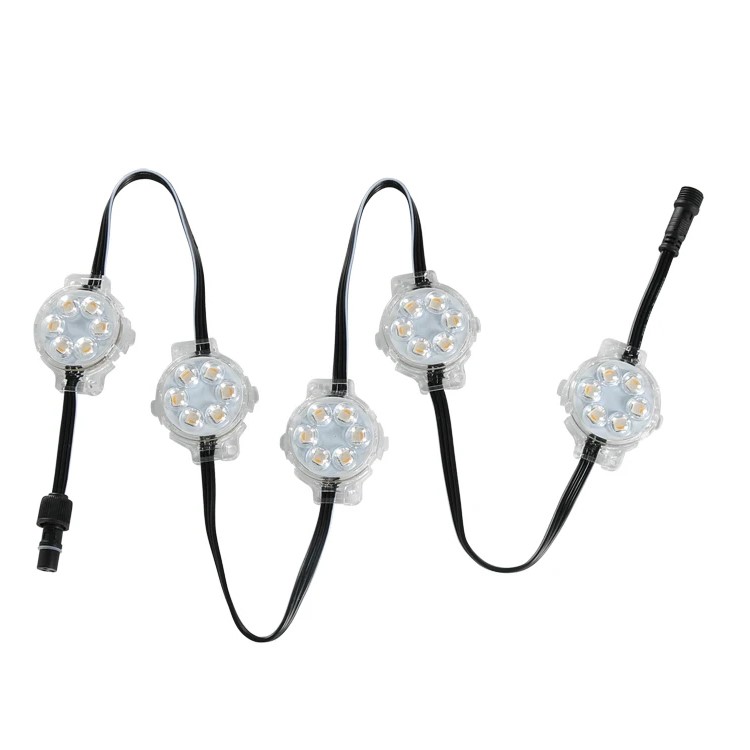

5pcs per chain , or customized .

WIFI / BT APP controller / sd card controller and etc .

Product Description

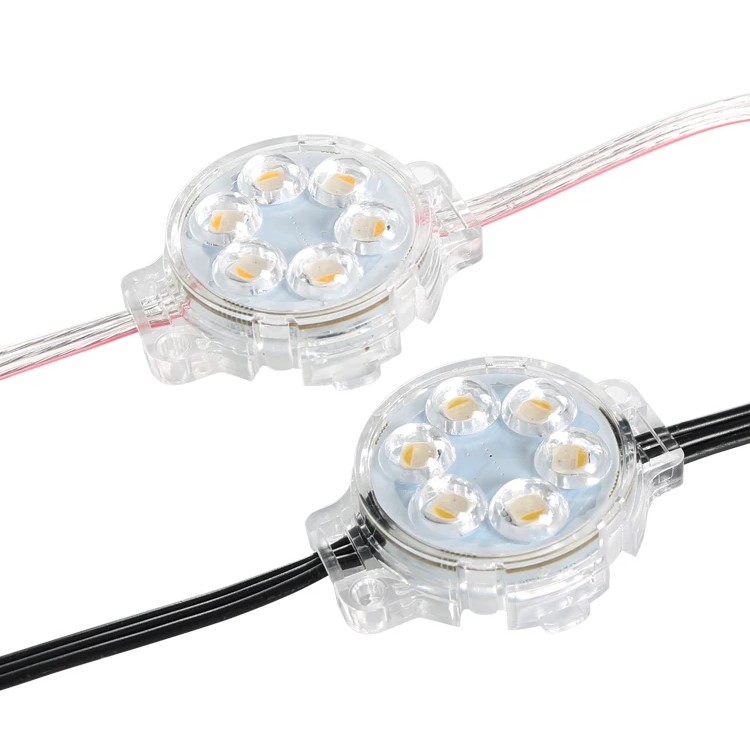

Each bulb/ pixel contains 6pcs smd5050 RGBW LEDs along with a dedicated UCS2904 control chip.

All of the LEDs are controlled at once so you cannot have one bulb/ pixel with the six LEDs different colors. (Color control is per single dot 6-LED pixel only) .

The outside shell can be lens / flat transparent / dome transparent types .

We have DC24V and DC48V voltage optional to meet kinds of length requirements .

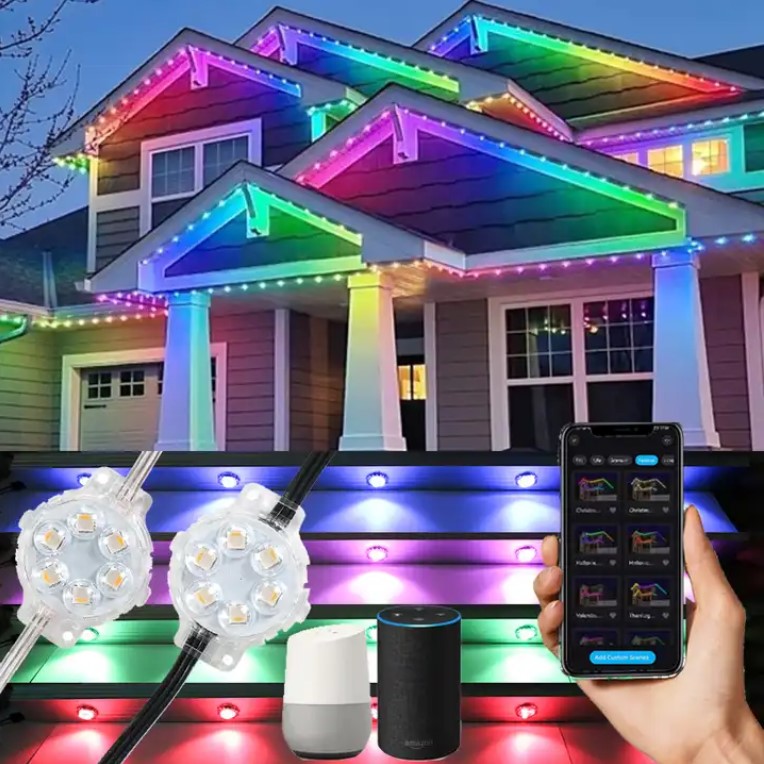

It can be installed by screws  , as well as by aluminum track / trim - track color can be customized .

Part NO : H40DPW
VoltageDC24VDC48V
Wattage 1.92watt1.92watt
IP Rate IP67IP67
IC chipUCS2904/TM1814UCS2904/TM1814
LEDs qty/bulb 6pcs smd5050 RGBW6pcs smd5050 RGBW

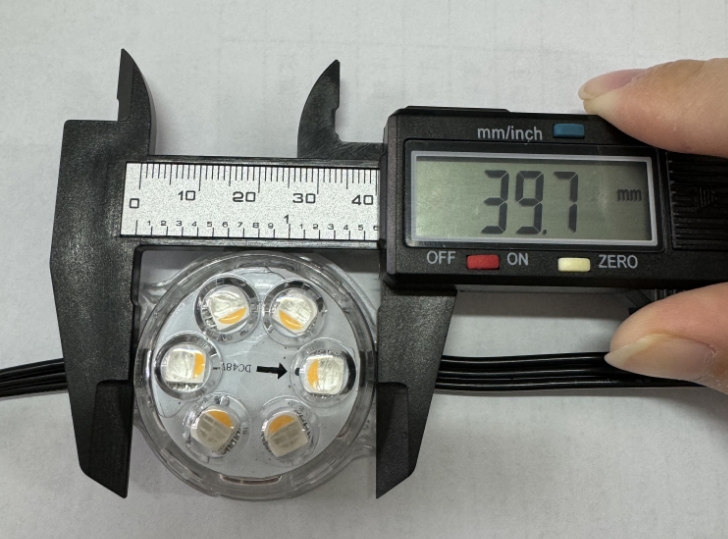

Diameter 40mm40mm
Color RGB full color controllable rgb full color controllable
Wire length
Customized Customized

DimensionDC24V/48V 40mm RGBW LED Permanent Christmas LightDC24V/48V 40mm RGBW LED Permanent Christmas Light
