60MM 45MM Cabochon E14 RGB LED Pixel Turbo Light

Home > Products > LED Pixel Light > 60MM 45MM Cabochon E14 RGB LED Pixel Turbo Light

60MM 45MM Cabochon E14 RGB LED Pixel Turbo Light

60mm or 45mm size

360 degree viewing

DC24V low voltage

Waterproof IP65 or IP67

UCS1903 IC chip

Each separated by one pair connectors

18mm thread side , drilling hole 19-25mm


Product Description

The Cabochon E14 rgb led Funfair pixel light is the upgrade version of our hot-sell amusement led pixel lights.Much bigger, much brighter, but smaller drill hole size.

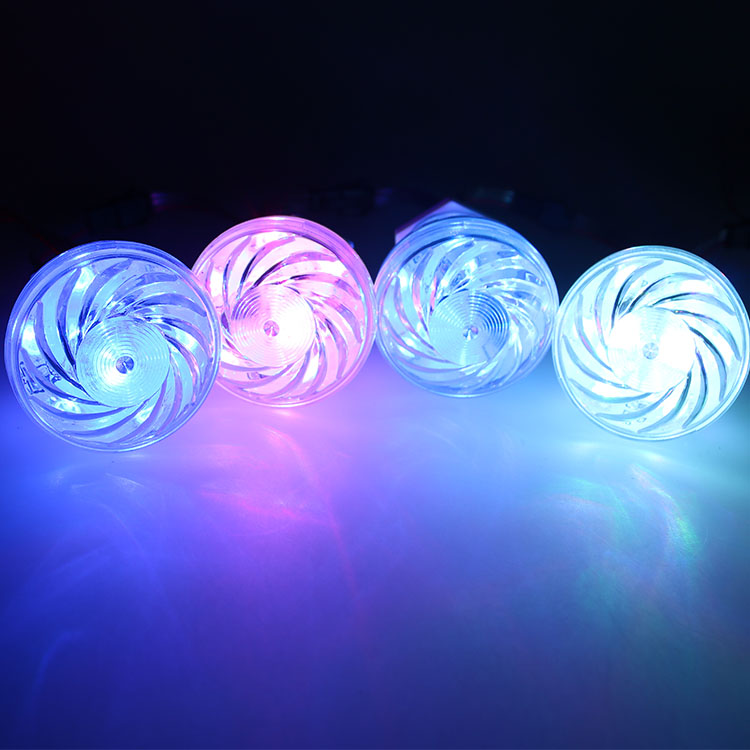

This turbo light is 360 degree lighting that front side has 12pcs or 8pcs smd5050 rgb leds , and back side 6 or 4 pcs smd5050 rgb leds . clear cover , the front shell can be Spiral pattern or Vertical pattern .

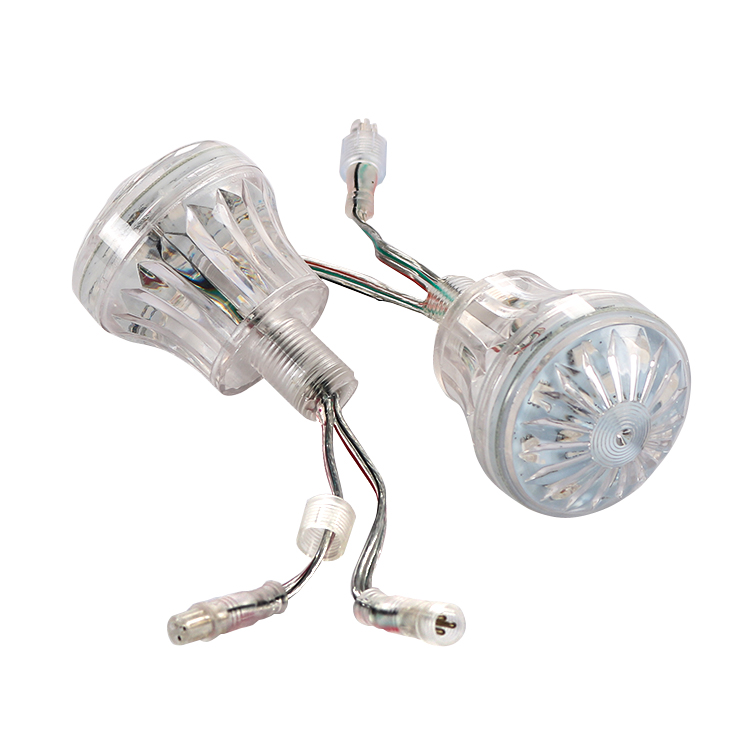

The Turbo rgb led Funfair pixel light is individually piece, IP65 has two 3pin JST-SM conductor cables contains 1 JST-SM 3pin output side and 1 JST-SM 3pin input side , stronger IP67 is waterproof connector .

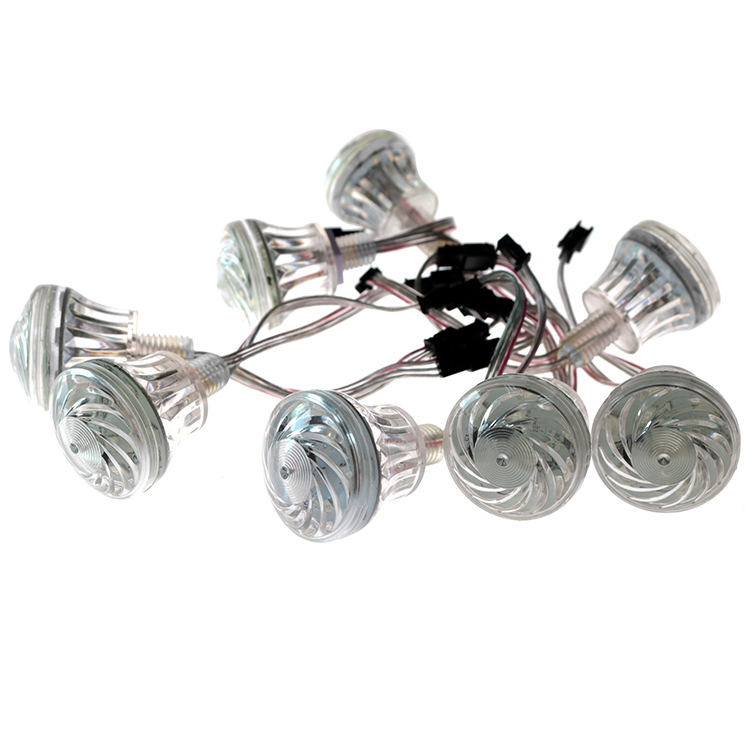

Thanks to the connectors, multiple Turbo rgb led Funfair pixel light could be chained, as many as you wish, just watch for how much current they need.



When linking multiple Turbo rgb led Funfair pixel light together, power should be split and applied to each strand.We recommend connect up to 20 pcs of pixels leds in a series for better use.



They're sealed with silicon gel (IP66), making them weatherproof for outdoor use.



Part NO

ZH4512V24

ZH6018V24

LEDs size

45mm

60mm

Lighting Source

SMD5050 RGB LED Light

Voltage

DC24V

LEDs qty / pcs

12leds, front side 8, back side 4

18leds , front side 12 , back side 6

Consumption

2.88w

4.32w

IC Chip

UCS1903

Color

RGB Pixel Controlled


Pixels/string

To be defined ~ 20pixels /string standard

IP Rate

IP65 or IP67

O.T

-20~50
