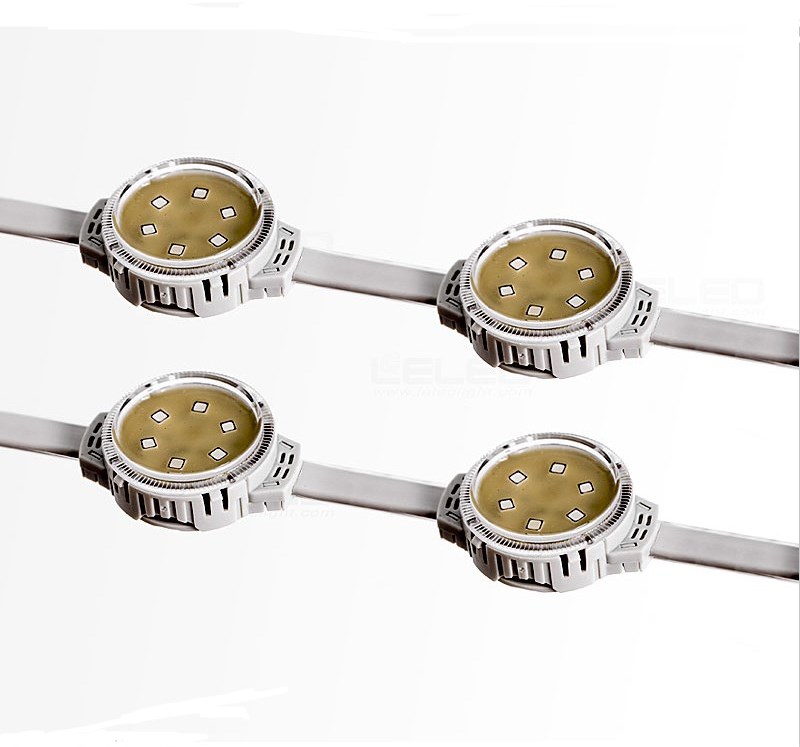

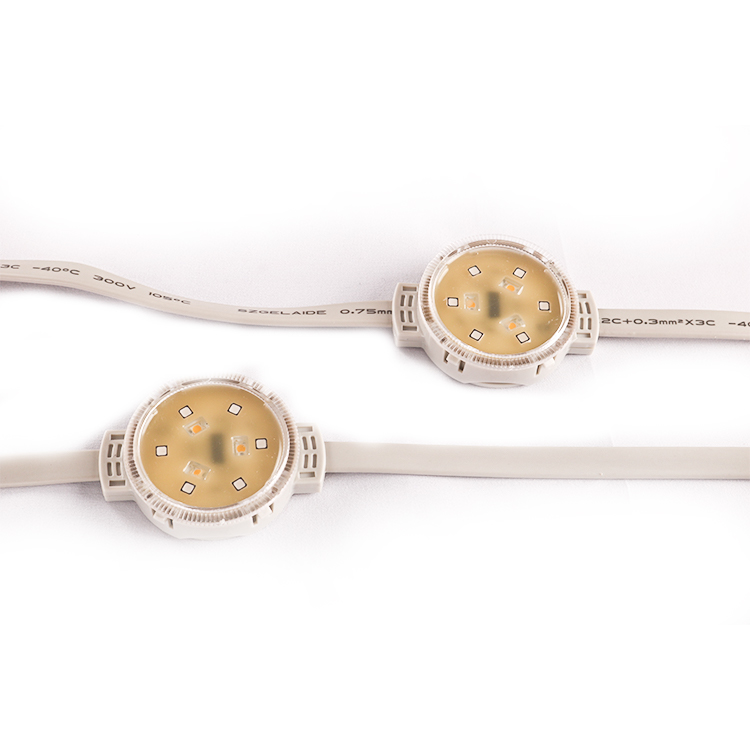

50mm Smart RGB LED Pixel Modules Dot Lighting
Home > Products > LED Pixel Light > 50mm Smart RGB LED Pixel Modules Dot Lighting
P/N : ZH50DICRGB24V
50MM diameter
6pcs smd5050 RGB LED Lights
UCS1903 IC chip
DC24V 1.44watt max when full brightness
Strong waterproof can be used outdoor IP67
20pcs per string , 15cm cable length between each led
Product Description
Waterproof RGB Addressable LED Pixel Module Dot Light used as building façade lighting, upscale bars, stage background, large advertising sign and many other lighting projects .
Use good quality LED chip, uniform color, higher brightness , longer life time .
High standard aging test. Protection grade IP68, with outdoor waterproof features, and long service life.
Part Number | ZH50DICRGB24V |
Diameter | 50mm |
LED type | SMD5050 RGB or single color LED |
IC chip | UCS1903 |
LED’s Qty | 6pcs smd5050 RGB LED |
Voltage | DC24V |
Power Consumption | 1.44watt |
Beam Angle | 120 degree |
Life Span | 50000 hours |
Installation Method | Steel wire installation/Surface-mounted |
Certification | CE mark, Rohs mark |
Working Temperature | -20 ℃ ~ +60 ℃ |
