45MM 6/9LEDs RGB Pixel Light
Home > Products > LED Pixel Light > 45MM 6/9LEDs RGB Pixel Light
45mm diameter rgb led pixel light
19mm tail thread size - drilling hole 19mm for installation
DC12V/24V, 1.44watt/2.16watt
6pcs /9pcs smd5050 rgb led chip
UCS1903/GS8206 IC chip
Strong waterproof rate IP67 for outdoor using
Product Description

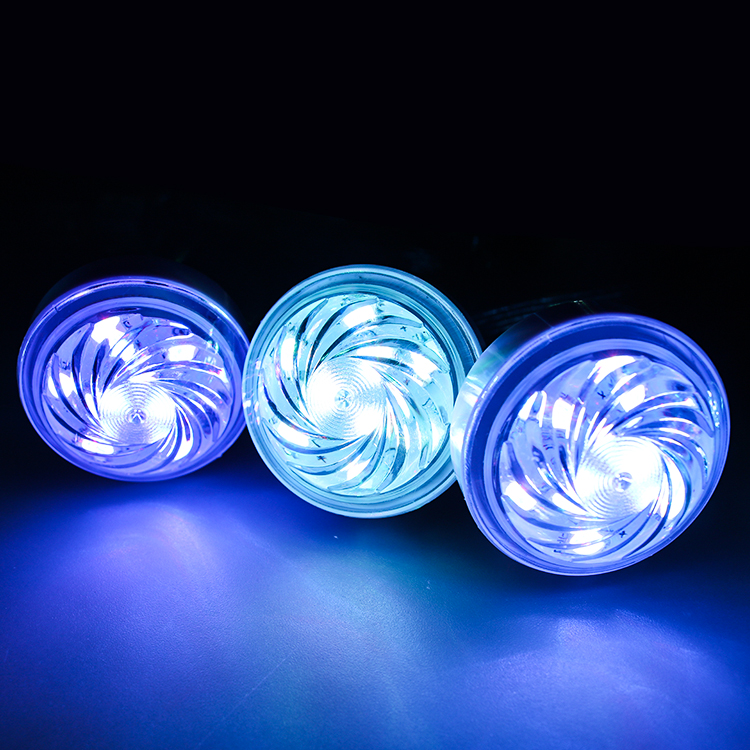

45mm rgb led pixel light, individually addressable pixel control light, each piece has IC chip ucs1903 or gs8206.

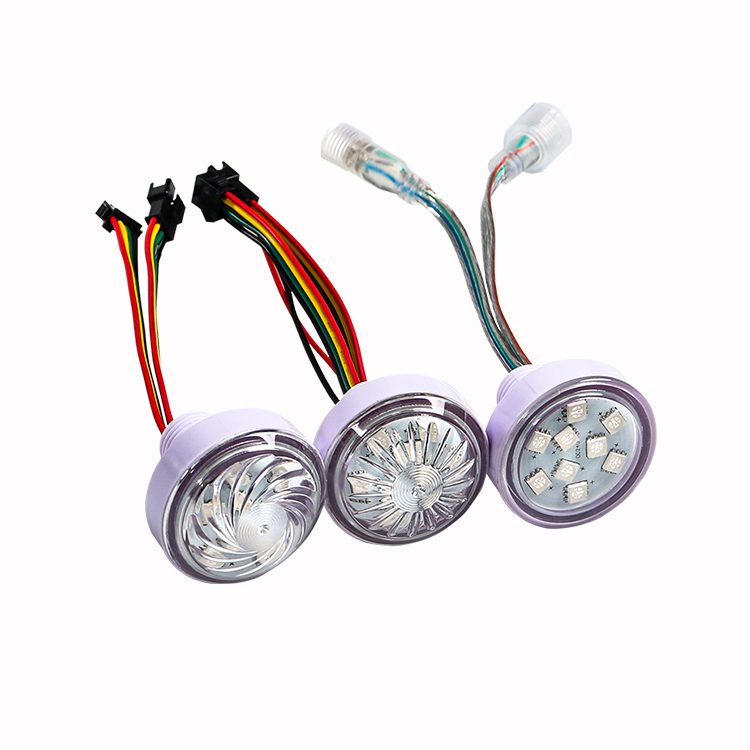

The 45mm rgb pixel led light each piece has two 3pin conductor connectors contains 1pcs 3pin date/power output side and 1pcs 3pin date/power input side. Waterproof rating IP65 with non-waterproof JST-SM connector. IP67 with transparent strong waterproof round connector.
As the connectors, 45mm rgb pixel led light could be easily chained as much as you wish, just take care how much current they need, make sure power feeding is enough.
When linking multiple 45mm rgb led pixel light together, power should be split and applied to each strand.We recommend connect up to 20 pcs of 45mm pixels leds in a series for better use.
They're sealed with silicon gel (IP66) back side, making them weatherproof for outdoor use.
P/N | Dot Diameter | Thread size | VCC | Wattage | IC chip | LEDs Qty | IP Grade | Light Angle | Working Temperature |
H45DICRGB-6 | 45mm | 19mm | DC12V/DC24V | 1.44watt | UCS1903/GS8206 | 6 LEDs | IP65/67 | 120 degree | -20~50℃ |
H45DICRGB-9 | 45mm | 19mm | DC12V/DC24V | 2.16watt | UCS1903/GS8206 | 9LEDs | IP65/67 | 120 degree | -20~50℃ |

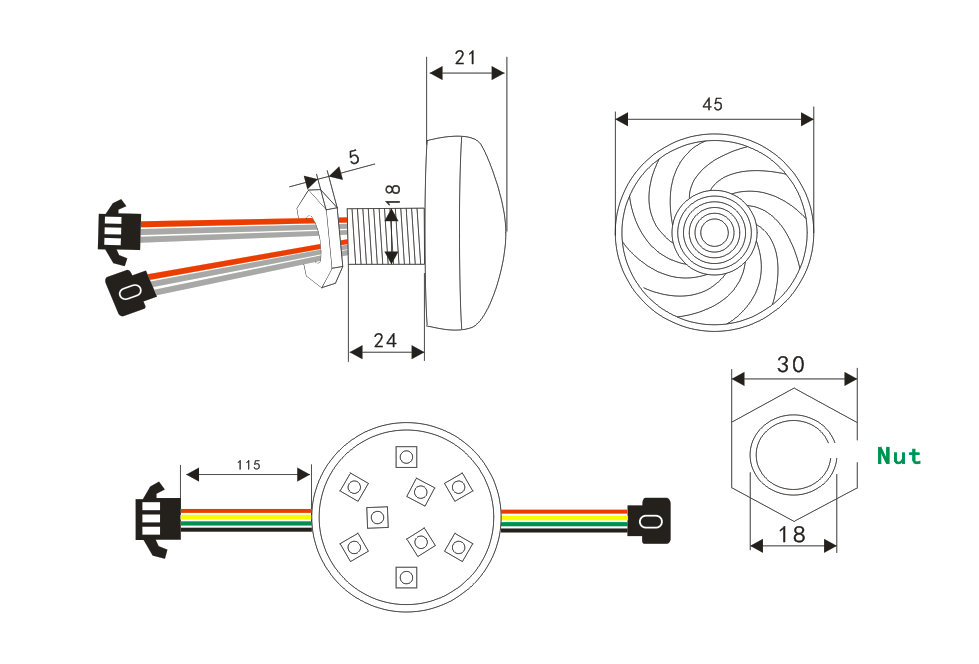

Dimension
