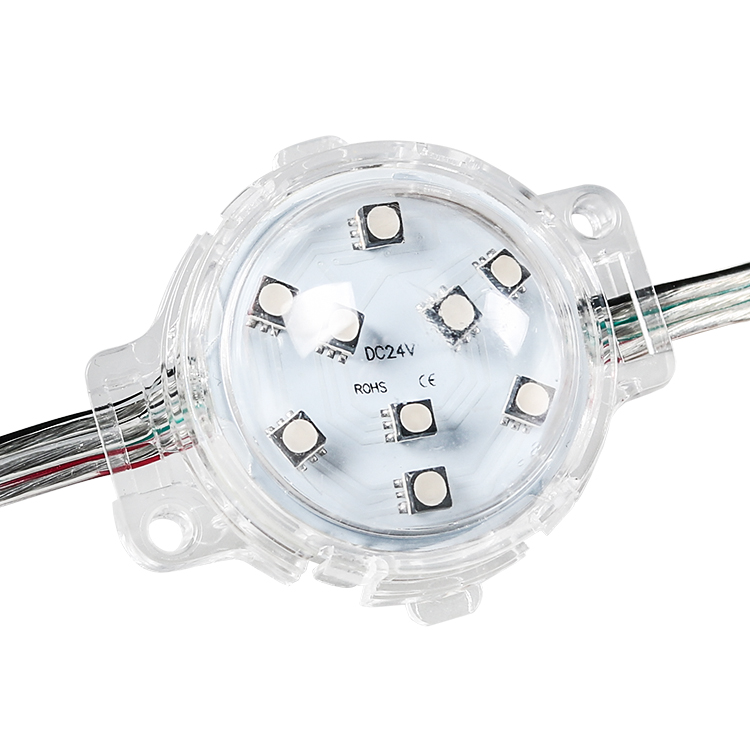

40MM Steel Cable RGB Pixel LED Dot Light

High brightness smd3535 RGB LED diode

40mm diameter

DC24V 2.16watt

Clear dome cover

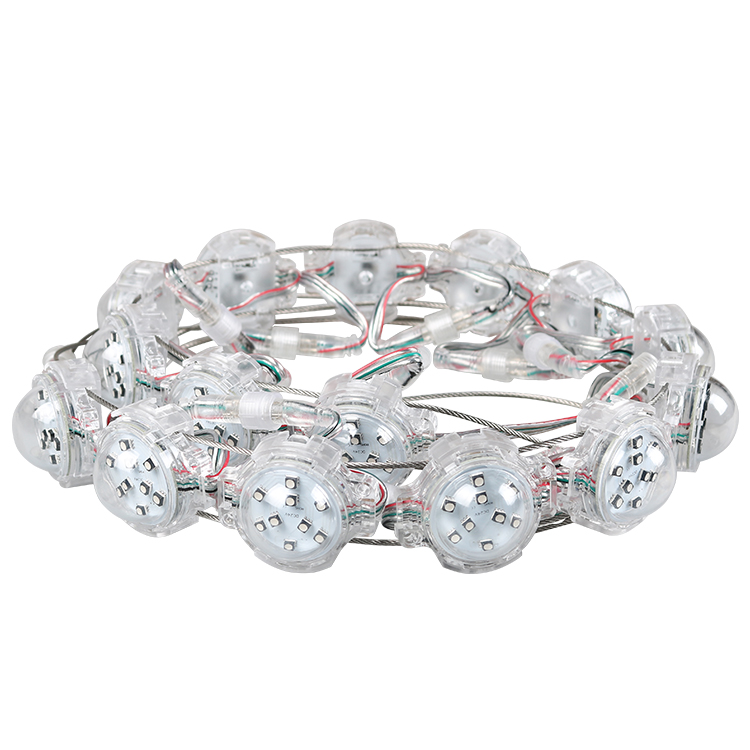

Steel cable for installation

SD card controller, DMX controller, decoder, Arduino and so on.

Product Description

Drilling hole for installation?

No, 40mm pixel light can be installed through steel cable.

you just hang them from top to bottom and fix the both end to avoid shaking a lot.

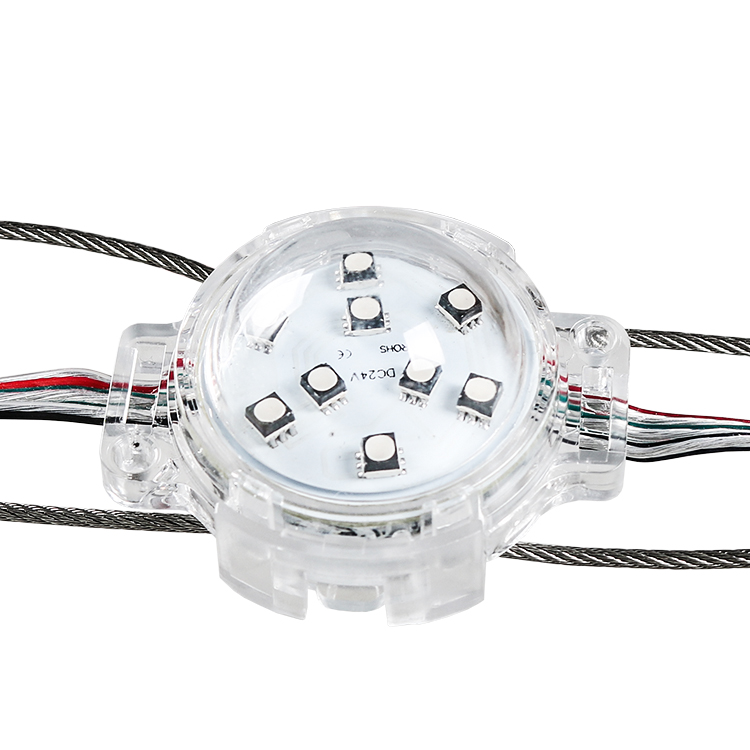

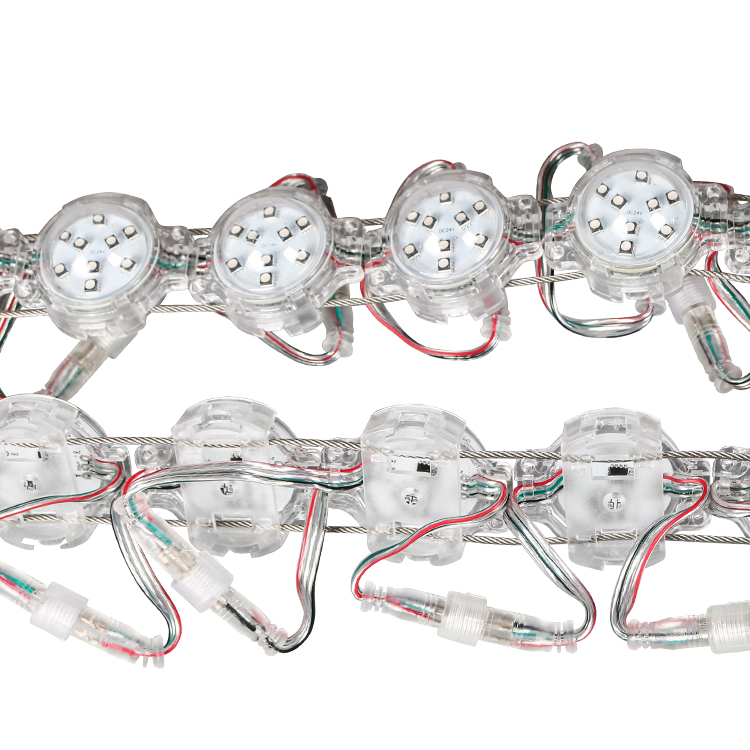

Each 40mm rgb led pixel has two clips to stuck tight the steel wire, the waterproof connector go out from the back side of the dot, not the edge of the dot, it makes the 40mm pixels can be bound together without gaps, it would be a good choice if you need a high density pixel solution.


40mm rgb pixel led light is the indiviually addressable pixel control dot light, programmable full color, each dot build with drive IC chip on PCB.

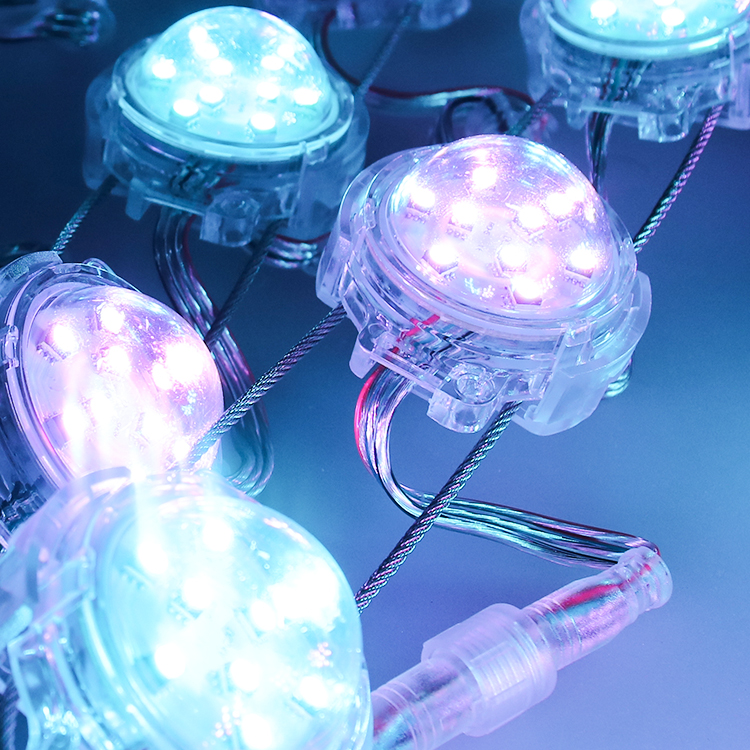

40mm pixel RGB led light is strong waterproof, high brightness with 9pcs smd3535 rgb leds, easy installation, widly used in building decoration.


P/NZH40D9E24V
Lighting source9pcs smd3535 RGB LEDs
VoltDC24V
Wattage2.16watt
Diameter40mm
IC chipUCS1903
IP GradeWaterproof IP68
Working hours50000 hours
Working Temperature-20~50°C
Store temperature-20~60°C
Steel wire size2mm
