40mm DMX512 Dome RGBW Pixel Strings Module LED Dot Lights

Home > Products > LED Pixel Light > 40mm DMX512 Dome RGBW Pixel Strings Module LED Dot Lights

40mm DMX512 Dome RGBW Pixel Strings Module LED Dot Lights

Part Number : ZH-406DMXRGBW


Full color rgbw pixel strings module led dot lights for :

building facade lighting

upscale bars

stage background

large advertising sign


Product Description

Full color led pixel dot light is used for arenas, bars, overpass guardrail, highway, outline of the building, etc..

Standard DMX512 protocol. Each pixel individually control. Completely compatible with Artnet and Madrix.

Selection of imported LED Chip, The default is Epistar LED or OSRAM LED, Reduce the attenuation of light, Improve the service life of LED pixel dot lights.

Protection grade IP68, with outdoor waterproof features, and long service life.

Multiple installation method: Screw installation,Steel wire installation,Bracket installation, and can be installed by aluminum grooves, hidden wire integrally.

Flame and UV retardant material, full potting waterproof design, High light transmittance.


TECHNICAL DETAILS


LED LIGHTS POWER(W)        1.4W, Customizable


INPUT VOLTAGE(V)                DC24V


LIGHT IP RATING              IP68


BEAM ANGLE           120 Degree


AVERAGE LIFE       50000 hours


NUMBER OF LED PER STRING         Customizable


COLOR RENDERING INDEX (CRI)    Ra>85


DRIVER INCLUDED          Yes -UCS512 IC chip , standard DMX protocol / also can be customized in RGB SPI protocol


INSTALLATION METHOD   Bracket installation, Recessed installation, Steel wire installation, Surface-mounted


CERTIFICATION   CE mark, Rohs mark


LED LIGHT SOURCE           RGBW 4 IN ONE


WORKING TEMPERATURE ( ℃ )      -20 ℃ ~ +60 ℃

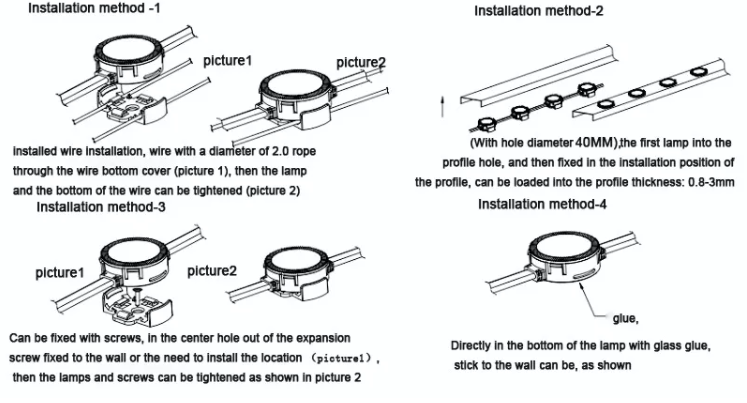

INSTLAATION METHOD
