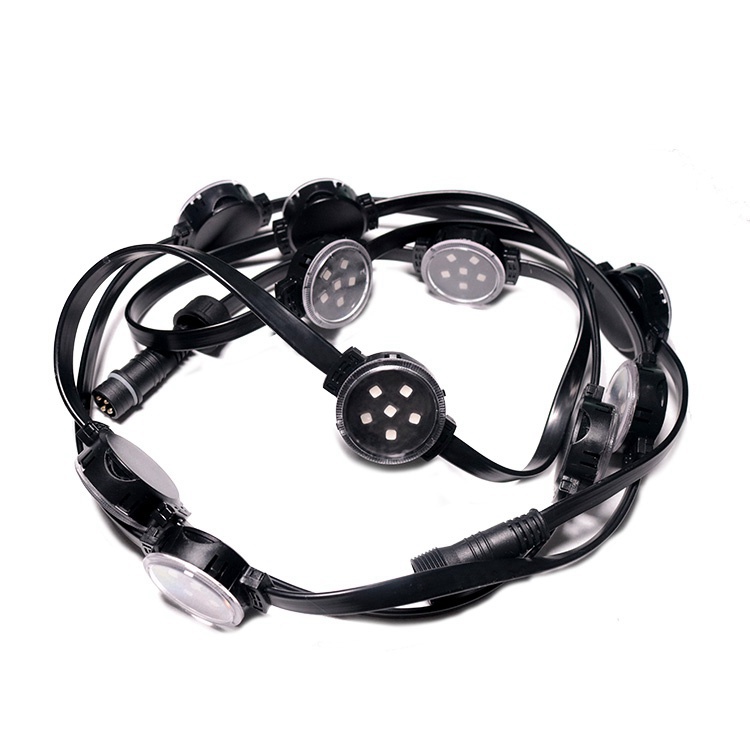

40MM 6LEDs RGB Pixel Dot LED String Light

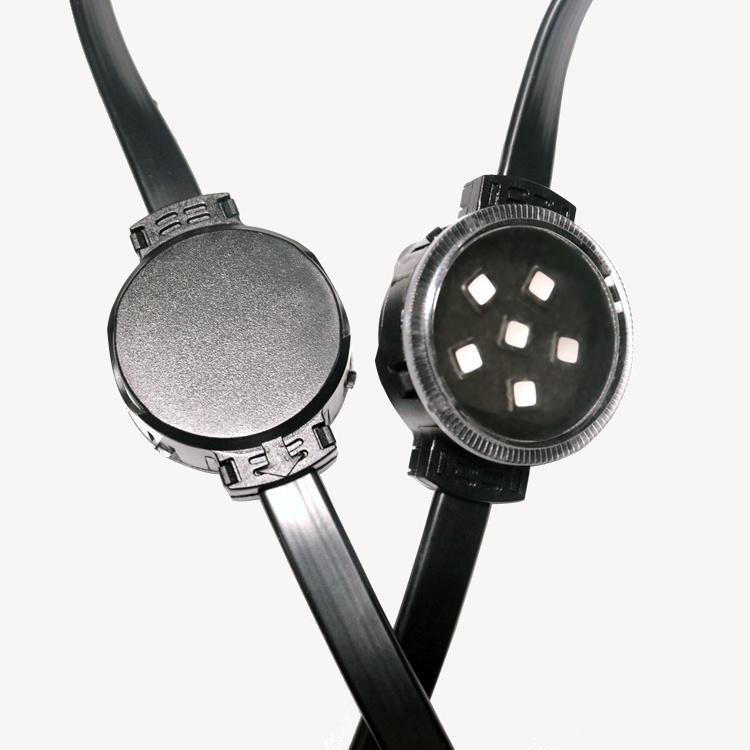

The 40mm 6leds RGB Pixel LED dot light, it has advantage that no need to drill hole to do installation, no need the iron plate, save the space, time and money.

The 40mm led pixel light, each pixel is with PVC deck, steel cable goes through the deck, and you can install them just based on the steel cable hang from upside to downside.

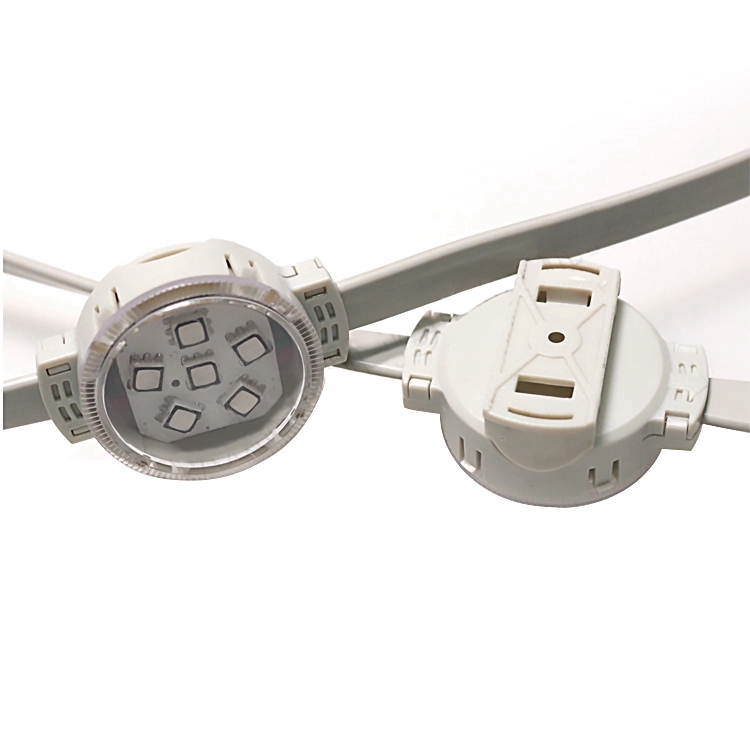

The 40mm pixel leds has 6pcs smd5050 waterproof rgb leds, the glue that covered on PCB can be clear, frosted, yellow or even the black, you can have one idea which match with the background.

Each light can be addressable control ,UCS1903 IC chip ,has two 3pin waterproof conductor cables contains 1 female 3pin output side and 1 male 3pin input side.

Thanks to the connectors, multiple these 40mm rgb led pixel light could be chained, as many as you wish, just watch for how much current they need.

When linking multiple 40mm rgb led pixel light together, power should be split and applied to each strand.We recommend connect up to 20 pcs of 40mm pixels leds in a series for better use.

Each 40mm pixel dot light sealed by glue, attached with the strong waterproof IP rating connectors that make them can be used outdoor.

To meet the different brightness requirements, as well as the size and voltage, we also developed some another different size 30mm only 3leds dc12v operating, as well as the 50mm diameter, but dc24v operating, and come with 7leds each dot pixel.

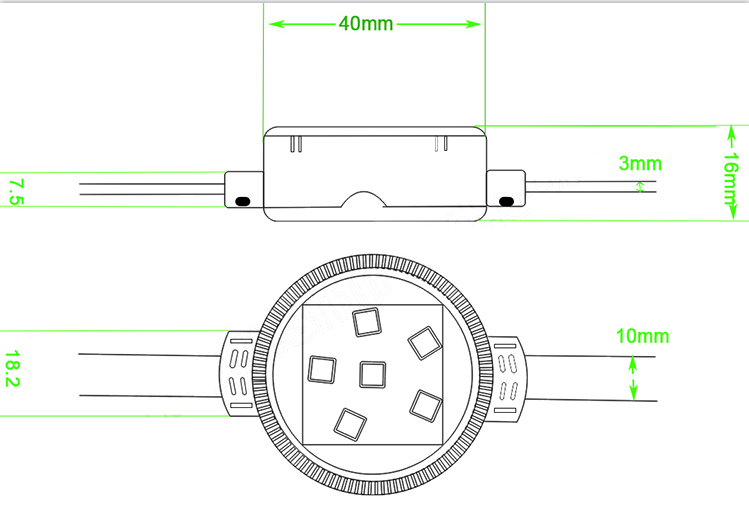

40MM OUTLINE
