36mm Square 12V Digital RGB LED Pixels Module

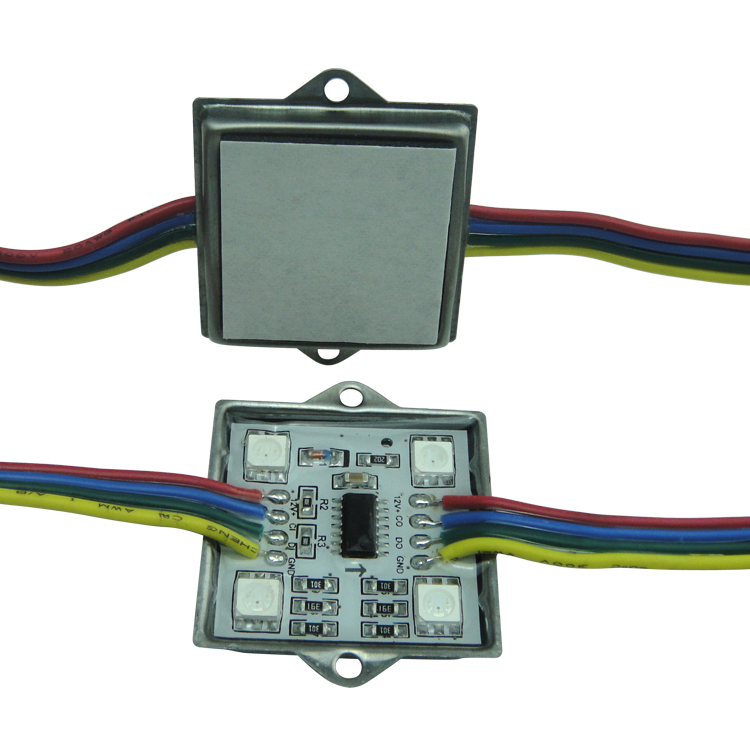

RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each metal 'pixel square' contains 4 RGB LEDs and a controller chip soldered to a PCB. The pixel is then 'flooded' with epoxy to make it water resistant, however we cannot say 100% waterproof you may need to apply additional epoxy for some applications/needs/use. These are fairly large pixels but they have a lot of nice mounting options, such as two metal flanges on the side and a 4mm diameter hole in the middle so you can screw them directly onto a surface. They're typically used to make outdoor signs.

The pixels are connected by a 4-conductor cable. +12VDC, ground, data and clock. Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 8-bit PWM LED driver (24-bit color for 16 million different shades). The pixels must be clocked by a microcontroller .

The pixels use 4 x 5050 RGB LEDs, with a 120 degree beam width. All of the LEDs are controlled at once so you cannot have one pixel with the four LEDs different colors. (Color control is per single square 4-LED pixel only) The total max brightness of all LEDs is about 6000mcd.

Standard each strand has 20 pixels in series! Each strand has two JST SM 4-pin connectors so you can connect multiple strands in a row, as many as you wish, just watch for how much current they want. The two power wires are brought out separately to make wiring easier .
