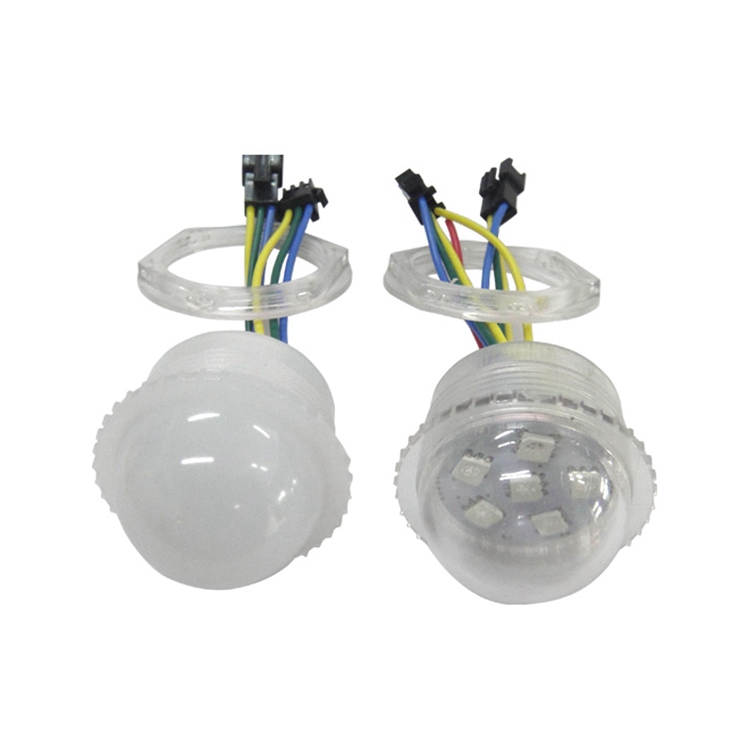

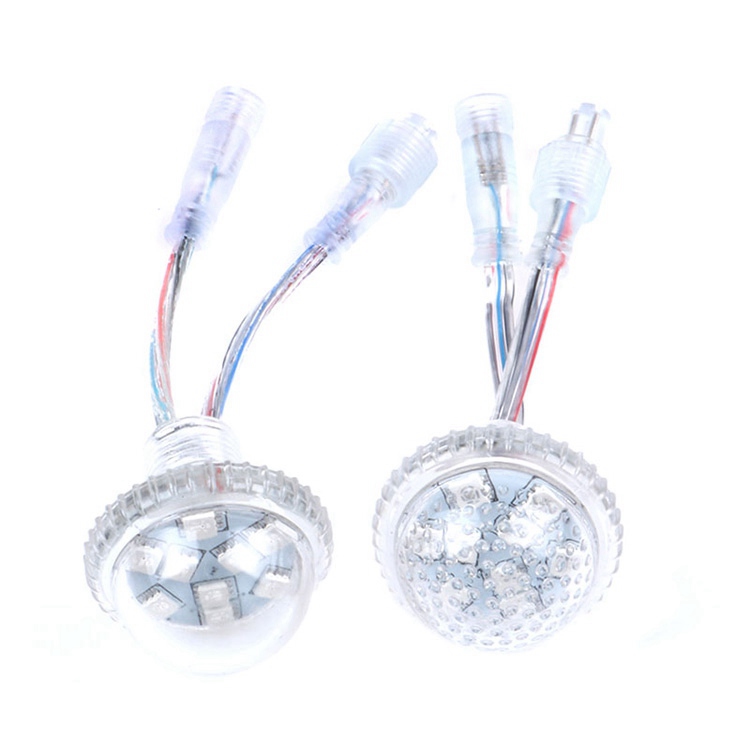

42MM 35MM RGB Pixel LED Dot Light

1. 35MM Pixel LEDs has several types based on different requirements on brightness, voltage and the size of tail thread for punching hole to install :

a. the cover you can choose milky white or transparent,even the newest raining point cover.

b. 6 leds in 1.44w, or 9leds in 2.16w max.

c. Voltage dc12v or 24v.

d. thread tail can be 35mm or 19mm.

2. It is individually digital control piece, each pixel has two 3pin separately cable connectors for signal input and output.  it can be come with one pair female/male JST SM connector for waterproof IP65; Or with strong waterproof connector IP68 for totally outdoor using.

3. When linking multiple leds together, power should be split and applied to each strand.We recommend connect up to 20pcs leds in a series and power feeding to avoid the voltage drop cause color difference.

4. Individually IC control pixel lights, operating by controllers, can be set in any color and any animation when lots of leds chain together.

5. Each pieces include a plastic screw nut for installation fixing.
