DC12/24/48V 30MM RGBW LED Dot Pixel Outdoor Permanent Light
Home > Products > LED Pixel Light > DC12/24/48V 30MM RGBW LED Dot Pixel Outdoor Permanent Light
P/N : ZH30DPW
30MM diameter
3pcs smd5050 RGBW LED Lights
UCS2904 IC chip
DC12V/24V/48V 0.96watt max when full brightness
5pcs per string , 20cm center distance between each led
WIFI / BT APP controller , sd card controller and etc .
Product Description
Each pixel contains three 5050 RGBW LEDs along with a dedicated UCS2904 controller chip.
All of the LEDs are controlled at once so you cannot have one pixel with the three LEDs different colors. (Color control is per single dot 3-LED pixel only) .

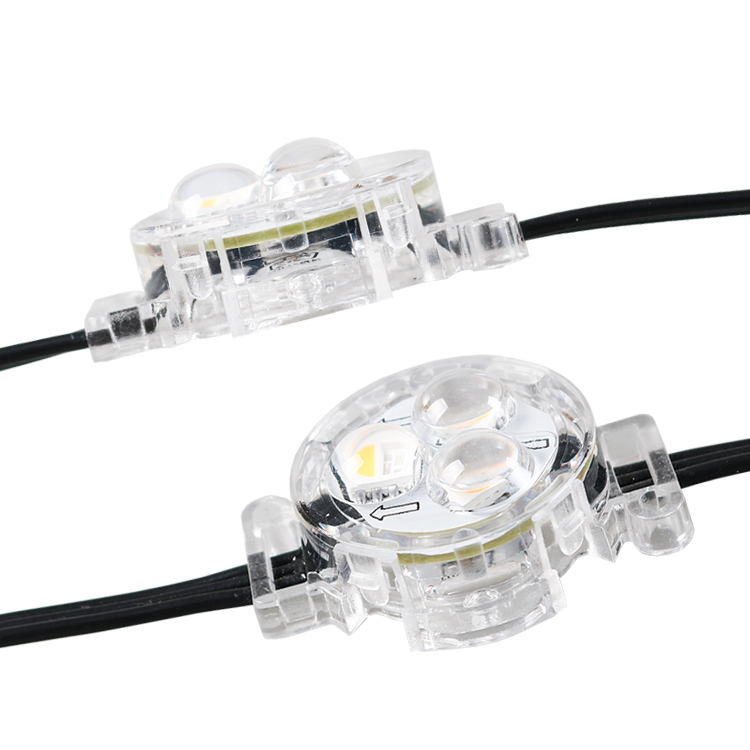

The outside shell can be lens / flat transparent / dome transparent types .
12v/24v/48v voltage , 12v is 16-20m need inject power , 24v is 18-22m need inject power , 48v is 50m need inject power .
| PART NO | P/N : ZH30DPW-12V | P/N : ZH30DPW-24V | P/N : ZH30DPW-48V |
| Diameter | 30mm size | 30mm size | 30mm size |
| Lighting source | smd5050 rgbw | smd5050 rgbw | smd5050 rgbw |
| IC chip | UCS2904/TM1814 | UCS2904/TM1814 | UCS2904/TM1814 |
| LEDs qty / bulb | 6pcs smd5050 rgbw | 6pcs smd5050 rgbw | 6pcs smd5050 rgbw |
| IP Rate | IP67 | IP67 | IP67 |
| Wattage | 0.96w | 0.96w | 0.96w |
| Voltage | DC12V | DC24V | DC48V |
