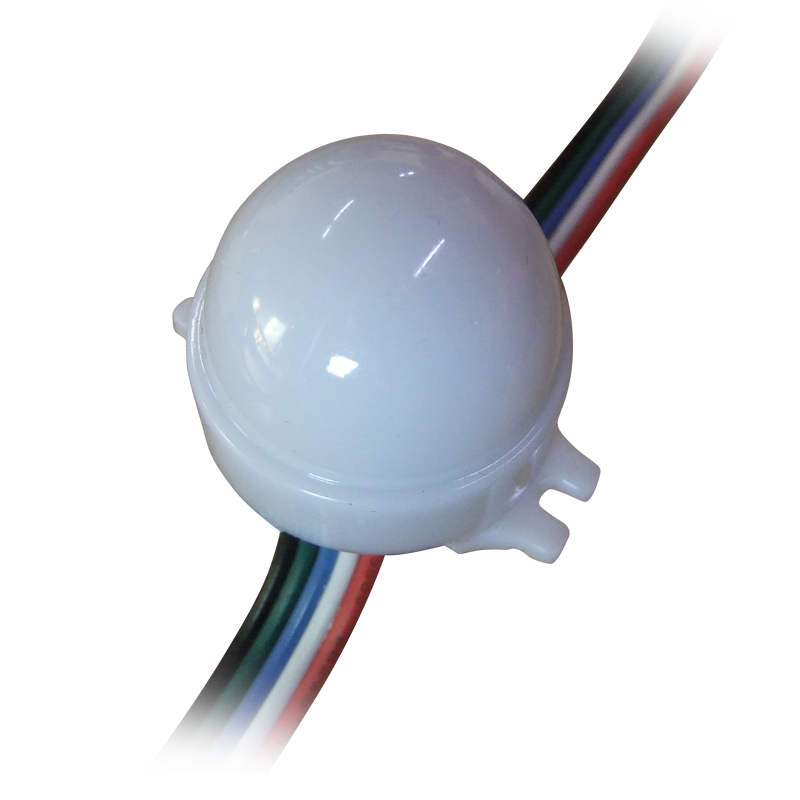

30mm Digital RGB LED Pixel Dome Light

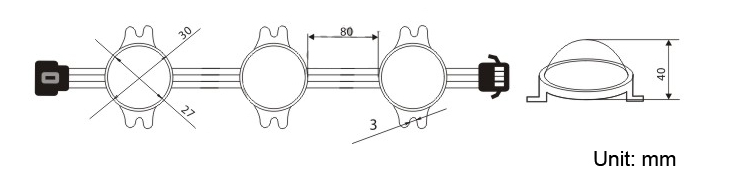

30mm diameter
80mm apart on the strand
Each pixel individually control. Control IC WS2801, UCS1903 and DMX512 optional.
12VDC input, 0.72W maximum per pixel (LED on full white)

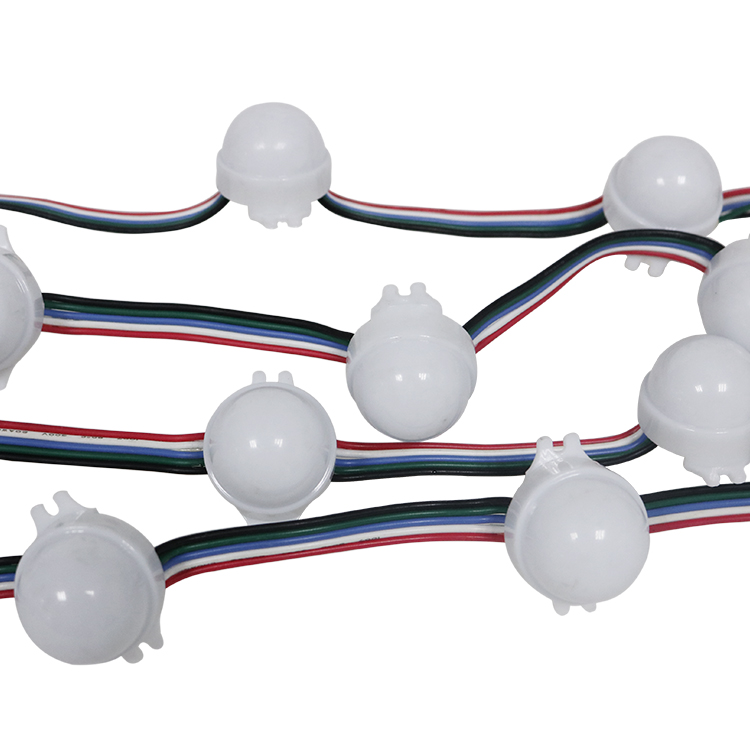

Each strand has 20 pixels in series!  8 cm space (standard length).
Each strand has two JST SM connectors.



Product Description

Each pixel contains three 5050 RGB LEDs along with a dedicated WS2801/UCS1903/DMX controller chip. All of the LEDs are controlled at once so you cannot have one pixel with the three LEDs different colors. (Color control is per single dot 3-LED pixel only) The total max brightness of all LEDs is about 4500mcd.


Part Number

ZH30ICRGB12V

Diameter

30mm-excluding mounting tabs and wires.

Lighting sourcing

Smd5050 RGB LEDs

Working Voltage

DC12V

LED QTY

3Pcs

IC chip

WS2801 UCS1903 DMX512 IC

LED view angle

180 degree

IP Grade

IP67

Emitting Color

RGB Pixel Control

Power Consumption

0.72w/pcs

O.T

-30~50
