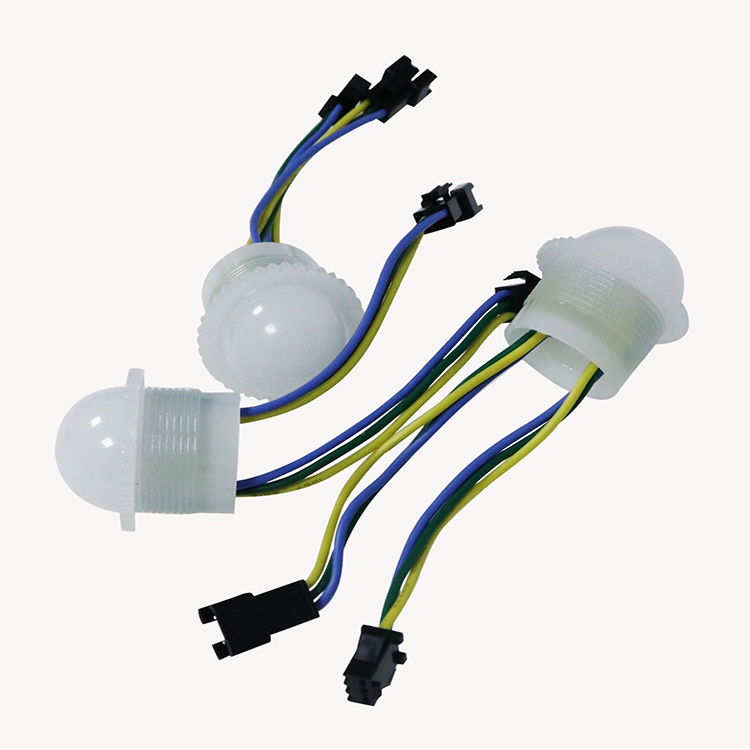

26MM RGB 12V/24V LED PIXEL DOT LIGHT
Home > Products > LED Pixel Light > 26MM RGB 12V/24V LED PIXEL DOT LIGHT
1. 26MM 3LEDs SMD5050 RGB Pixel Light
2. Trasparent / Frosted /Milky White cover
3. DC12V, 0.72W & DC24V 1.44W
4.UCS1903 IC chip
6. Every 20pcs contains 1 pcs pixel with power cable
7. waterproof connector is available to do
Product Description
1. Even it has been appeared many years, but it is popular / hot-sell always in market, especially in amusement market, i believe it is knew by any people who works on amusement parks.

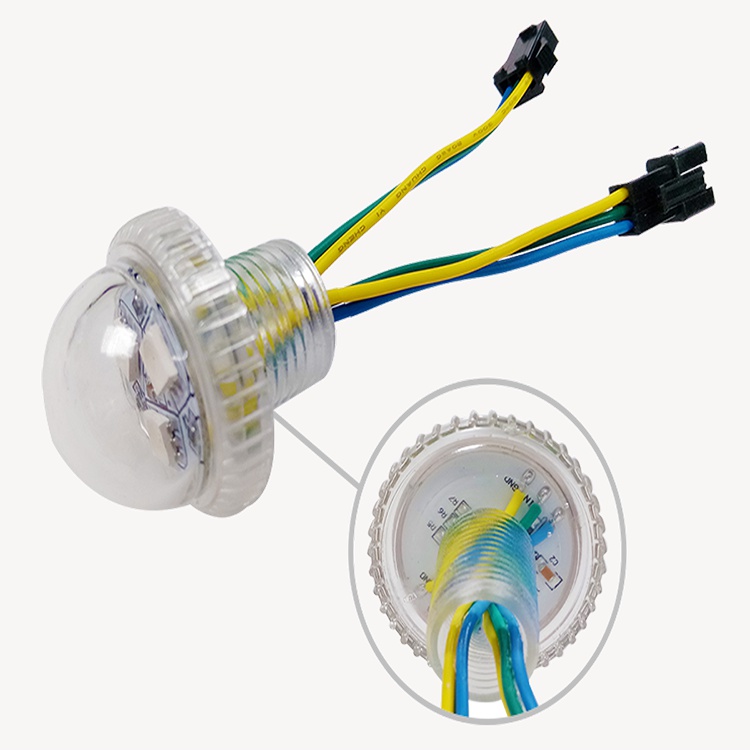

2. The 26mm led amusement pixel lights is individually piece, has two 3pin seperately cable connectors for signal input and output. it can be come with one pair female/male JST SM connector for waterproof IP65; Or with strong waterproof connector IP68 for totally outdoor using.
3. When linking multiple leds together, power should be split and applied to each strand.We recommend connect up to 20 pcs leds in a series and power feeding to avoid the voltage drop cause color difference.
4. The shell you can choose milky white, transparent or frosted, have tail thread in size 14mm. 19mm and 26mm, you can choose one of them based on your most easy installation.
| Part NO | H26DRGB12V / H26DRGB24V |
| Lighting Source | SMD5050 RGB /SMD3535 RGB |
| Voltage | DC12V /DC24V |
| Consumption | 0.72W or 1.44W |
| IC Chip | UCS1903/SM16703 |
| Color | RGB Pixel |
| Pixels/string | To be defined ~ 20pixels /string |
| Wire Length | To be defined ~ 10cm wire connector |
| Share | Milky white / frosted /transparent |
| Dot Size | 26mm |
| Thread Size | 14mm /19mm /26mm |
| IP Rate | IP65 /IP67 |
| Operation Temperature | -20~50℃ |
