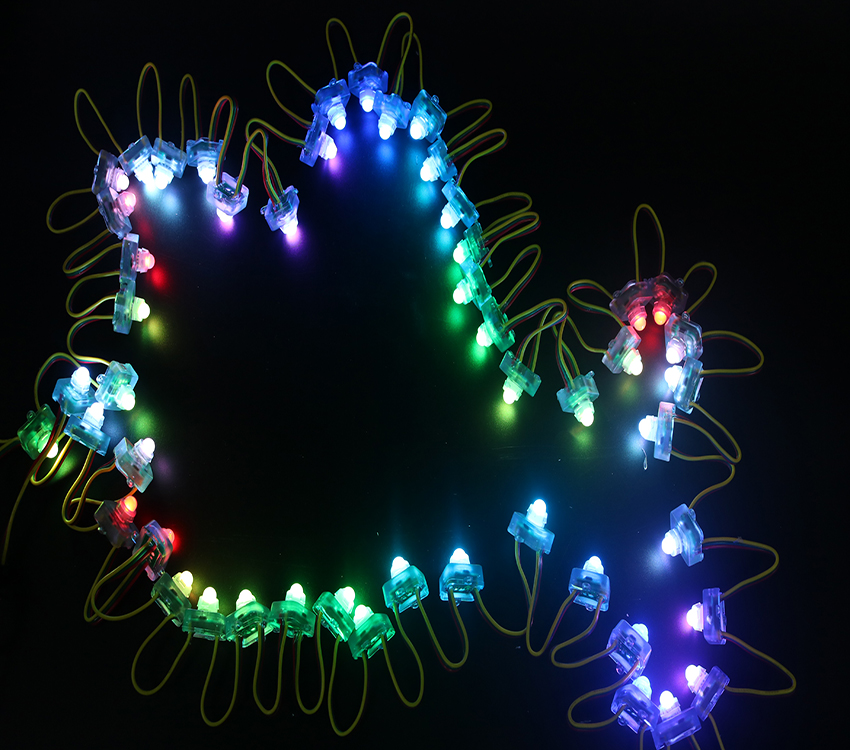

12MM Flat 5V 12V RGB Pixel LED String Light

12mm diameter 23mm deep from the top of the LED to the back of the rubber

80mm wire apart on the strand

50 pieces per strand

5V or 12V voltage

Wire gauge is 20AWG

Waterproof can be used outdoor

Can be made with IC chip: WS2801 /WS2811/UCS1903 /SM16703/GS8208

Product Description

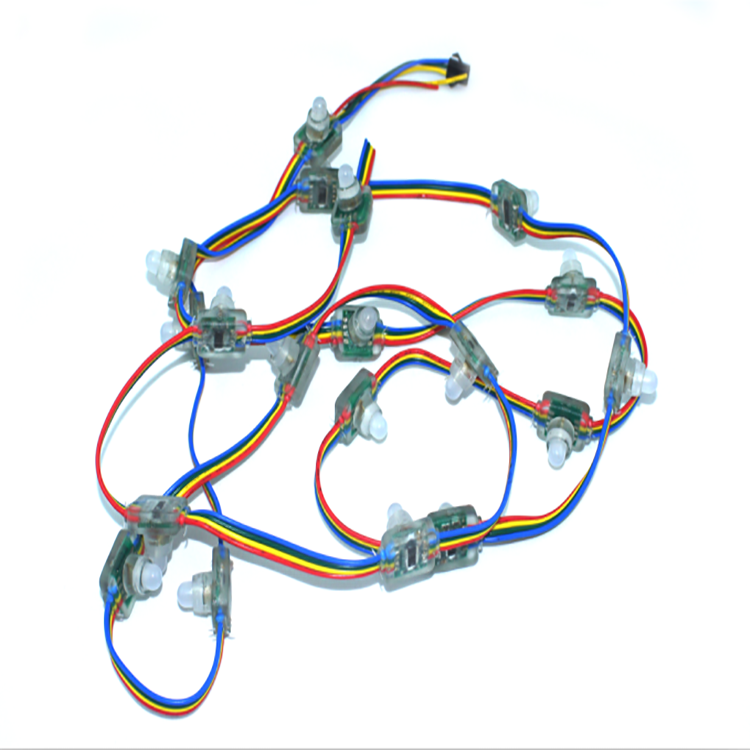

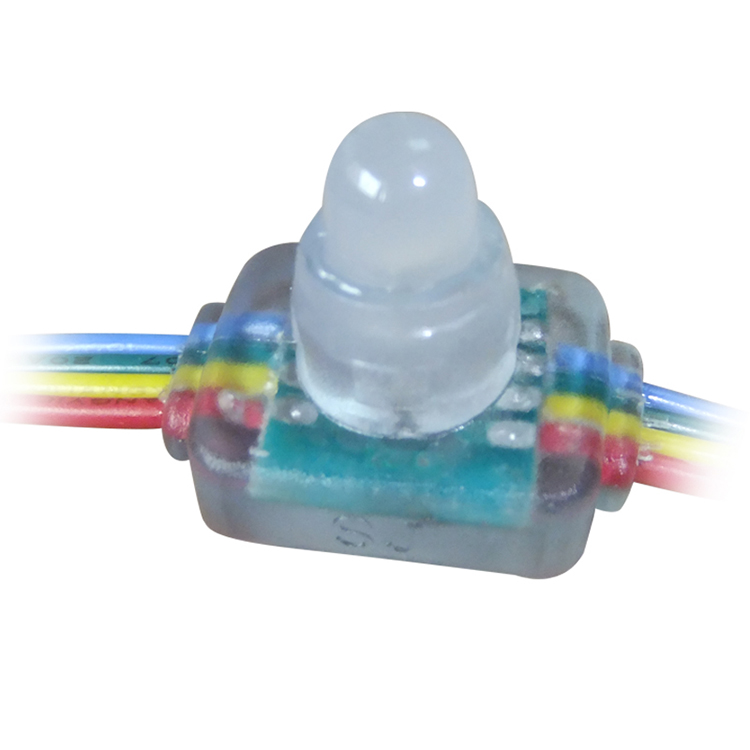

Each RGB LED and controller chip is molded into a 'dot' of silicone. The dots are weatherproof and rugged. There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm thick. They're typically used to make outdoor signs. These pixels have a flat square back, we also have pixels that are long and thin, both are the same electronics, just different shapes!


Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end.


Each dot is digitally controlled, with an internal 8-bit PWM LED driver (24-bit color for 16 million different shades).


The pixels use 8mm diffused RGB LEDs, with a 120 degree beam width.


Part NOH1515ICRGB
Lighting Source8mm dip RGB LED
VoltageDC5V /DC12V
Consumption0.3W
IC ChipWS2801/WS2811/UCS1903/SM16703/GS8208
ColorRGB Pixel
Pixels/stringTo be defined ~ 50pixels /string
Wire LengthTo be defined ~ 8cm apart between each pixel
LED's Size12mm
IP RateIP65 /IP67
Operation Temperature-20~50℃
