10MM SK6812 RGB LED Pixel Light
Home > Products > LED Pixel Light > 10MM SK6812 RGB LED Pixel Light
10mm diameter
10mm wire apart on the strand
50 pieces per strand
DC5V Voltage, 0.24W Wattage
SK6812 RGB diode
Waterproof can be used outdoor temporary
Product Description
5050-sized LEDs with an embedded microcontroller inside the LED. You can set the brightness of each R/G/B. Each LED acts like a shift register, reading incoming data on the input pins, and then shifting the previous data out on the output pin. By sending a long string of data, you can control an infinite number of LEDs, just tack on more or disconnect unwanted LEDs at the end.

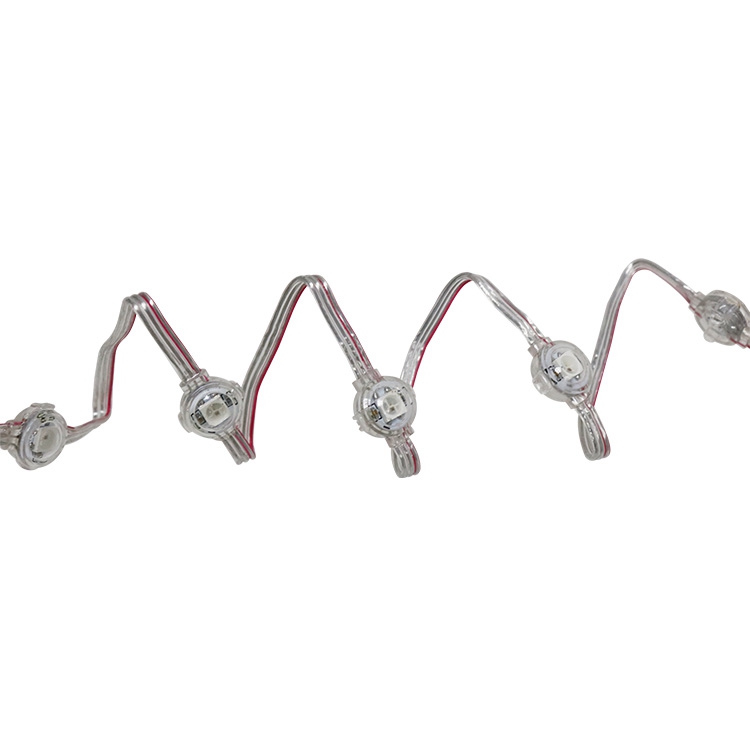

The strands have 50 digitally-addressable pixel LEDs. The red wire is +5V, the middle wire is data, and the other edge wire is ground.

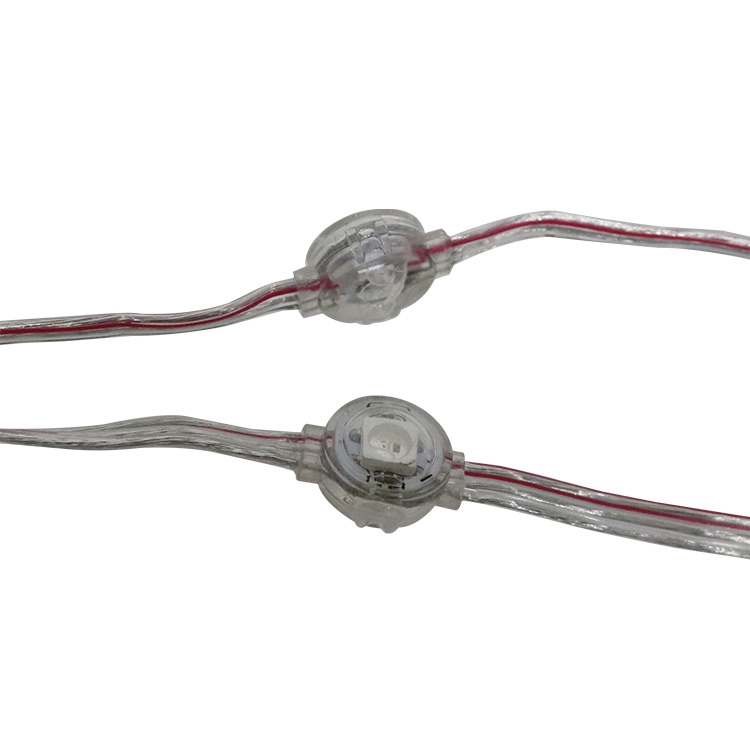

There are small markings on the dots that indicate the input side, which should be the end with the male pin connector .
Please note, the buttons have little plastic hooks molded into the back but they're often mismolded. Since the hooks are not very strong anyways, we don't guarantee that the mini hooks will work.
Part NO | H10V5SK6812 |
Lighting Source | SMD5050 RGB LED Light |
Voltage | DC5V |
Consumption | 0.3W |
IC Chip | SK6812 |
Color | RGB Pixel |
Pixels/string | To be defined ~ 50pixels /string |
LED's Size | 10mm |
IP Rate | IPP65 |
Operation Temperature | -20~50℃ |
