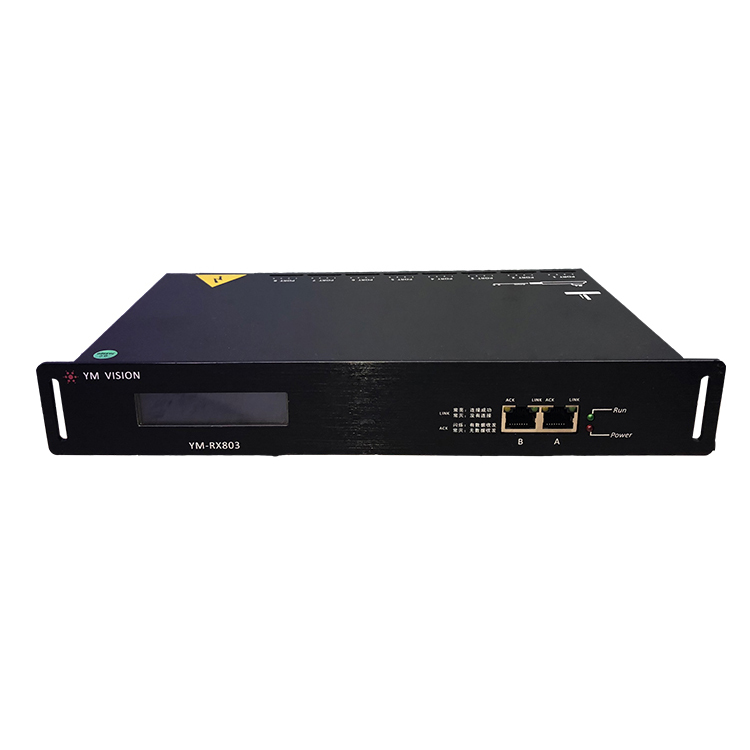

LED Slaver Controller YM-RX803S


RX803S is the slave controller


Can connect directly with PC or TX902 master controller


Working Voltage AC100-240V ,50/60HZ


Working Temperature -20 to 65℃


Warranty is two year , can not be used outside directly - non-waterproof IP20 .


Product Description

1. Can connect directly with PC or TX902 .

2. Gigabit Ethernet communication , can be connected to switches and optical fiber transceivers .

3. One-key set the controller’s IP, wiring, pins and other parameters .

4. 8 ports, each port can carry up to 512/1024 pixels that can be selected in software , support various LED driver chips .

5. Large load capacity: controllers can be cascaded through the network cable (CAT5E/CAT6) , maximum cascade controllers 254pcs .

6. Gray level setting: can be adjusted from 0 gray to 32-65536 gray levels according to lamp application.

7. Brightness adjustment: Function 100-level brightness automatic adjustment .

8. Distance between controller to controller can be 100m .


CONNECTION

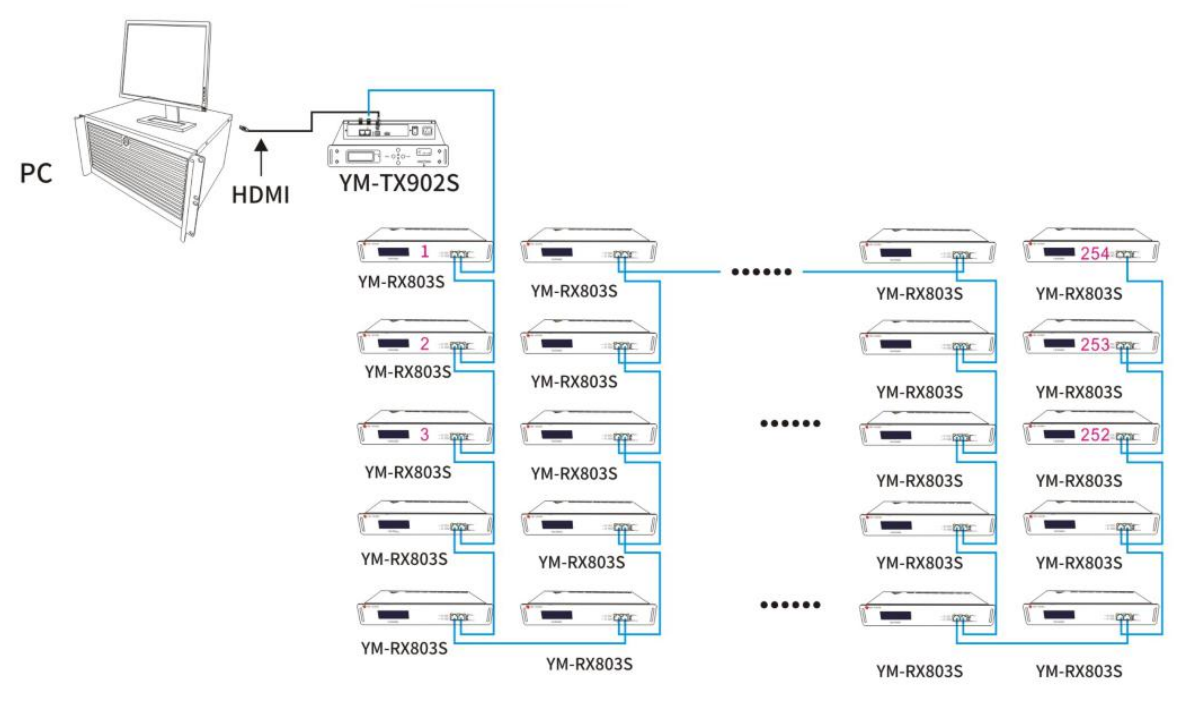

1. Online diagram ( with computer, TX902S and 803S )

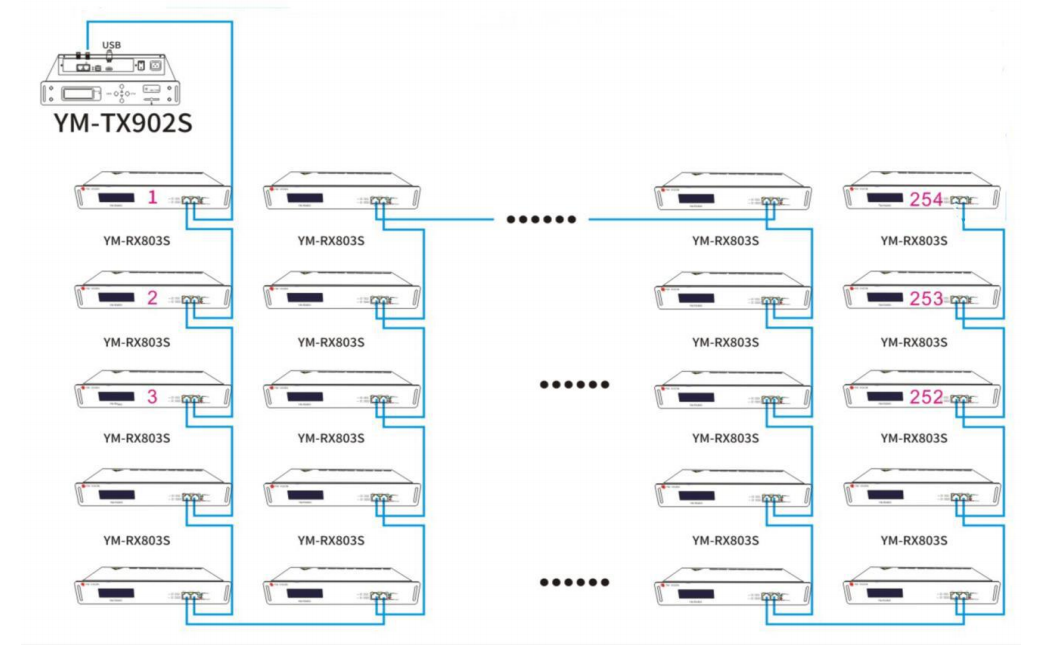

image.png2. Offline diagram ( USB interface , TX902S and 803S)

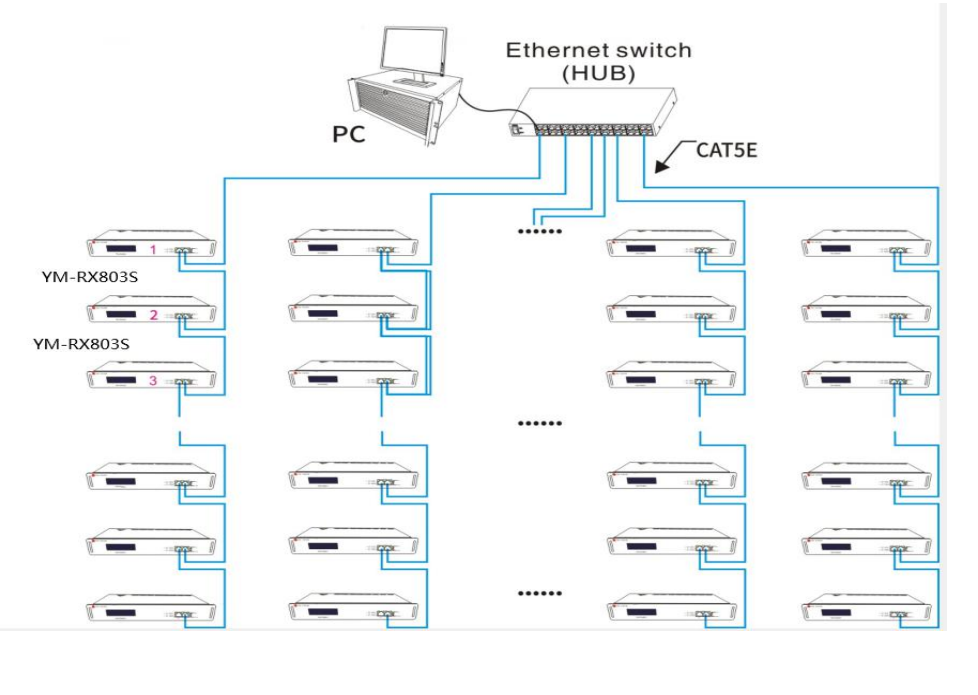

image.png3. PC output video signal by Gigabit network interface directly , no need the TX902S :
