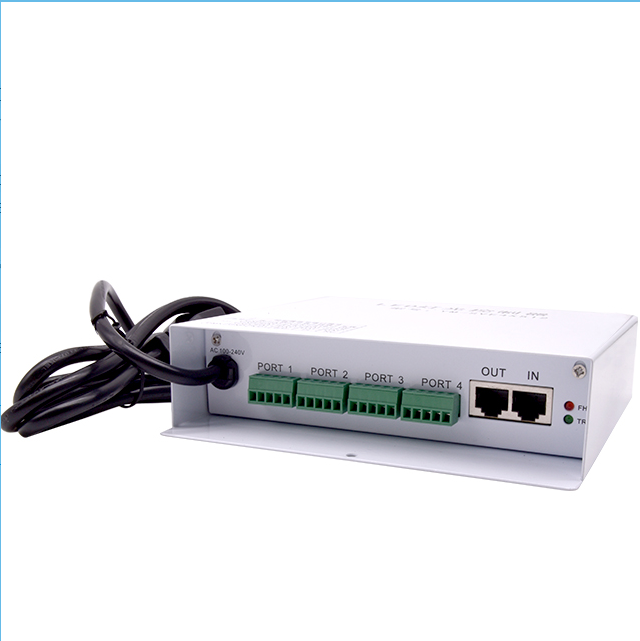

LED Slaver Controller YM-SVE4 x 512/ YM-SVE8x 512

Multi-function Digital LED slave Controller


On-line or off-line with 2GB SD card controlling model


Support DMX512 protocol + SPI /TTL protocl IC chips


Connect main-controllers to work together


Working Voltage AC100-240V ,50/60HZ .


Working Temperature -20 to 65℃


Warranty is two year , can not be used outside directly - non-waterproof IP20 .


Product Description

1. SVE8x512 / SVE4x512 is the slave controller , must work together with master LM501 .

2. It can be 4 ports or 8ports , same each port max drive 512pixels .

3. Using Fast Ethernet, TCP / IP communication protocol, host connectivity LED controller via standard network cable (CAT5E/CAT6) .

4. The controller can output TTL signal or RS485 signal , output ports have anti-reverse and anti-lighting protection .

5. Distance between slaver controller can be 100 meters .

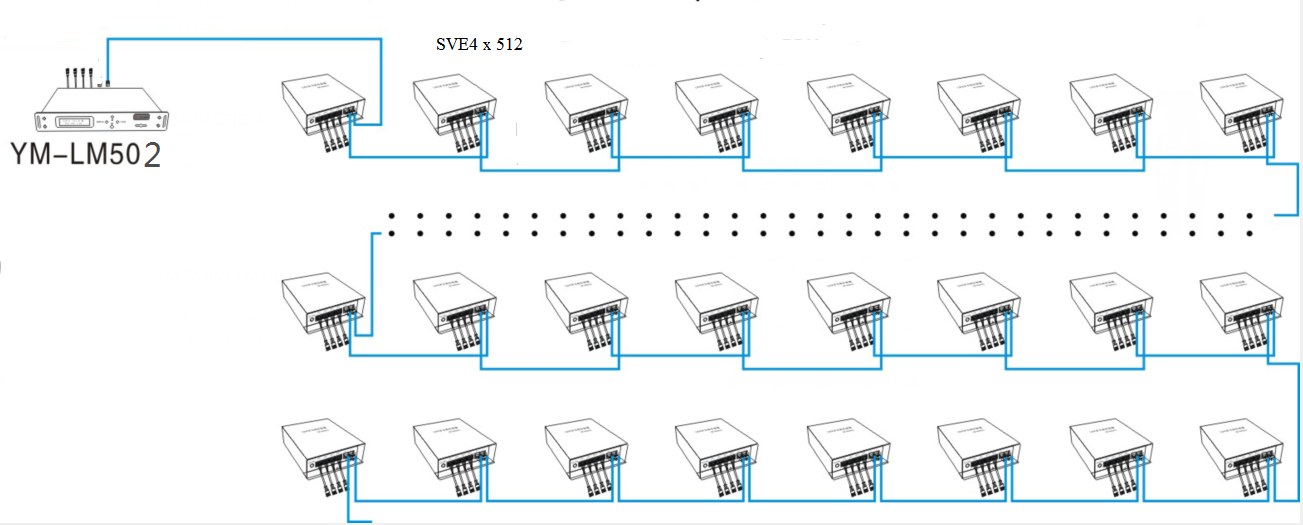

Offline control



Online Control
