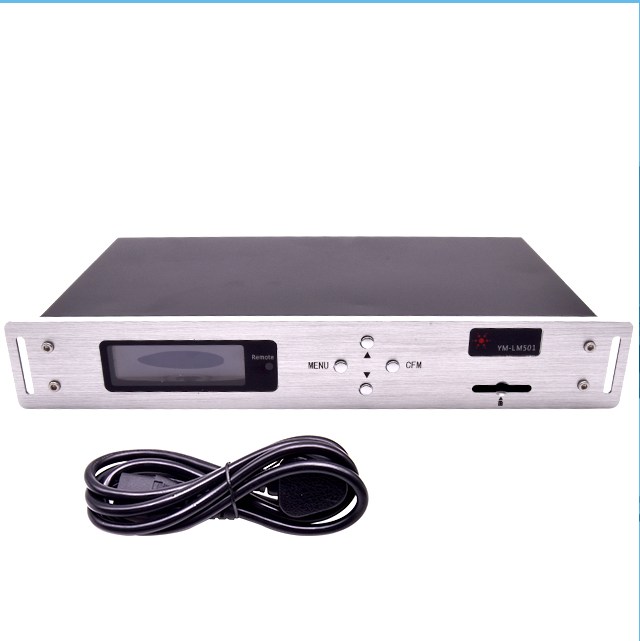

LED Controller YM-LM502/LM501

1. Multi-function Digital Controller

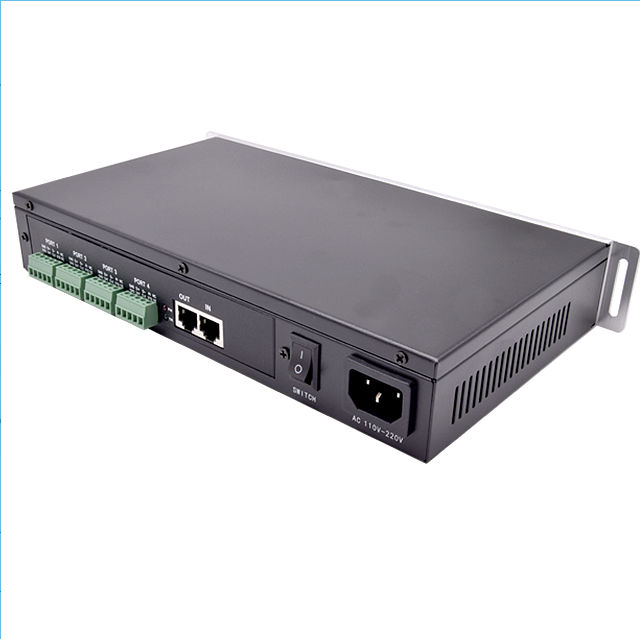

2. With 4 output ports, each port load 512 pixels,2048 pixels maximum


3. Support DMX512 protocol + SPI /TTL protocl IC chips


4. Connect sub-controllers when product is DMX512 chips that on-line


5. On-line is work with Madrix software


6. Click buttons or remoter to control program models, speed


7. Off-line controller, program saved in SD card, 15 files maximum


8. Widely used in all DMX512 led products projects


Product Description

IP address settings: with LCD display, no DIP switch design, all IP and MAC is set to be completed by the key;


Controller with 2G SD card, program saved in SD card for offline playback;


Using Fast Ethernet, TCP / IP communication protocol, host connectivity LED controller via standard network cable;

This multip function LED cotroller have master controller function too, that on-line can be cascaded to 16 sub-controllers, 31 units can be cascaded off of control maximum;


Grayscale settings: Customers can never light gray under the circumstances to 65,536 (64K) adjust the gray, LED lights let you achieve the best display effect;

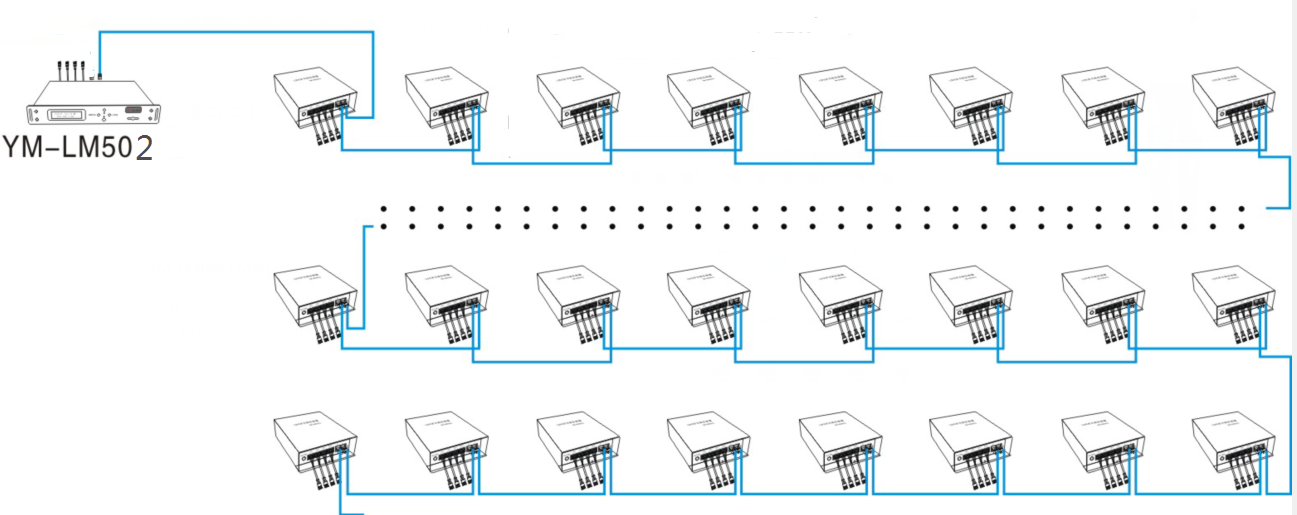

Offline connection

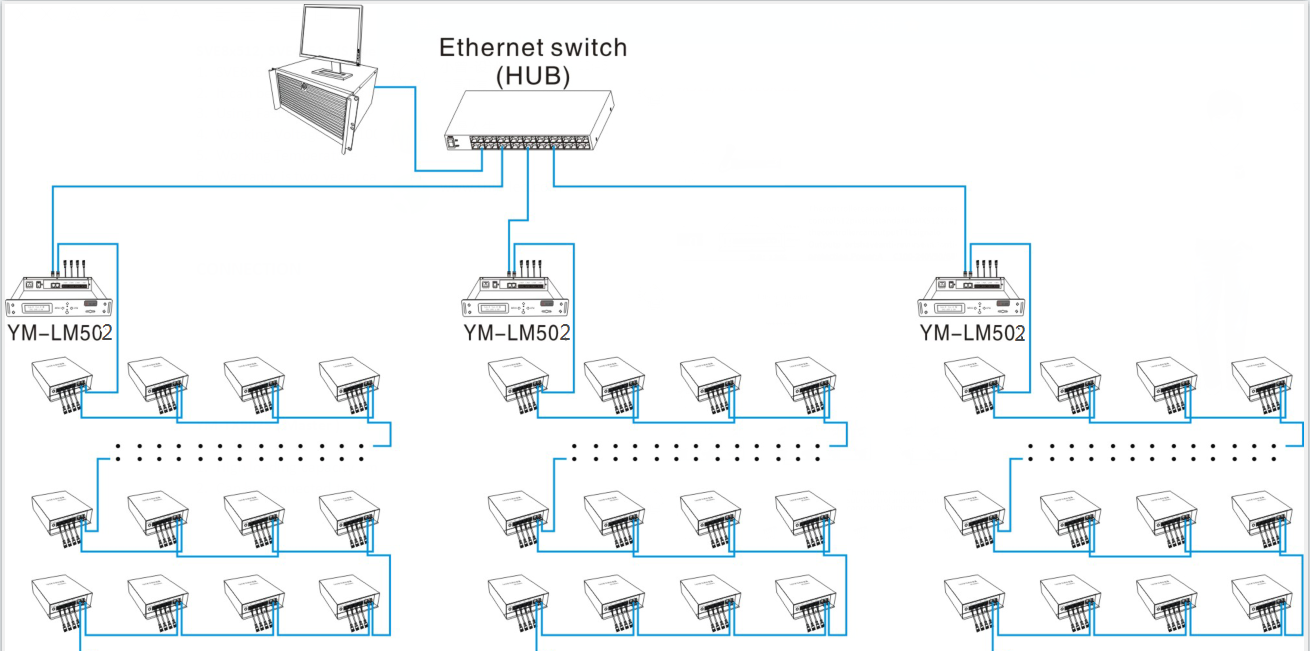

Online Connection
