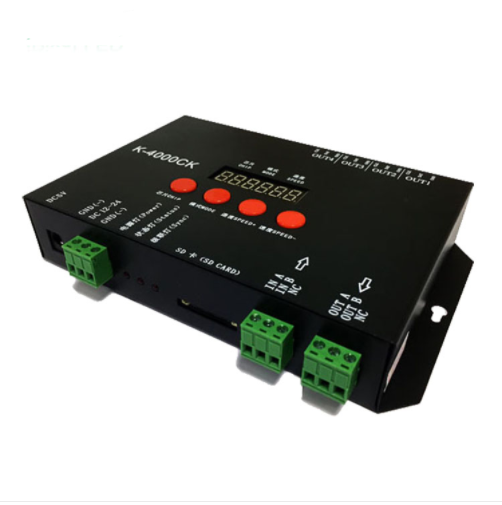

LED Controller K-4000CK
Upgraded version of T-4000, SD card off-line
32-65536 Gray,Support software Gamma correction.
Support point, line, surface, rules and special-shaped handle.
Four-port output,each can support 1024 pixels.
Off-line(SD Card) control, play back content stored in the SD card.
K-4000CK store a maximum of 16 programs,copy multiple files to the SD card in order.
The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.
Compatible with single line or double line chips.
Product Description
Support chips（PC Software Select K-8000-RGB）
00: UCS1903,1909,1912,2903,2904，2909,2912；TM1803,1804,1809,1812；
SM16703，16709,16712；WS2811，WS2812，WS2813，WS2815,WS2818；
INK1003；LX3203,1603,1103；GS8205,8206；SK6812（Support up to 1024*4=4096
pixels）
01：SM16716,16726（Support up to 1024*4=4096 pixels）
02：P9813（Support up to 1024*4=4096 pixels）
03：LPD6803（Support up to 1024*4=4096 pixels）
04：LX1003,1203（Support up to 1024*4=4096 pixels）
05：WS2801（Support up to 1024*4=4096 pixels）
06：LPD1886（Support up to 1024*4=4096 pixels）
07：TM1913（Support up to 1024*4=4096 pixels）
08：TM1914（Support up to 1024*4=4096 pixels）
09：P9883,P9823（Support up to 1024*4=4096 pixels）
10：DMX（support up to 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels）
11：DMX 500K（support up to 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels）
12：DMX 250K-CZF(support up to 512*4=2048 pixels, suggest to support ≤320*4=1280
pixels）
13：DMX 250K-CZF （support up to 512*4=2048 pixels, suggest to support ≤320*4=1280
pixels)
NOTE: The lights with DMX signal only support single line DMX, do not support A（DAT+）、B(DAT-) signal
line.
