DVI Controller YM-TX901/TX902S

TX902S is the master controller

TX902S can not drive leds directly .

Working with the slaver controller RX803S

Working Voltage AC100-240V ,50/60HZ .

Working Temperature -20 to 65℃

Warranty is two year , can not be used outside directly - non-waterproof IP20 .


Product Description

1. High loading capacity , more than 1 million pixels .

2. Can be connected to a video splicer or video processor , easy to change video source .

3. Multiple controllers can support super large display screen by video slipping device

4. Online and offline integration, online HDMI input, offline save files via disk to play video .

5. Online/offline auto test and free change.

6. Maximum support 1920x1080 resolution .

7. In HDMII mode , can play PC desk without controller software .

8. Offline support video file : AVI , WMV , MOV , MKV , MPEG , ans so on .



CONNECTION

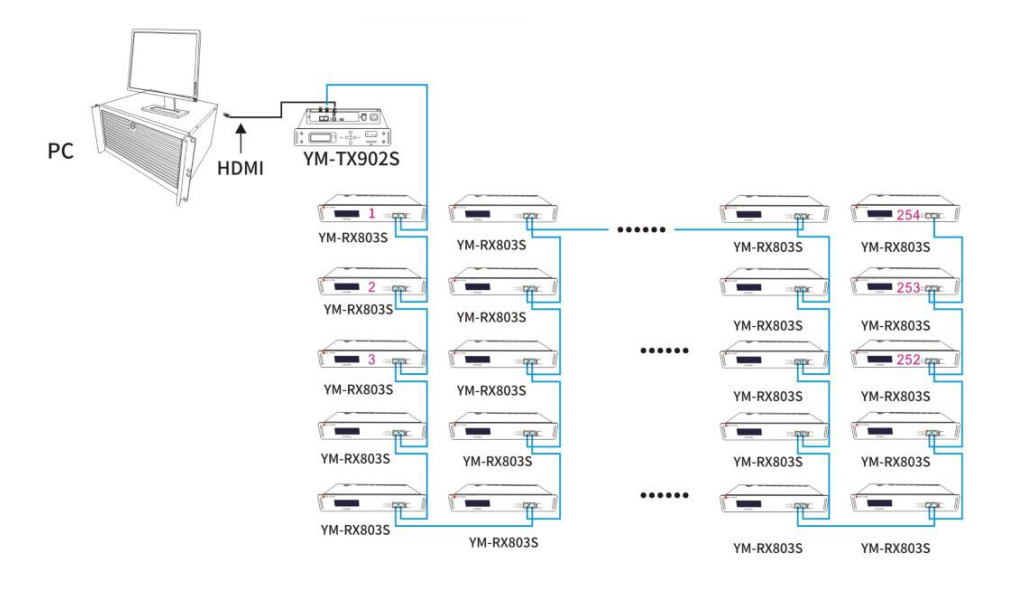

1. Online diagram ( with computer, TX902S and 803S )

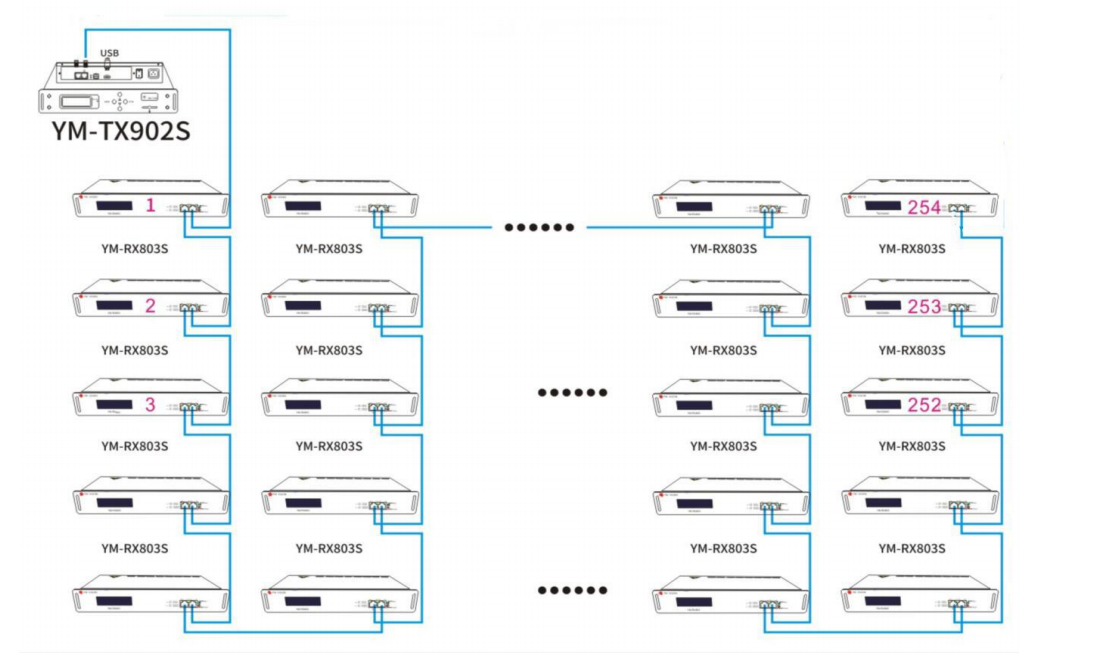

2. Offline diagram ( USB interface , TX902S and 803S)
