40MM 360 Viewing Frosted Milky White Pendant RGB Pixel LED Tube
Home > Products > LED Bar Light > 40MM 360 Viewing Frosted Milky White Pendant RGB Pixel LED Tube
-IP20 Non-waterproof designed for stage entertainment lighting, TV show
- 60LEDs per 50cm or 120LEDs per meter .
- Pixel pitch is 50mm- Milky white PC material, 40mm in diameter
- Full 360° viewing angle, no lighting spot(no shadow)
- Vertical or horizontal hanging installation
Product Description
Lighting Source | SMD5050 RGBW/RGB |
Tube Diameter | 40mm |
IC chip | UCS2904/UCS1903/WS2811 |
Operate Voltage | DC24V |
Consumption Watt/M | 28Watt (max) |
Pixel Pitch (mm) | P50mm |
LEDs/M | 120LEDs/m |
Pixels/M | 20Pixels/m |
PCB Color | White |
Waterproof Grade | Nonwaterproof IP20 |
Working temperature | -20℃-50℃ |
Storage temperature | -20℃-60℃ |
Beam Angel | 360 degree |

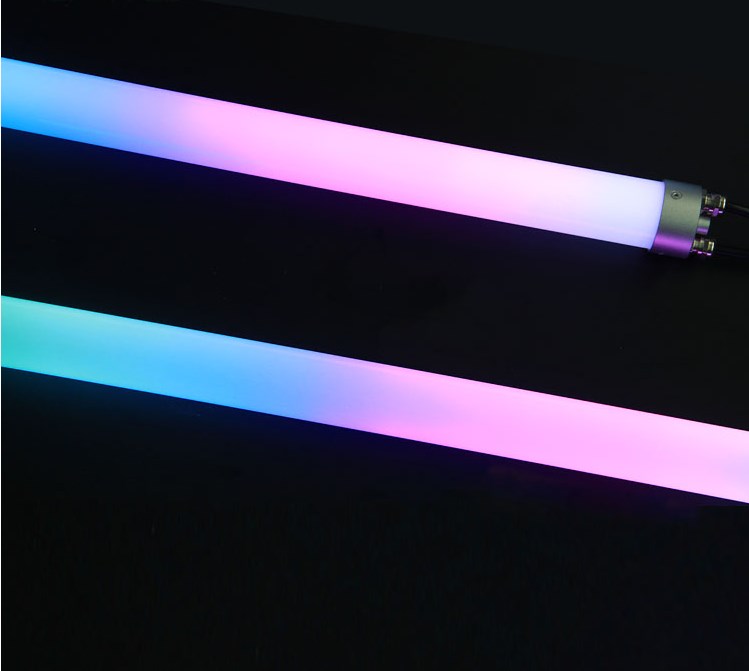

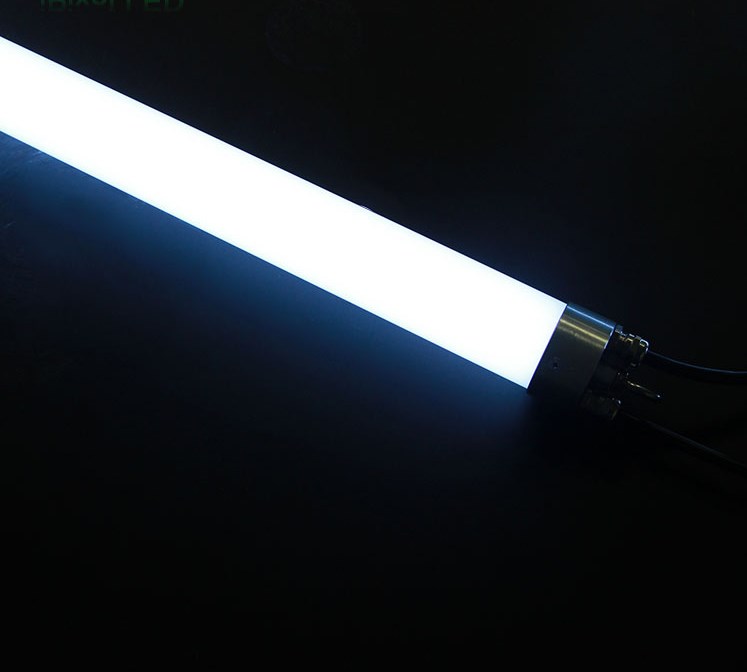

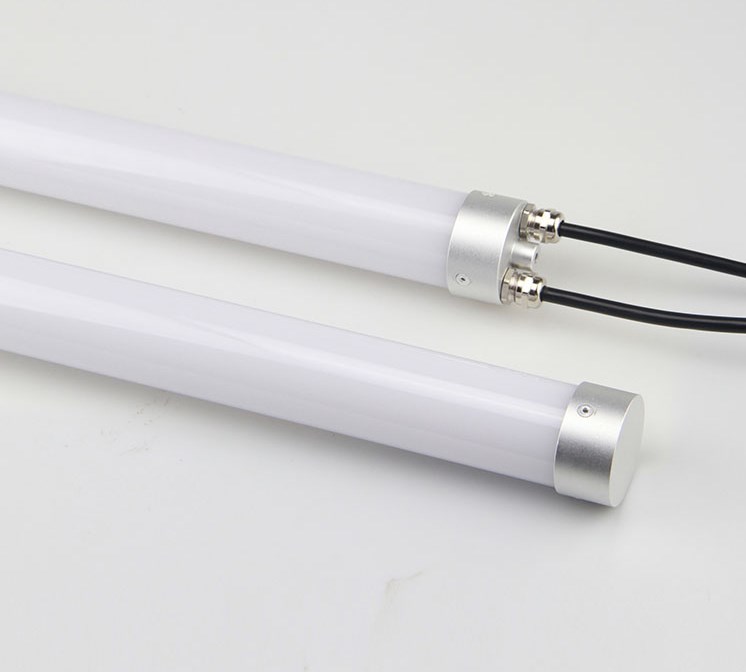

40mm Digital LED meteor tube with Milky white PC material .
360° emitting, uniform luminescence without spots .
LEDs built on both side of the PCB , the LED’s and pixel’s quantity of each meter can be customized based on your brightness and pixel control requirements .
IC chip can be defined as SPI like ws2811 /ucs1903/sk6812/ucs2904 or the DMX512 type .

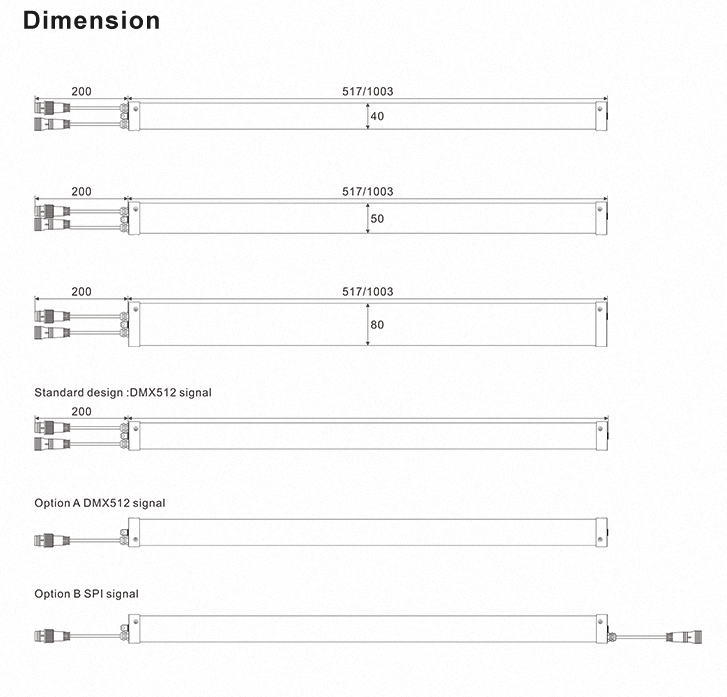

The length can be 0.5m , 1m , 1.5m or 2m each tube .

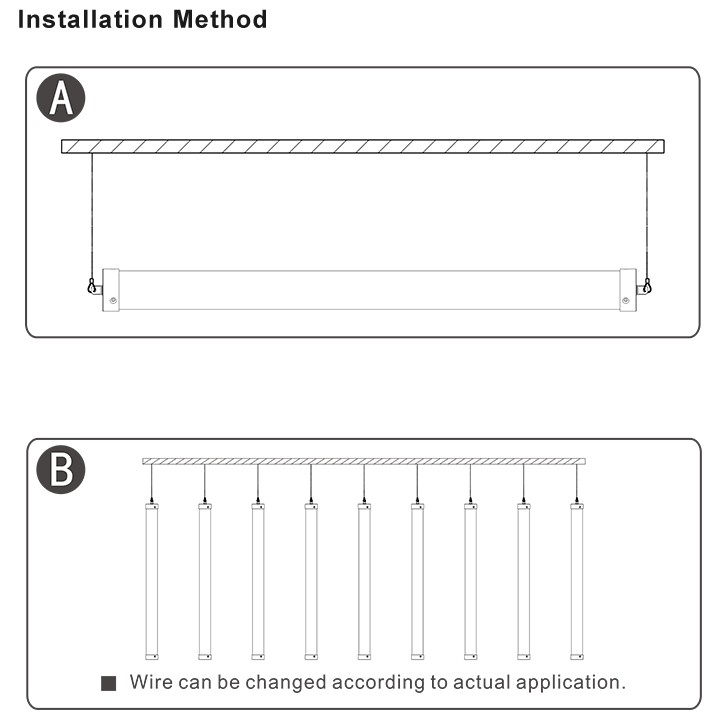

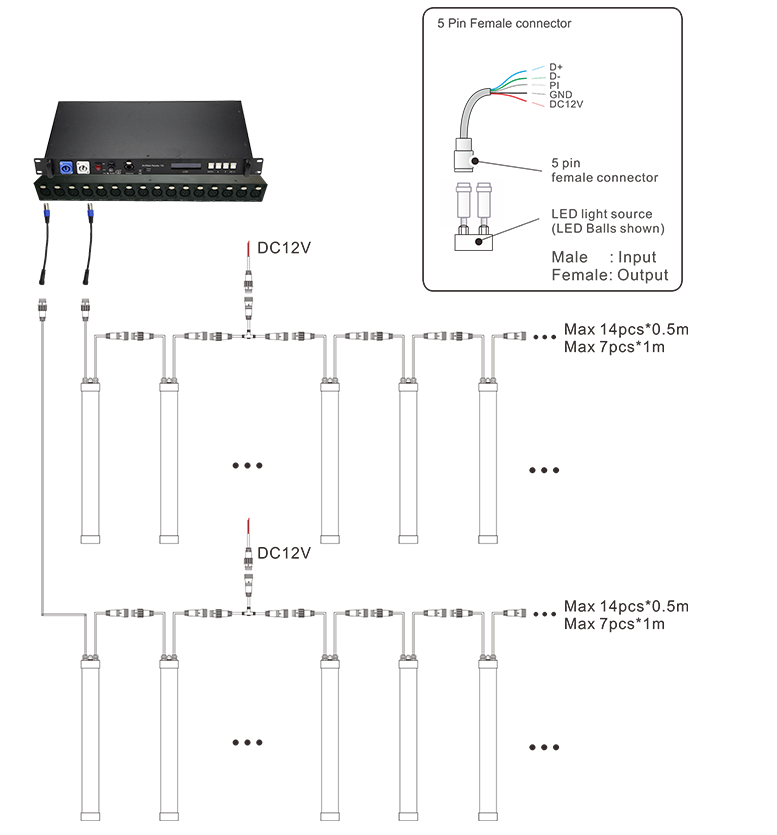

The installation is flexible , you can choose vertical or horizontal suspension , even made in some molding as you want :

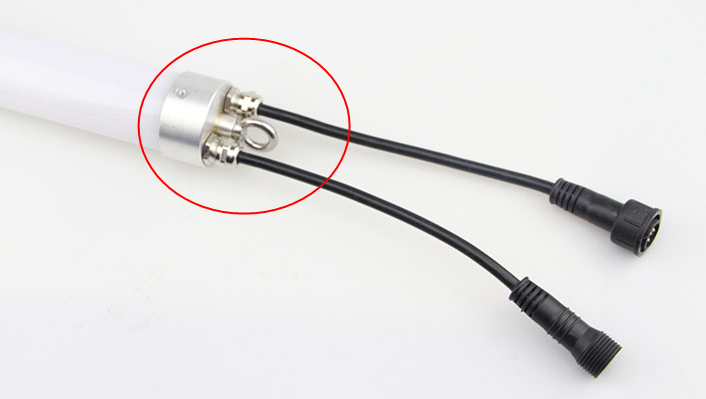

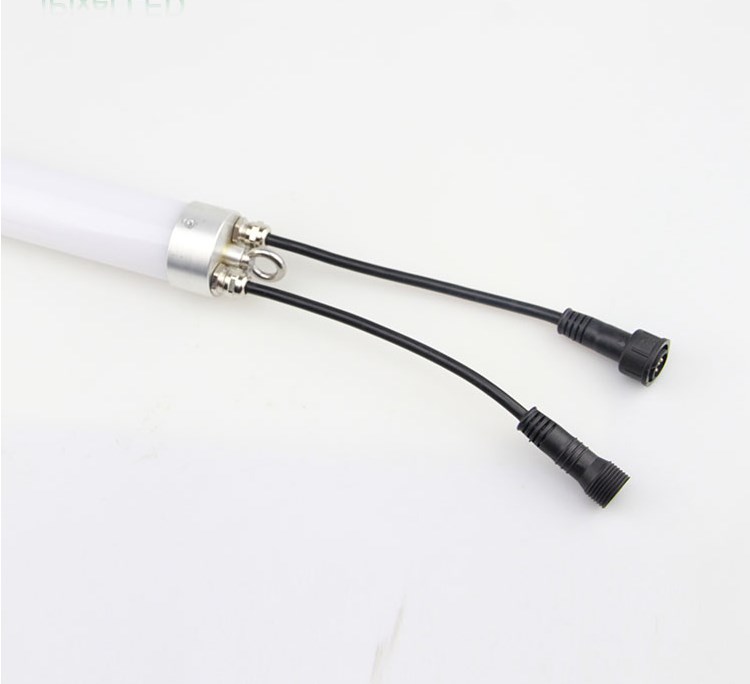

With Eyebolt
