Vertical DMX 3D LED Pendant Tube 360 Degree
Home > Products > DMX512 LED > Vertical DMX 3D LED Pendant Tube 360 Degree
1. Dimension: 0.5m, 1m, 1.5m, 2m length
2. Clear PC cover giving 360° viewing
3. Building LEDs on both side of the PCB
4. Standard DMX 512 control
5. 3D pixel mapping to set on the software programming
6. Protections: short circuit, over current, over temperature
7. IP65 waterproof with good design of the housing
Product Description
Application: 3D Vision figure, Interior design for clubs, museums, themed environments, Stage video elements for intimate or large concert productions, Television awards and game shows, Video Art projects
1. 3D DMX vertical tube is DMX512 protocol that signal is parallel instead of SPI signal.

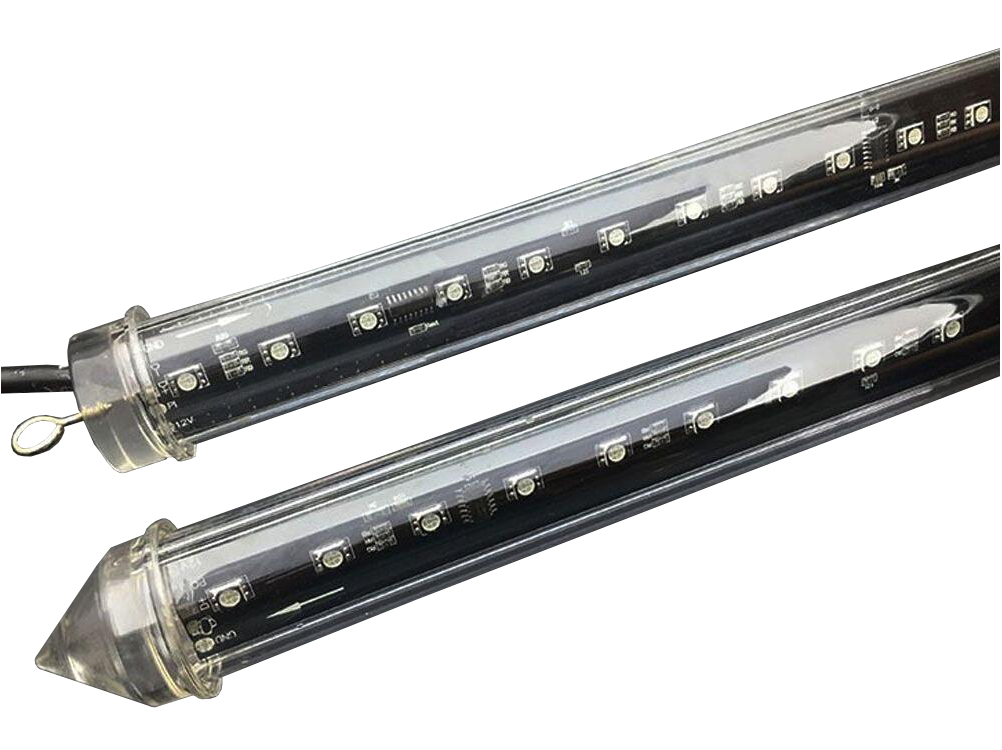

2. 3D DMX vertical tube is made of 30cm round tube inside clear PC tube, so this DMX meteor tube has 360 view.
3. Due to its vertical spec, mainly installation way is hung from the ceiling horizontally via the eye hook in the DMX led tube.
4. There are 8 pixels, 32 leds in each side that is 16 pixels, 64 leds in total entire tube.
5. DMX512 advantage is stable working performance and changing colors smoothly that to be avoiding all lights influenced by the failure of some leds in serial connection.
6. 360 degree DMX vertical tube work with Artnet / DMX512 controllers to play amazing 3D effects via Madrix software.
7. Each piece LED tube has 1 pcs 5pin waterproof connector that entire 360 view 3D DMX vertical tube is IP65 waterproof, but we still recommend this 360 degree DMX led digital tube install in indoor enviroment.
8. Use the T connector for power to support power, and use the T connector for LED fixture to connect multiple 360 view DMX led digital tubes together. This two kinds of T connector you could find in our LED asscessory items on web.
9. 50cm, 100cm, 150cm and 200cm are available, of course, welcome customized length.
