DMX 50MM/35MM 3D LED Ball Light
Home > Products > DMX512 LED > DMX 50MM/35MM 3D LED Ball Light
360 degree lighting
50mm or 35mm size
UCS512-DMX IC chip
SMD5050 RGB /SMD3535 RGB
Milky white / transparent shell
SD card controller, DMX controller and etc.
Product Description
DMX 3D balls has two size 50mm or 35mm to meet your different application, 50mm ball built with smd5050 rgb diode, the smaller one 35mm size is smd3535 led chip. LED chips build on the both side of the PCB to make it can be 360 degree viewing.

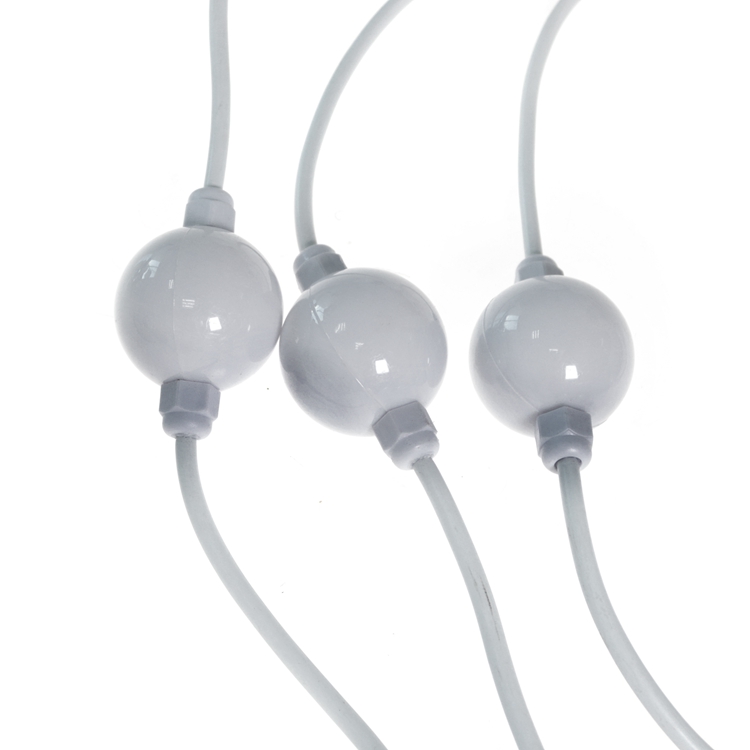

The DMX 3D LED pixel ball light standard production is 20balls per string, 15cm cable length between each ball light. Each string has two pieces connectors that male for date/power input in one end, and female connectors for date /power output by the other end of string.
Thanks for the connectors, it makes strings daisy chain very easily, male and female plug into each other to longer the strings as many as you wish, at the same time, please make sure you feeding enough power for the strings.

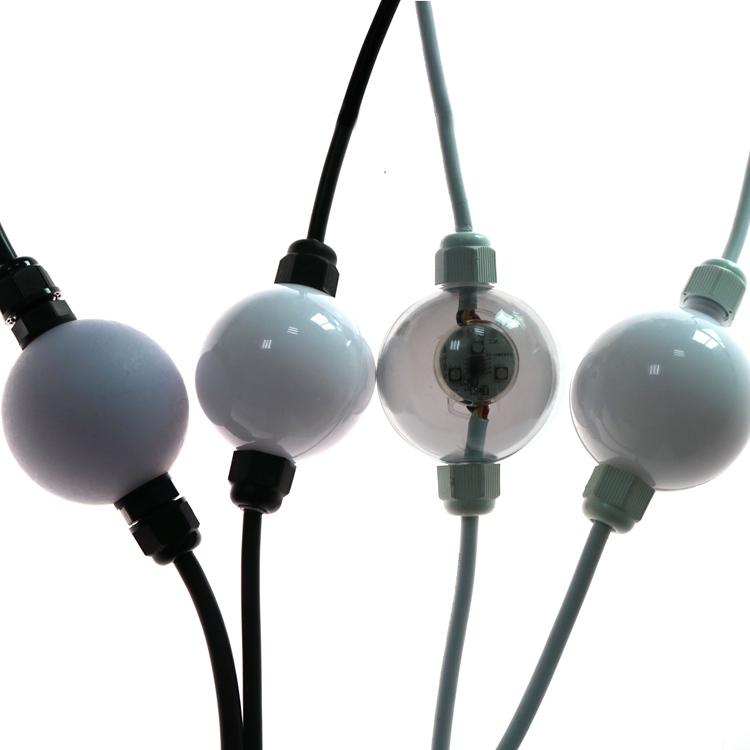

50MM LED led ball light shell can be milky white or transparent, 6pcs smd5050 RGB LEDs for non-waterproof ball version. However, the waterproof, use the smd3535 rgb leds, as there is an extra module shell for the PCB put inside and sealed with glue for totally protection from water, then add the sphere shell outside (more details refer below pictures please).
Multiple LED Balls are designed to form a video light curtain or 3D visual matrix.
Double side lighting effects can be seen from 360degree. 2D pixel mapping can be transformed to be 3D with the help of software programming.

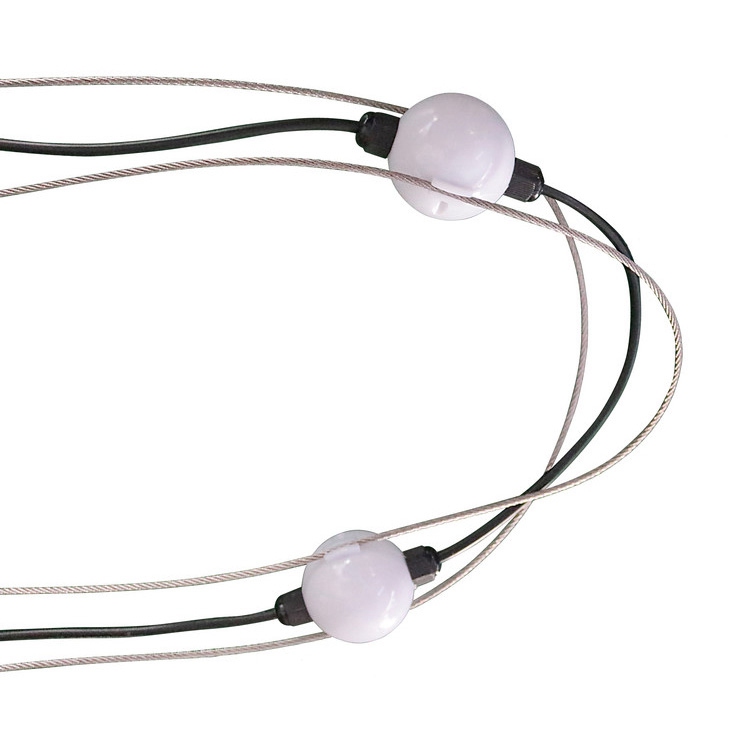

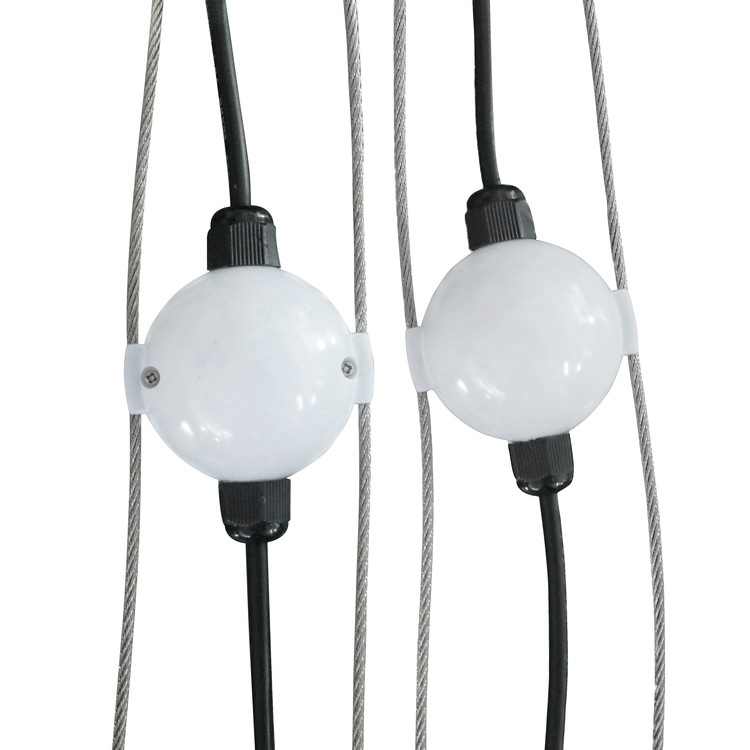

The installation: This DMX 3D Balls can be suspended from the ceiling vertically in stage, events,theme park and so on. Also we developed the type that two steel cable can be attached in the center of the ball with screws fixing, and lock snaps on the both end of each string for fixing the strings, this make the strings not limited only suspension.
Part Number | H50DMX3DIP20 | H50DMX3DIP67 | H35DMX3D |
Lighting Source | SMD5050 RGB LED x 6pcs | SMD3535 RGB LED x 6pcs | SMD3535 RGB LED x 6pcs |
Diameter | 50mm | 50MM | 35MM |
IC chip | UCS512 - or SPI UCS1903/WS2801/WS2811 | ||
Protocol | DMX512 | ||
Pixels | 3 channels per ball | ||
Voltage | DC24V | ||
Beam angle | 360d degree | ||
Pixel Pitch | Typical 150mm (other pitch can be customzied) | ||
Balls per string | 20 balls per string - To be defined | ||
Color | RGB full color control | ||
Addressing options | Manual Addressing | ||
Shell Color | Milky White /Transparent | ||
IP rate | IP20 | IP67 | IP20/IP67 |
Operation Temperature | -20~60℃ |
