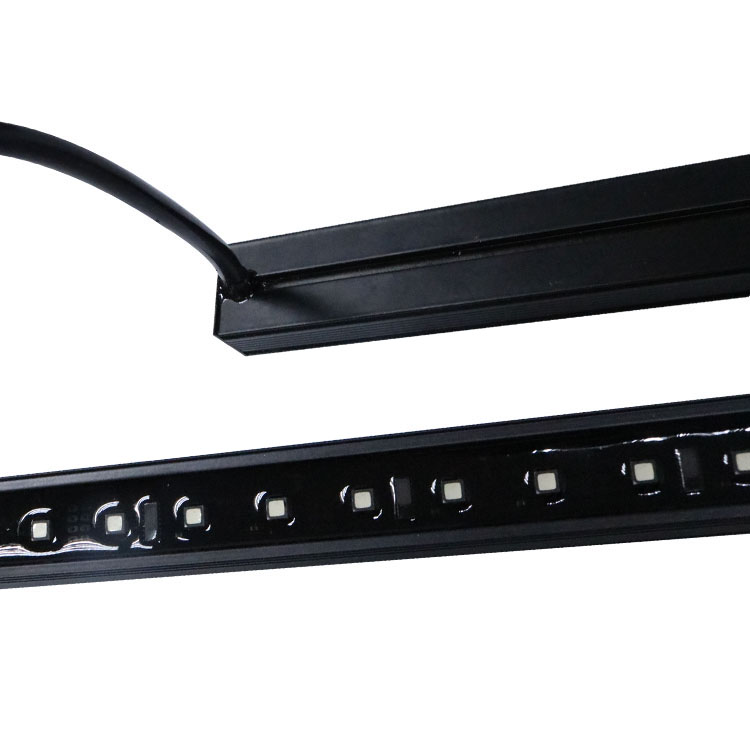

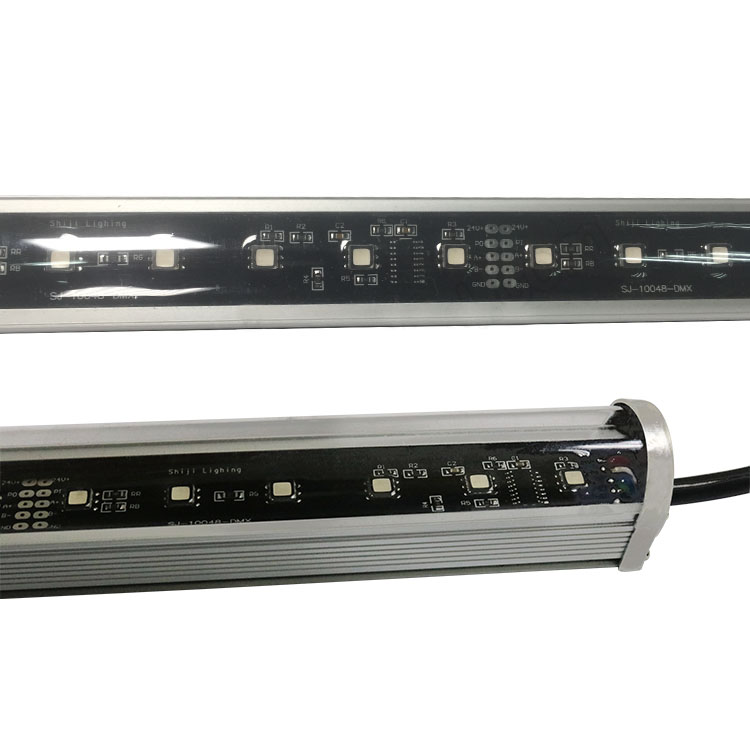

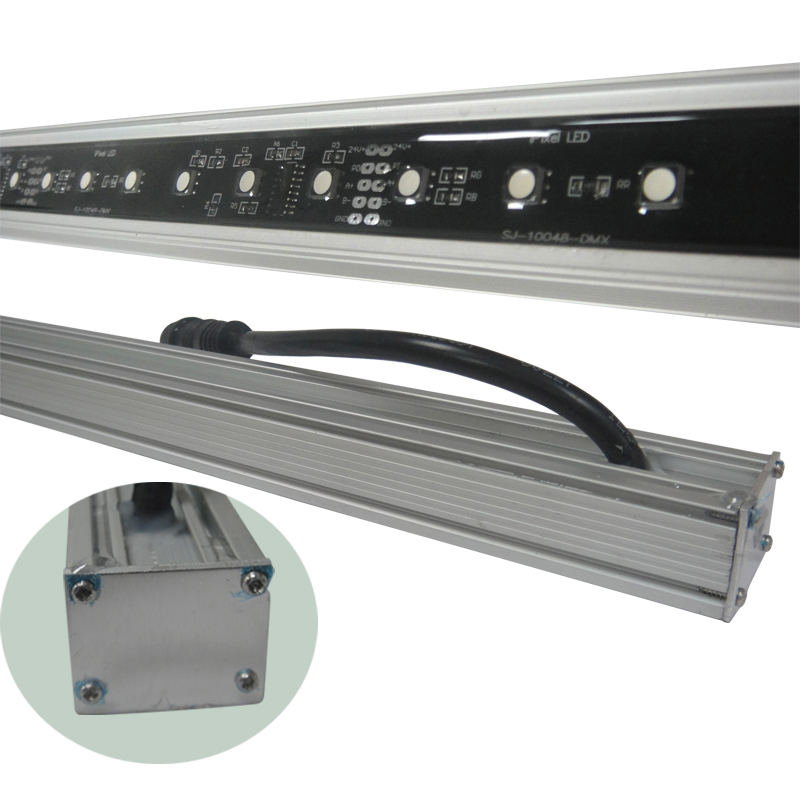

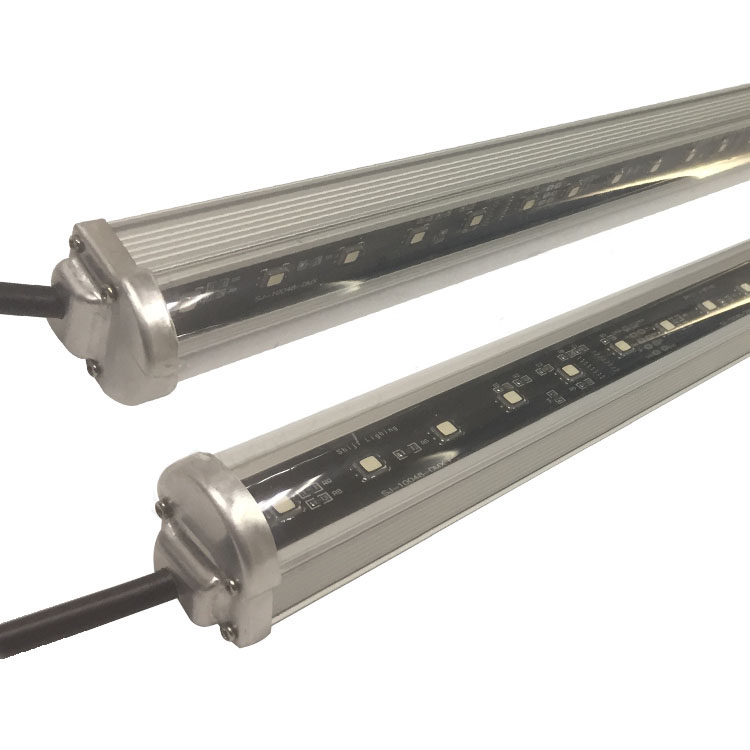

Digital DMX LED Rigid bar

1. DMX digital led rigid bar, 48leds/m, combines with DMX technology, eliminating the need for pixel decoders! This DMX pixel bar can be directly connected to any standard DMX controller for ultimate control of your LED lights. Direct DMX pixel bar does not require any additional decoders, since they are already integrated into the RGB DMX strip.

2. Each 6RGB LEDs is one pixel segement, so you can set the color for each pixel segement to create custom visual effects. This allows you to create lighting effects for large displays that were never thought possible. This granularity of control creates an endless number of scenarios for creative lighting design. This is the beauty of pixel control.

3. DMX512 in parallel signal, compare with SPI LEDs, its advantage is when one pixel failure will not affect the other pixel working even when they are in series connection.

4. 8Pxiels in one meter, 24 channels in one meter, the outside extrusion can be in siliver color or black color.

with top side transparent or milky white cover, glued top side also can be used in outdoor enviroment.

5. DMX512 RGB LED bar need write address code before they connect to controller. we also can provide the address coder, it is manually. Controller like our commonly K1000C/K1000D/K8000D/YM501, Artnet or any controller which can support DMX512  protocol.

6. RGB PixelDMX LED bar come with a male connector plug on the input and female connector plugs on the output. bars can be easily linked at the beginning or end.
