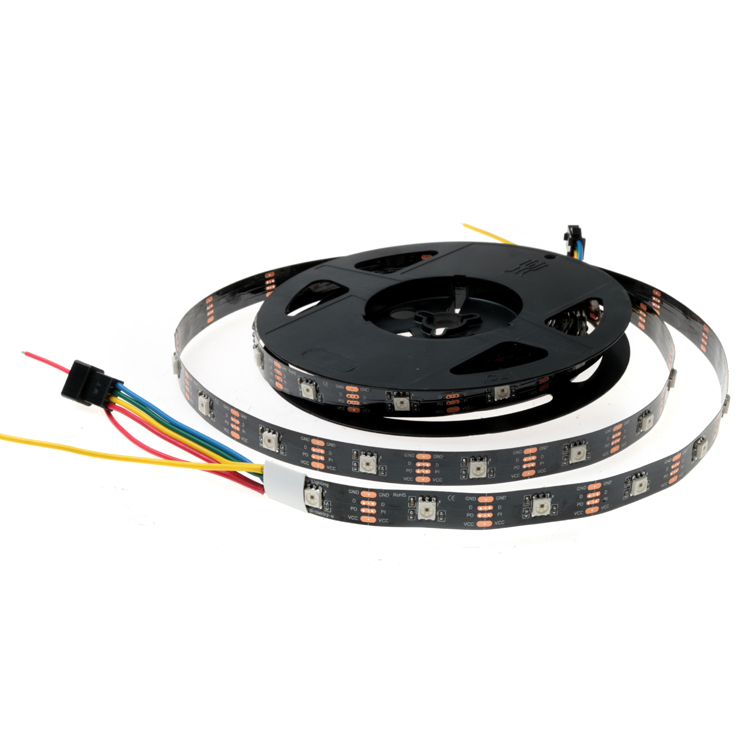

Addressable 12V DMX512 RGB 30LED Digital Strip
Home > Products > DMX512 LED > Addressable 12V DMX512 RGB 30LED Digital Strip
P/N: H10030V5DMX
1. IC inserted in SMD5050 RGB LED Pack
2. Standard DMX512 Protocl
3. 30LEDs 30ICs per meter
4. DC12V, 7W/M (MAX when full brightness)
5. 12mm PCB board with
6. 4pin JST-SM connector
7. Support K1000C/ K-1000D/ K-8000D/ YM-501 /DMX512 control, Artnet, DVI to control
8. Widely used in entertainment, stage, live performance, Disco Club and TV Show, etc
Product Description
1. This is the individually addressable IC inserted in diode DMX512 LED Pixel Strip, it is not same as the old strips that IC built on the PCB board directly.
2. DMX512 signal, compare with SPI LEDs, its advantage is when one pixel failure will not affect the other pixel working even when they are in series connection.
3. 30Pxiels in one meter, 90 channels in one meter, 60LEDs each meter with 12mm width PCB board
4. DMX512 RGB LED strips need write address code before they connect to controller. we also can provide the address coder, it is manually.
5. Controller like our commonly K1000C/K1000D/K8000D/YM501, Artnet or any controller which can support DMX512 protocol.

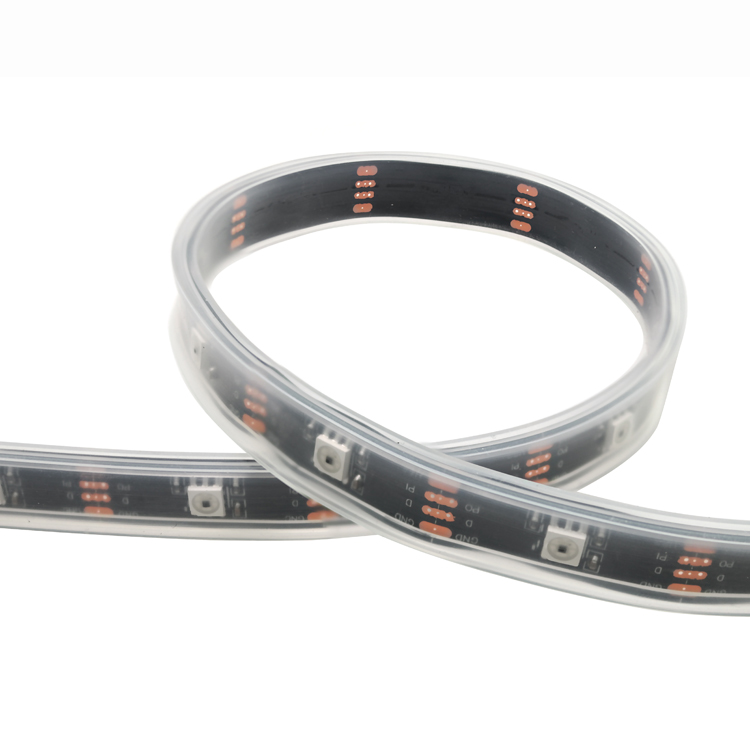

6. For nonwaterproof bare board strip, you can use the 3M adhensive tape on back; For waterproof silicone tube strip, there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well.
