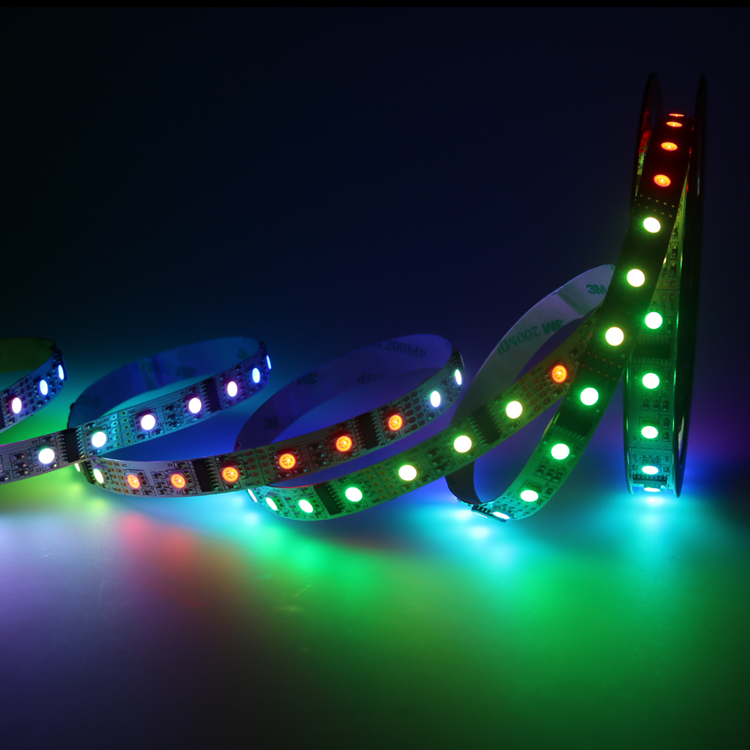

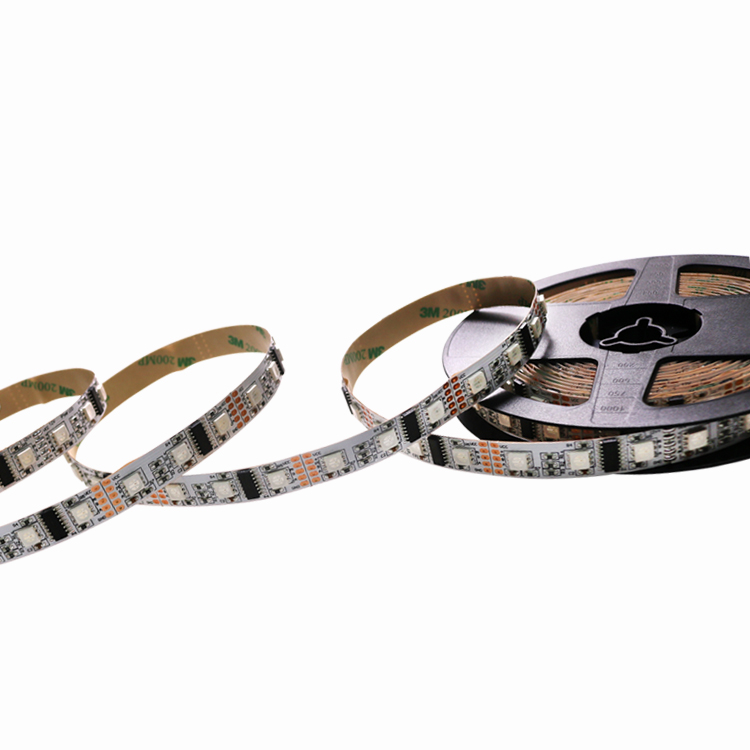

Addressable 12V DMX512 RGB 60LED Digital Strip

Home > Products > DMX512 LED > Addressable 12V DMX512 RGB 60LED Digital Strip

Addressable 12V DMX512 RGB 60LED Digital Strip

P/N: H10060V12DMX

1. Standard DMX512 Protocol

2. 60LEDs 20ICs per meter

3. Black or white PCB

4. DC12V, 14.4W/M (Max when full brightness)

5. 12mm PCB board width

6. 4pin JST-SM connector

7. Support K1000C/ K-1000D/  K-8000D/ YM-501 /DMX512 control,Artnet, DVI to control

8. Widely used in entertainment, stage, live performance, Disco Club and TV Show, etc

Product Description

1. RGB PixelDMX LED Strip Light, 60leds/m, combines RGB LEDs with cutting edge direct DMX technology, eliminating the need for pixel decoders! This DMX pixel strip can be directly connected to any standard DMX controller for ultimate control of your LED lights. Direct DMX pixel strip does not require any additional decoders, since they are already integrated into the RGB DMX strip.


2.Each 3RGB LEDs is one pixel segement, so you can set the color for each pixel segement to create custom visual effects. This allows you to create lighting effects for large displays that were never thought possible. This granularity of control creates an endless number of scenarios for creative lighting design. This is the beauty of pixel control.


3. DMX512 signal, compare with SPI LEDs, its advantage is when one pixel failure will not affect the other pixel working even when they are in series connection.


4. 30Pxiels in one meter, 90 channels in one meter, 60LEDs each meter with 12mm width PCB board


5. DMX512 RGB LED strips need write address code before they connect to controller. we also can provide the address coder, it is manually. Controller like our commonly K1000C/K1000D/K8000D/YM501, Artnet or any controller which can support DMX512  protocol.


6. RGB PixelDMX LED strip light reels come with a male connector plug on the input and female connector plugs on the output. Reels can be easily linked at the beginning or end. PixelDMX strip light is one directional, so be sure to pay close attention to the orientation of the strip. The input direction is always indicated by an arrow.


7. Easy to install: Nonwaterproof bare board strips, Has high-adhesion stickyback. Just peel off the wax paper and stick it to any clean, dry substrate. Waterproof with silicon tube, shipping together with the flexible bracket and screws for installation.
