WS2815 30/60/144 LED Pixel Strip
Home > Products > Flexible LED Strip > Digital LED Strip > WS2815 30/60/144 LED Pixel Strip
P/N: ZH10060WS2815
WS2815 two signal control mode
Input DC12V.
Can achieve single point single control effect
FPC material, can be used to bend
256 levels of grayscale changes
Can be customized for waterproof level
120 degree illumination without dark area
The pad can be cut between two pixel points
Product Description
Difference from the other addressable led strips, ws2815 pixel led strips are operated by dc12v.

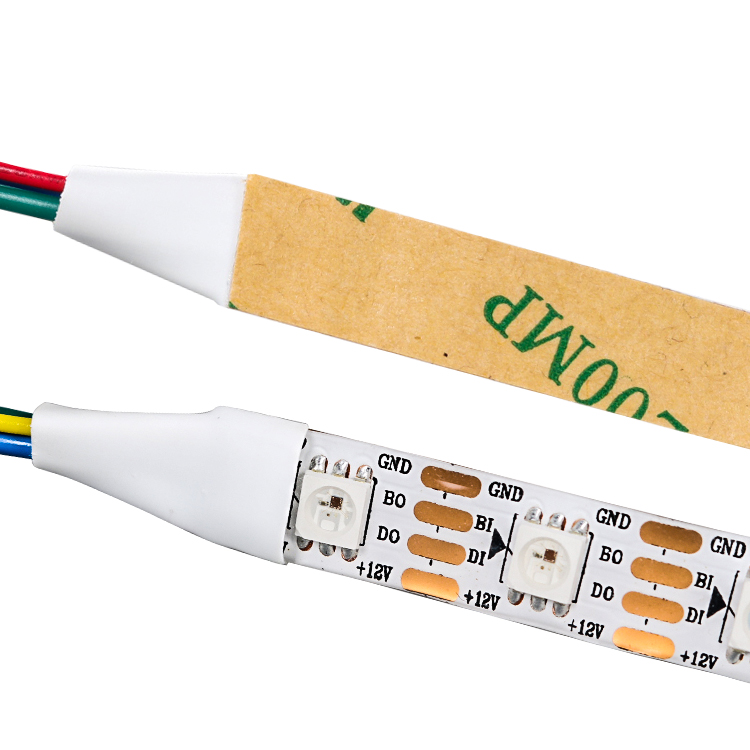

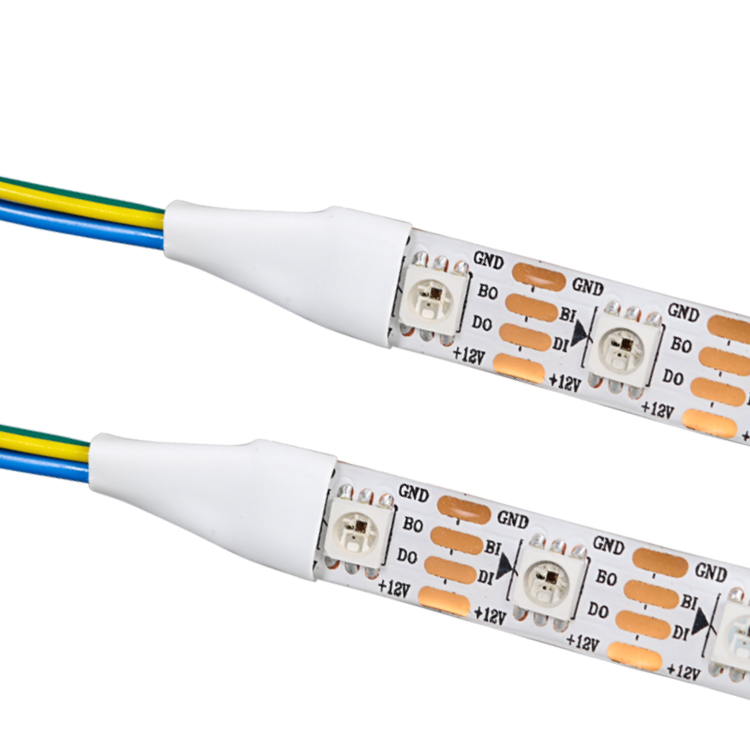

Not same as the hot ws2812b strips, ws2815 led pixel strips has two signal wire, this makes ws2815 strips is more stable than single wire transmission strips.
Due to it has two signal wire, we also call it as break-point continue transmission strips.
It is the led strip one led is broken, another data still can work, unless two next led two successive LED is broken then the led strip can not working. This ws2815 addressable 12V can make the led strip one is broken will not affect another led working.
WS2815 Strips have the optional 30leds /60/144 leds per meter, black or white PCB, RGB full color or the single color addressable control.
| P/N | ZH10030WS2815 | ZH10060WS2815 | ZH12144WS2815 |
| Lighting source | SMD5050 RGB | SMD5050 RGB | SMD5050 RGB |
| Voltage | DC12V | DC12V | DC12V |
| Wattage | 7.6W | 14.4W | 34W |
| LED quantity/m | 30 | 60 | 144 |
| Protocol | WS2815 | WS2815 | WS2815 |
| Pixels/m | 30 | 60 | 144 |
| PCB color | White /Black | White/black | White/black |
| PCB Width | 10MM | 10MM | 12MM |
| Working Temperature | -30℃ ~ 45℃ | -30℃ ~ 45℃ | -30℃ ~ 45℃ |

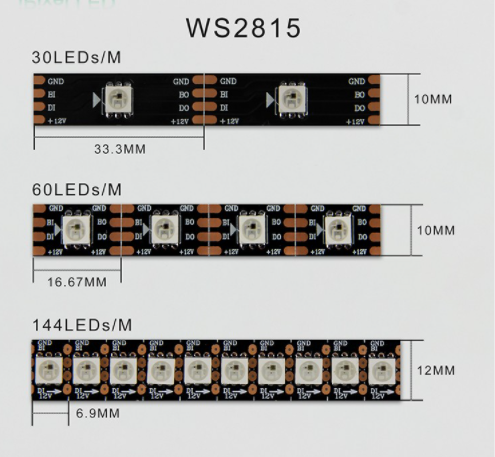

Dimension
