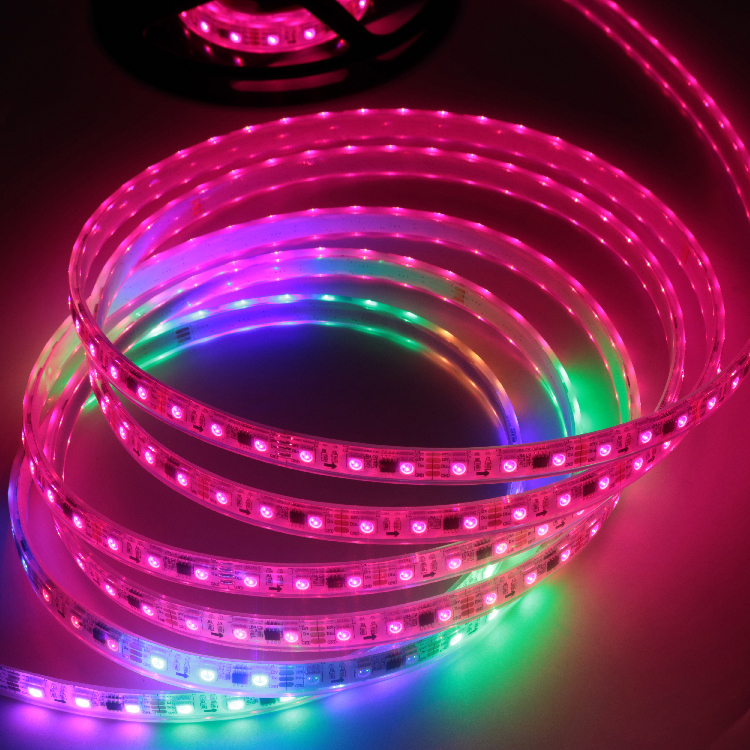

UCS1903/WS2811 RGB Pixel LED Strip

1. This strip is 60 RGB led digital strips that with normal SPI signal UCS1903/WS2811 IC chip.

2. Each meter strip has 20 pixels ( 60 channels), 60 pcs RGB leds with 10mm width pcb board.

3. 20 pixels 60 leds UCS1903 RGB led strip is flexible , bright, durable and easy for installation.

4. DC12V low voltage operating , don’t over 13v , otherwise you will destroy the entire strips.

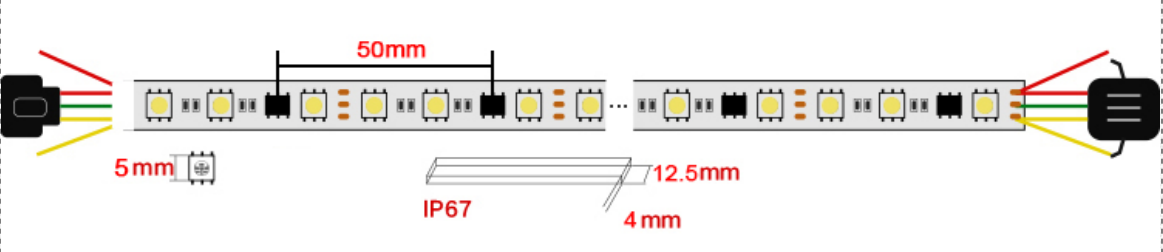

5. Each 3leds is one pixels , each 3leds is one segment , cut lines build on each 5cm , you can cut the strips easily based on the cut lines .

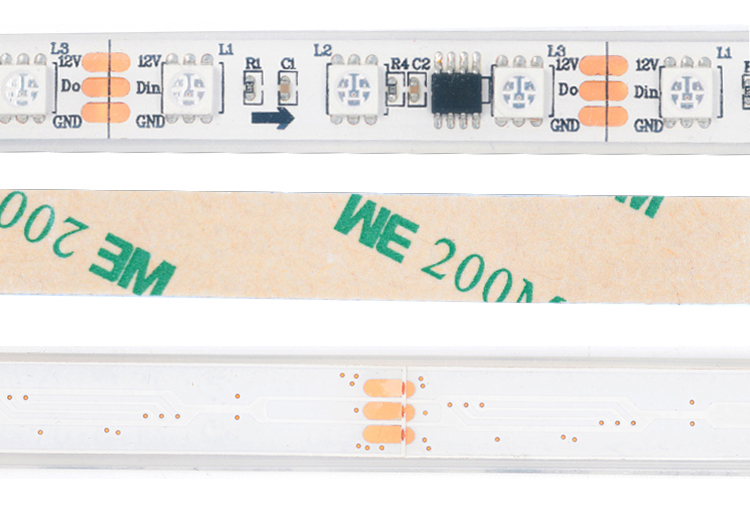

6.Three pins , three wires ,only DATE , V+ , GND  , don’t have a clock Pin .

7.For bare board strip, you can use the 3M adhensive tape on back; For waterproof silicone tube strip, there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well.

8. Widely used in entertainment, stage, live performance, Disco Club and TV Show, etc.
