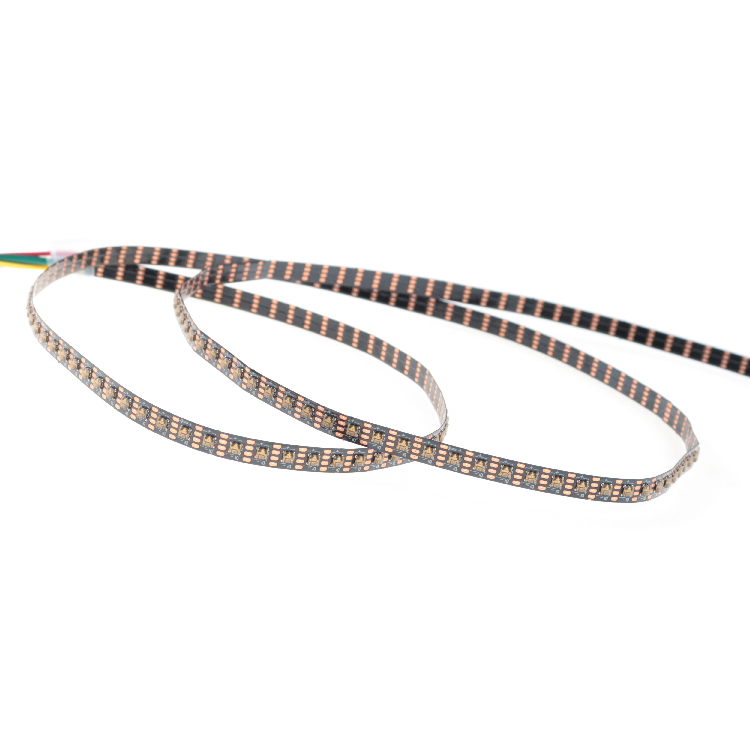

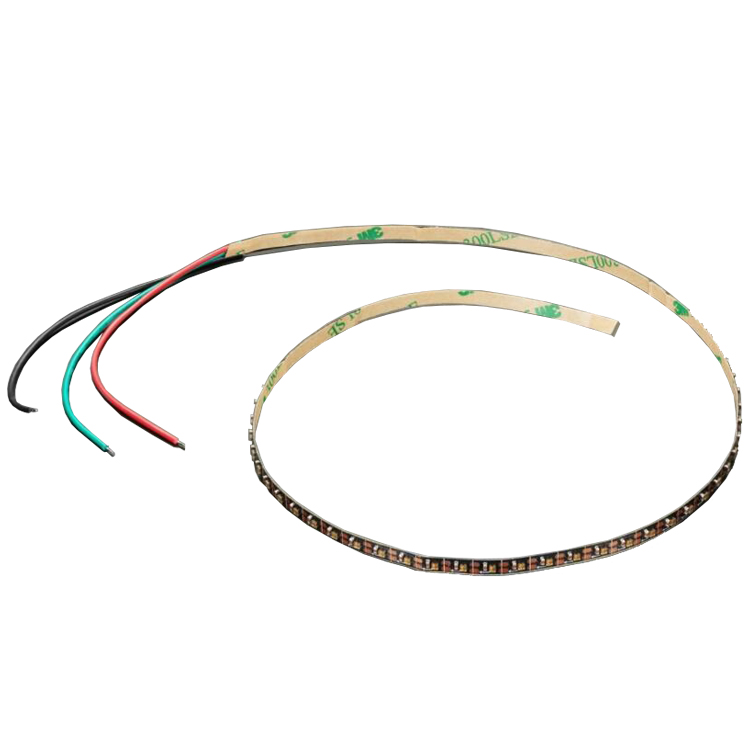

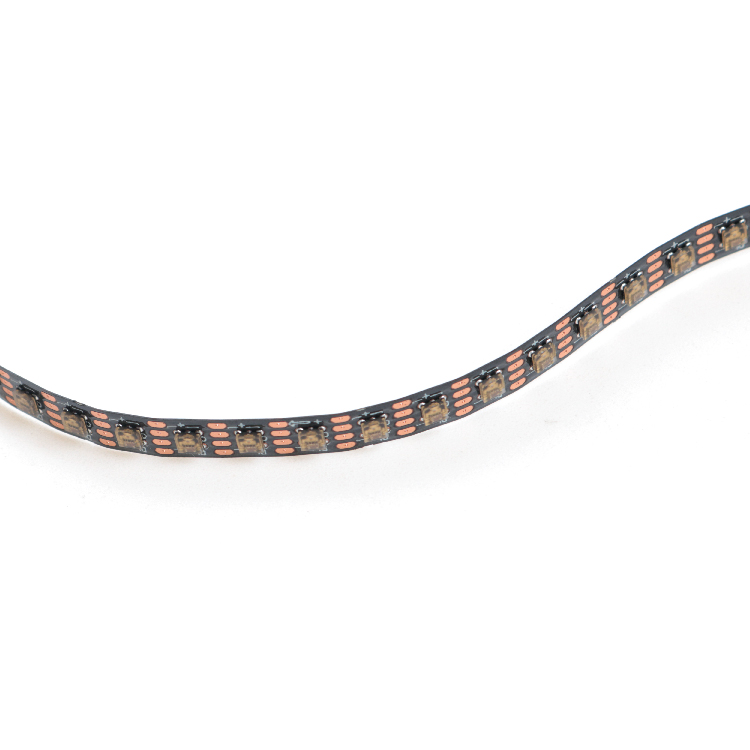

Ultra Thin SK9822/APA102 2020 Pixel LED strip

SK9822 APA102 2020 LED Strips is a very tinny strips, only 5mm PCB width, but high density 200leds per meter. its flexible that can be fit just about anywhere.

SK9822 APA102 2020 strips use up to 18watt max per meter. The max rating of 3.6A is assuming all the LEDs are on full white, usually the actual current for colorful design is less than 1/3 of the max current.

SK9822 APA102 2020 strip is very thin and does not transfer a lot of heat, so don't have all the LEDs on bright white all the time or you could get thermal damage.

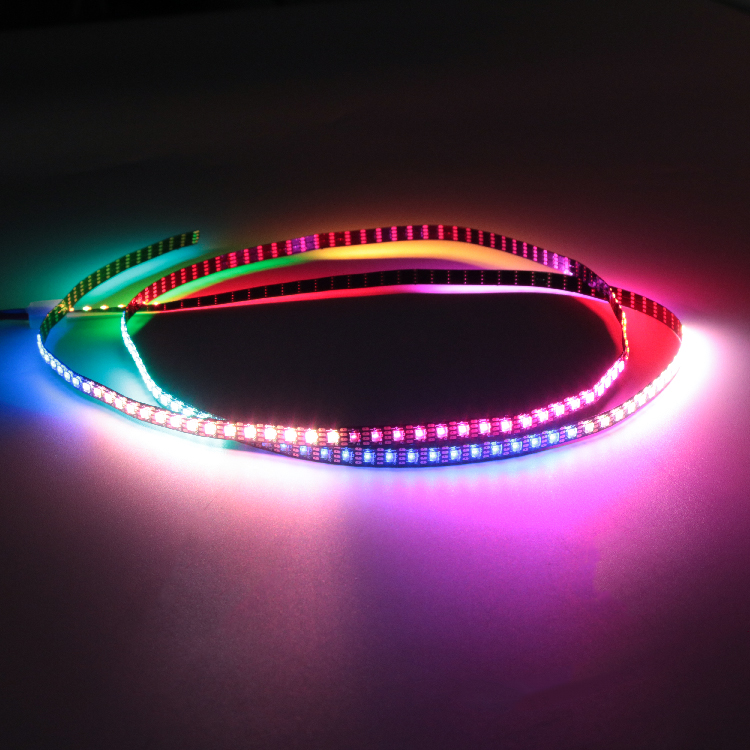

The controller chip is inside the LED, that means you can control each LED individually!

You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).

The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.

SK9822 APA102 2020 ultra skinny strips are not protected and are quite delicate. They should not be flexed repeatedly, and need to be handled with a lot of care. Not good for younger folks or beginners.
