SK6813 60LEDs/m DC12V Addressable RGB Pixel Flexible LED Tape Light
Home > Products > Flexible LED Strip > Digital LED Strip > SK6813 60LEDs/m DC12V Addressable RGB Pixel Flexible LED Tape Light
Light source : SMD5050 Intelligent RGB LED
Beam angle : 140 deg
Operating voltage : DC12V
Consumption watts : 9±W
Protocol : GS8208 IC , compatible with SK6812 /WS2815 /WS2813
Density : 60 Pixels , 60LEDs per meter
PCB board : 10mm wide, 0.25mm thickness
Pixel Pitch : 16.67mm
Product Description
1. This strip is SK6813 individually address controlled 12V RGB Pixel led digital stripe tape.
2. Its advantage is this SK6813 pixel digital led strip has breakpoint continued transsmission function. That means if one pixel led broken, won't affect other leds working performance compared to that classicial 5V addressable sk6812 RGB led strip couldn’t

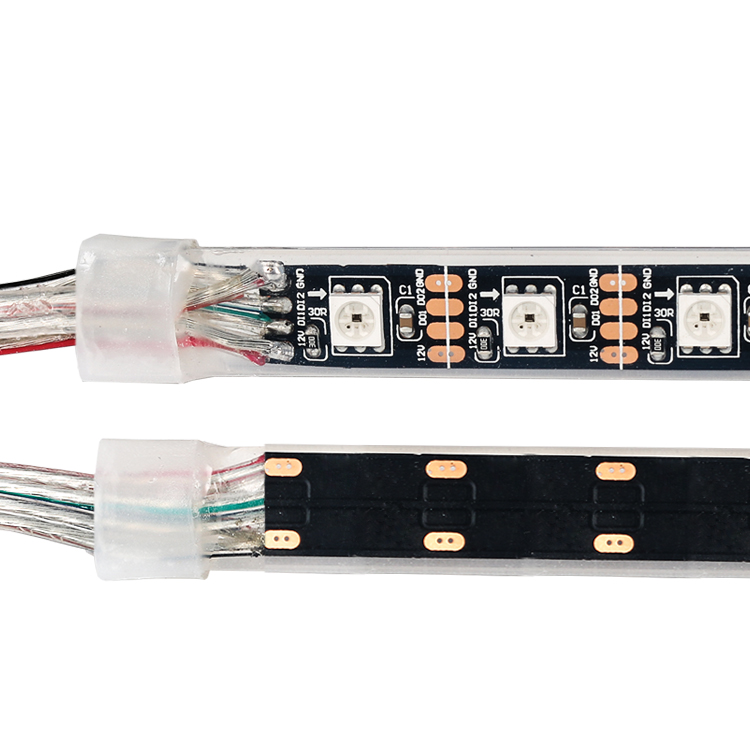

3. Entire strip has 60 pixels ( 180 channels) assembled in 60 pcs 5050 RGB leds in a meter with 10mm width FPCB.
4. There are individually address controlled 12V 30 pixels and 144 pixels led tapes to choose.
5. Vivid lighting performance operated by Arduino, Raspberry Pi , Madrix software, Artnet / DMX512 /MADRIX NEBULA led controllers.
6. Addressable controlled pixel led tape is flexible , bright, durable and easy for installation.
For bare board strip, you can use the 3M adhensive tape on back; For waterproof silicone tube strip, there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well.
7. Widely used in entertainment, stage, live performance, Disco Club and TV Show, etc
