SK6812/WS2812B 3535RGB 30LEDs/m Pixel Strip

P/N : ZH0530SK681235V5

SK6812 /WS2812B protocol

IC inserted in SMD5050 RGB LEDs

30LEDs/m , DC5V , 7.2Watt/m

Maximum 5V @ 60mA draw per LED (all LEDs on full brightness)

1 integrated RGB LEDs per segment, individually controllable

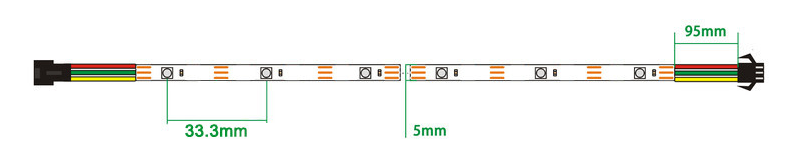

P33.33mm Pixel Pitch

White or Black PCB

Waterproof IP20/IP65/IP68


Product Description

Compare with the classic 5050 strips , it is the MINI /  'skinny' version .30pcs MINI 3535 RGB LEDs per meter, only 5mm PCB width , and you can control each LED individually! the controller chip is inside the LED, which is kind of cool to get high density LEDs in one meter ,the chip only uses a single pin for input and a single pin for output.



You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel). The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 1 digital output pin are required to send data down. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you .



These LED's use about 7.2Watts max per meter. The max rating is assuming all the LEDs are on full white, usually the actual current for colorful design is about 1/3 to 1/2 the max current.

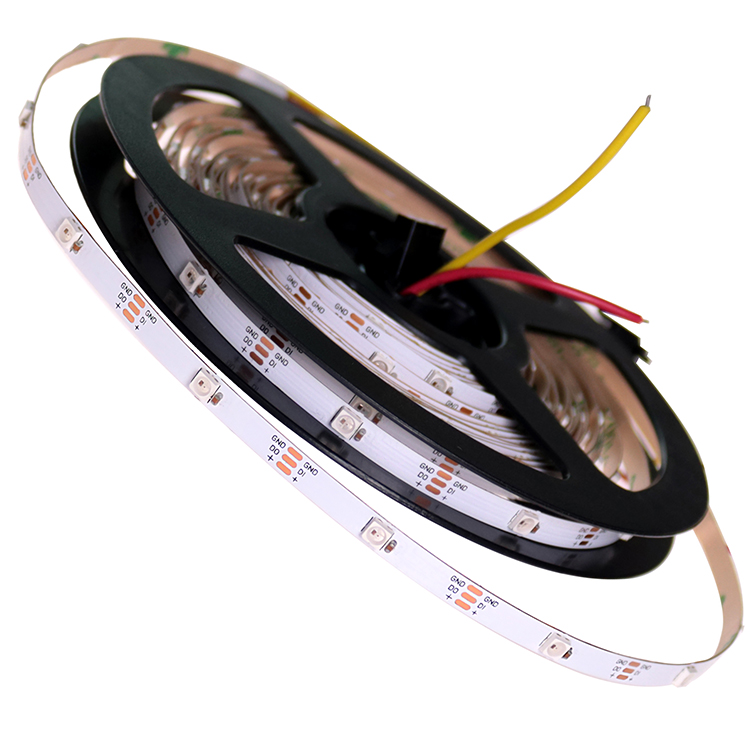

The strip is made of flexible PCB material , It has black and white PCB optional , you can choose the most matched color based on your application back ground .



Commonly production comes with 5meters per continue strips , but you can customized length like 1m , 2m , and so on , as it can be cut each 33.33mm length .



Waterproof like IP65/IP68 , with silicon tube/ silicon glue covered front side of strips , or the strongest protection with glue rounded the strips .



3PIN JST SM connector on each end and separated power/ground wires for easy dasiy chain and power feeding .



Part Number

ZH0530SK681235V5

Lighting Source

SMD3535 RGB LED

IC chip

Sk6812 / WS2812B

Voltage

DC5V

Wattage

7.2W max when full brightness

LEDs/m

30LEDs/m

Pixels /m

30Pixels per meter

PCB color

White or black

Pixel control

Addressable pixel control

IP rate

IP20/IP65/IP67

Working Temperature

-20~60


Outline Diameter
