SK6812 WS2812B 30/60/144 LEDs Pixel LED Strip Light

SK6812 WS2812B LED chip

30/60/144leds per meter

Black or white PCB

DC5V or dc12v low voltage input

SD card controller, DMX controller, Arduino and etc.

Product Description

1. WS2812B SK6812 is the diode with driving IC chip packaged in a 5050 components, WS2812 SK6812 is an intelligent integrated lighting sourcing.


2. The controller chip is inside the LED, which is kind of cool, enable more pixels in a certain distance. When the ws2812 sk6812 build in strips, it solves the problem that IC chip outside PCB goes easy to break.


3. WS2812B SK6812 strips are the individually addressable pixel strips, you can control each led individually, you can sent the color of each LED's red, green and blue.


4. WS2812B and SK6812 strips are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. There is cut lines between each LED, you can cut it pretty easily.


5. The PWM is built into each LED chip, so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.

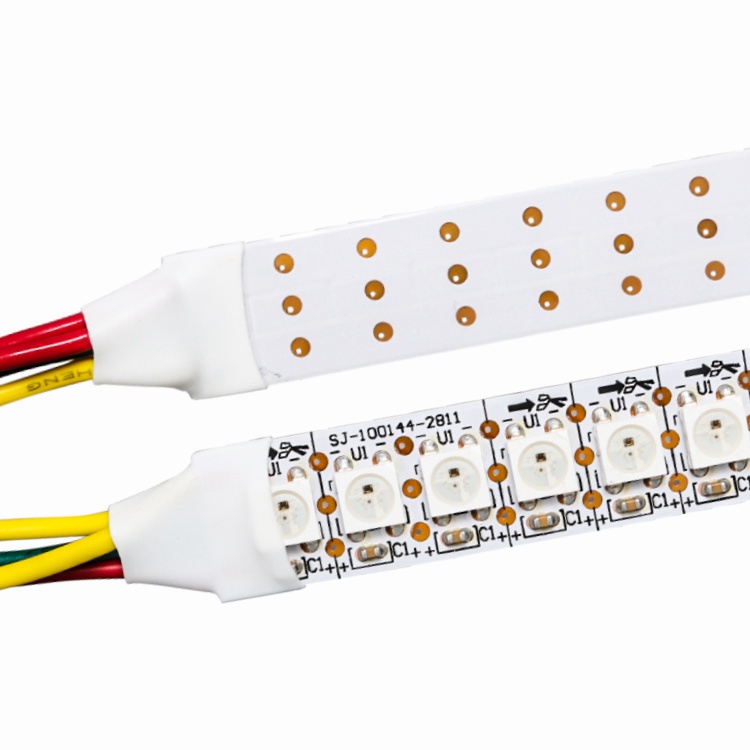

6. WS2812B SK6812 strips standard come with a 3-pin JST SM connectors on both end and separated power / ground wires

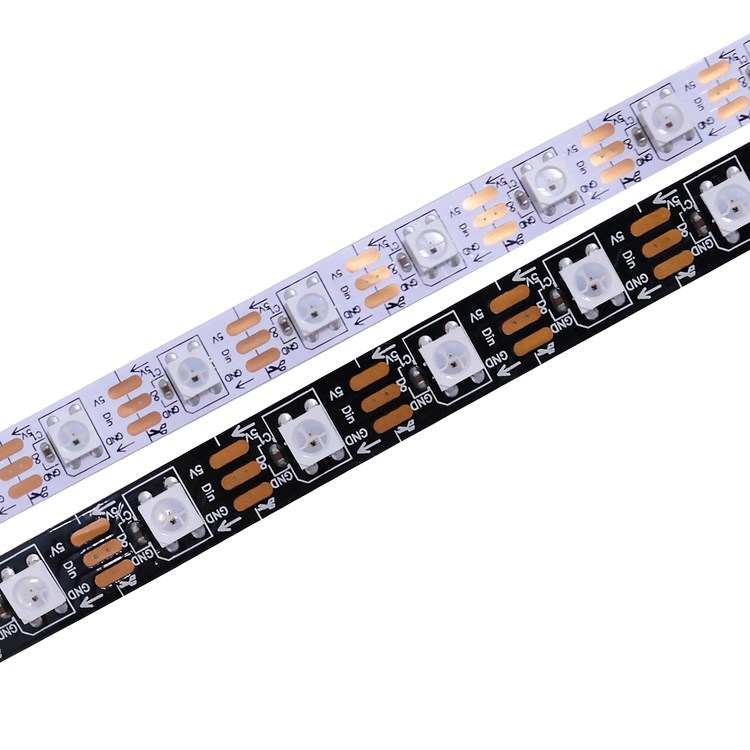

7. These strips can make in white and black flexible PCB, choose the color which is more coordination with your back ground.


8. There are strips 30/60/144leds per meter 5V, as well as the 12V, not only RGB color, but also single white color.


PARAMETER:

P/NZH10030SK6812ZH10060SK6812ZH100144SK6812
Lighting sourceSK6812 SMD5050SK6812 SMD5050SK6812 SMD5050
VoltageDC5V / D12VDC5V / D12VDC5V / D12V
Wattage7.2watt14.4w34.5w
Pixels /m3060144
PCB width10mm10mm12mm
Pixel pitch33.3mm16.7mm6.9mm
Standard reel5m/reel5m/reel1m/reel
PCB colorWhite /blackWhite /blackWhite /black
O. T-30℃ ~ 45℃-30℃ ~ 45℃-30℃ ~ 45℃

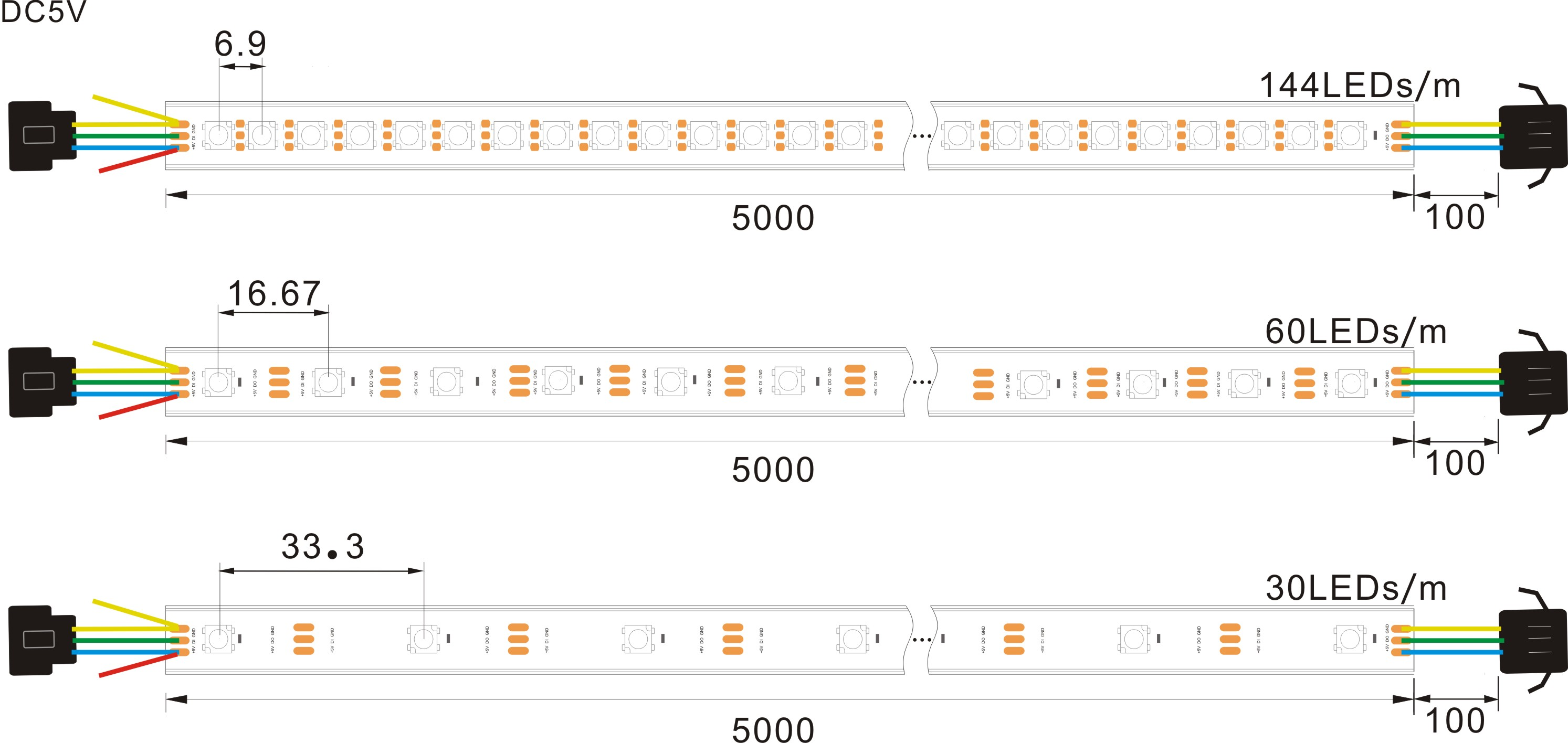

DIMENSION ( unit:  mm ):
