SK6812 RGBW 144LED Pixel Strip Light

1. Smart RGB+White LEDs! have 4 LED chips in them (red, green, blue and white) for excellent lighting effects. These LED strips are fun and glowy, and you can control each LED individually!  There are 144 RGBW LEDs per meter, the controller chip is inside the LED, which is kind of cool to get high density LEDs in one meter, the chip only uses a single pin for input and a single pin for output.

2. 5050-sized LEDs with an embedded microcontroller inside the LED. You can set the brightness and color of each R/G/B/W with 8-bit PWM precision (so 32-bit color per pixel).The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.

3. These LED's use about 46 Watts max per meter. The max rating is assuming all the LEDs are on full white, usually the actual current for colorful design is about 1/3 to 1/2 the max current.

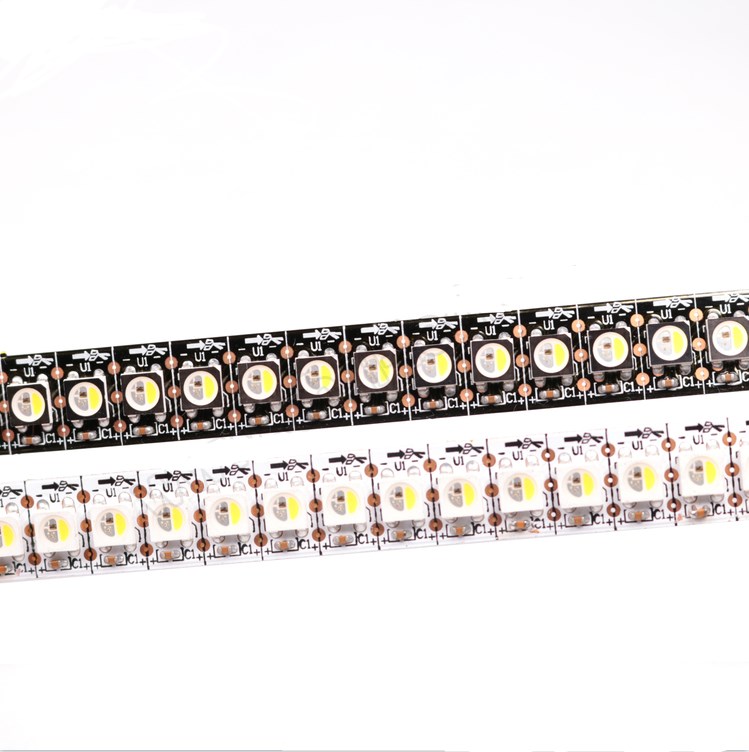

4. The strip is made of flexible PCB material, It has black and white PCB optional, you can choose the most matched color based on your application back ground.

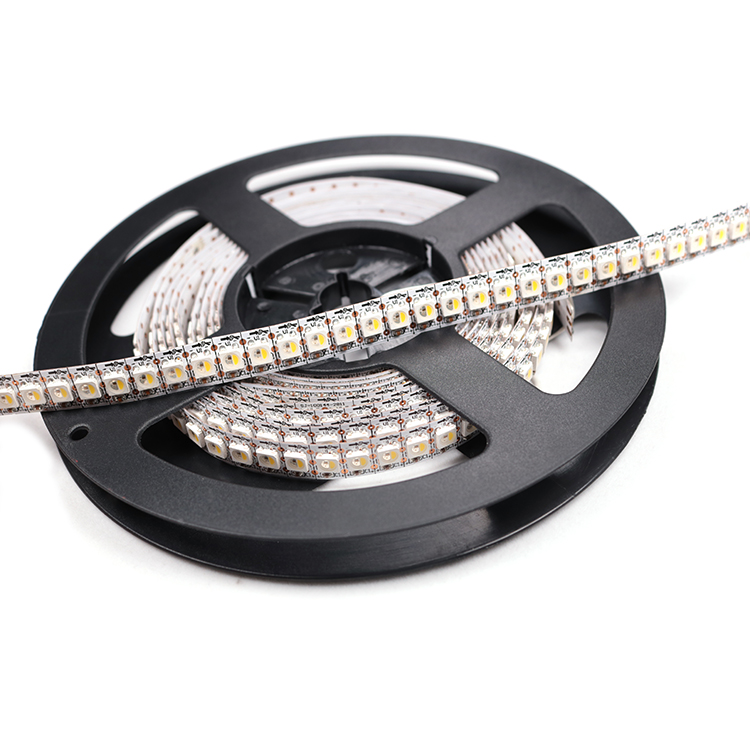

5. Commonly production comes with 5meters per continue strips, but you can customized length like 1m, 2m, and so on, as it can be cut each 6.9mm length.

6. Waterproof like IP65/IP68, with silicon tube/ silicon glue covered front side of strips, or the strongest protection with glue rounded the strips.

7. 3PIN JST SM connector on each end and separated power/ground wires for easy dasiy chain and power feeding.
