SK6812 4020 Addressable LED Side Light Strip-90 LED

P/N :ZH0590SK68124020

SK6812 protocol

IC inserted in SMD4020 RGB LEDs

90LEDs/m , DC5V , 21.6Watt/m

Maximum 5V @ 60mA draw per LED (all LEDs on full brightness)

1 integrated RGB LEDs per segment, individually controllable

P11mm Pixel Pitch

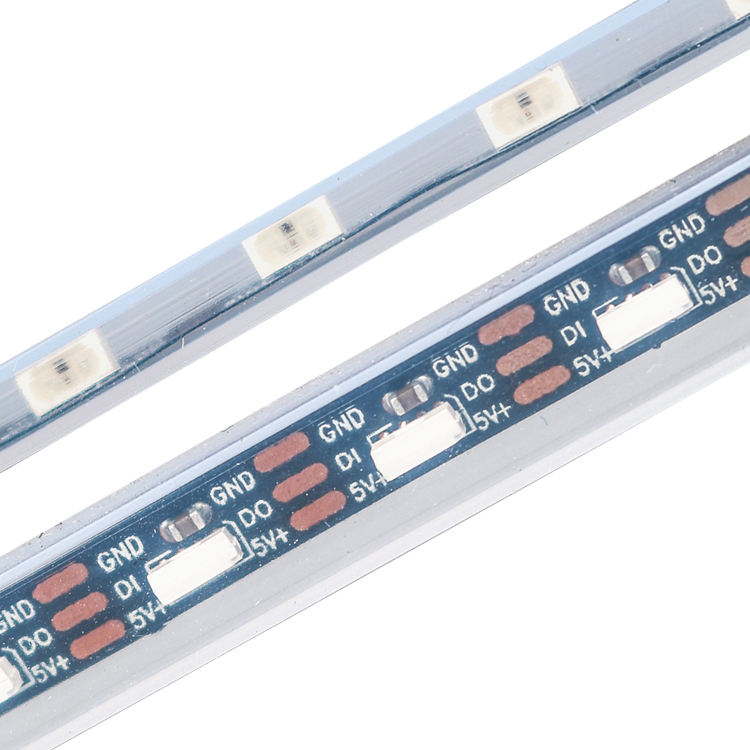

White or Black PCB

Waterproof IP20/IP65/IP68


Product Description

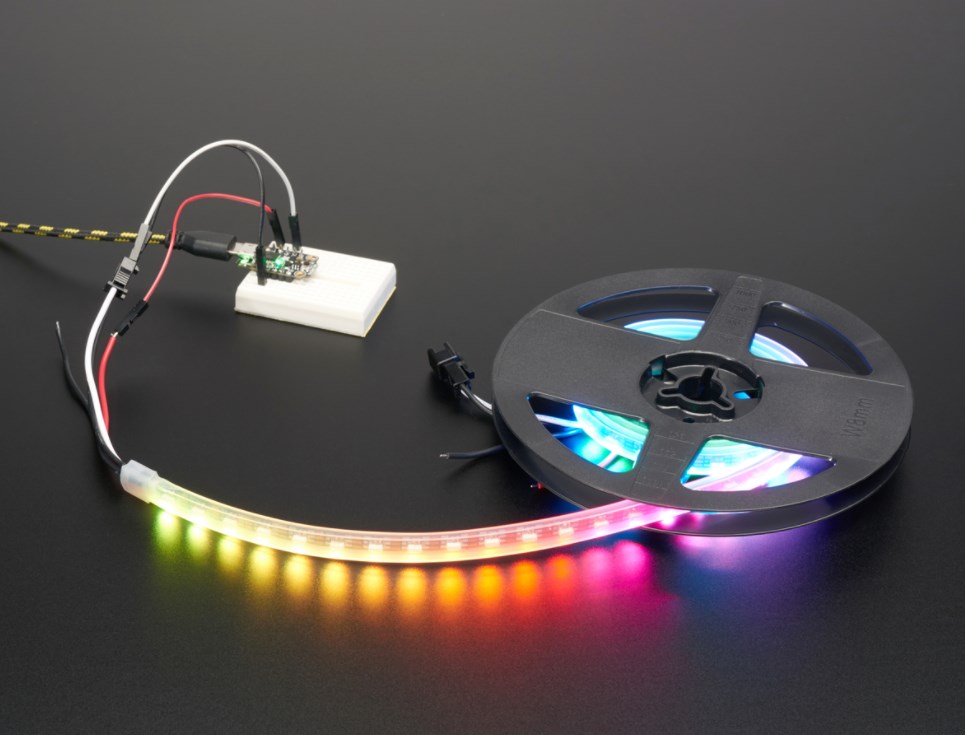

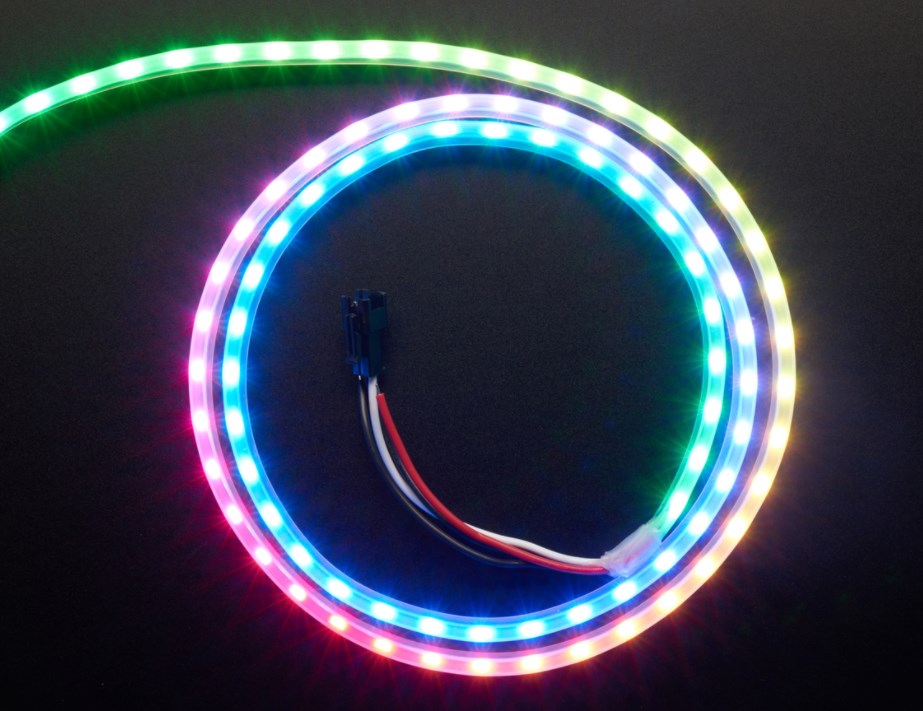

Fancy new side light LED strips are a great alternative for people who want gorgeous, glowy light emitting at 90 degrees. They're very skinny so you can run them along a thin edge and curve them around shapes and corners. These look awesome for accent lighting, back lighting, edge lighting, etc!


This is the 90 LED-per-meter version of our Side Light strips. We also have 60LED/M , 120 LED/m and 144 LED/m on white or black flex PCB.


You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel). The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 1 digital output pin are required to send data down.


The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you .


These LED's use about 21.6 Watts max per meter. The max rating is assuming all the LEDs are on full white, usually the actual current for colorful design is about 1/3 to 1/2 the max current.


Commonly production comes with 5meters per continue strips , but you can customized length like 1m , 2m , and so on , as it can be cut each 11mm length .


Waterproof like IP65/IP68 , with silicon tube/ silicon glue covered front side of strips , or the strongest protection with glue rounded the strips .


3PIN JST SM connector on each end and separated power/ground wires for easy dasiy chain and power feeding .


Part Number

ZH0590SK68124020

Lighting Source

SMD4020 RGB LED

IC chip

SK6812

Voltage

DC5V

Wattage

21W max when full brightness

LEDs/m

90LEDs/m

Pixels /m

90Pixels per meter

PCB Width

5mm

PCB color

White or black

Pixel control

Addressable pixel control

IP rate

IP20/IP65/IP67

Working Temperature

-20~60

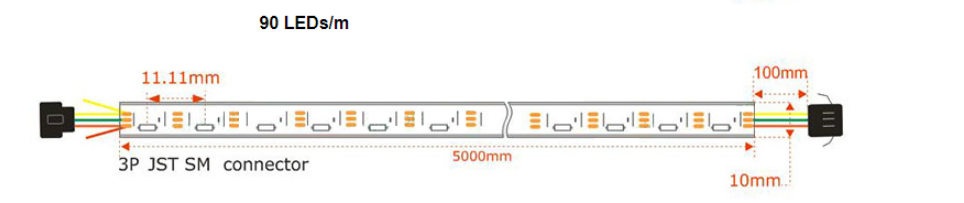

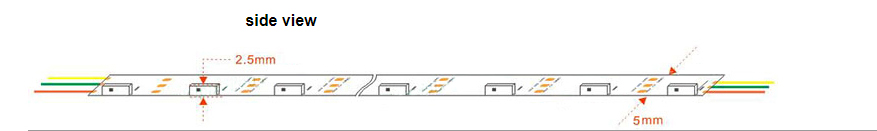

Outline Dimension
