SK6812 4020 Addressable LED Side Light Strip-144 LED

Fancy new side light LED strips are a great alternative for people who want gorgeous, glowy light emitting at 90 degrees. They're very skinny so you can run them along a thin edge and curve them around shapes and corners. These look awesome for accent lighting, back lighting, edge lighting, etc!

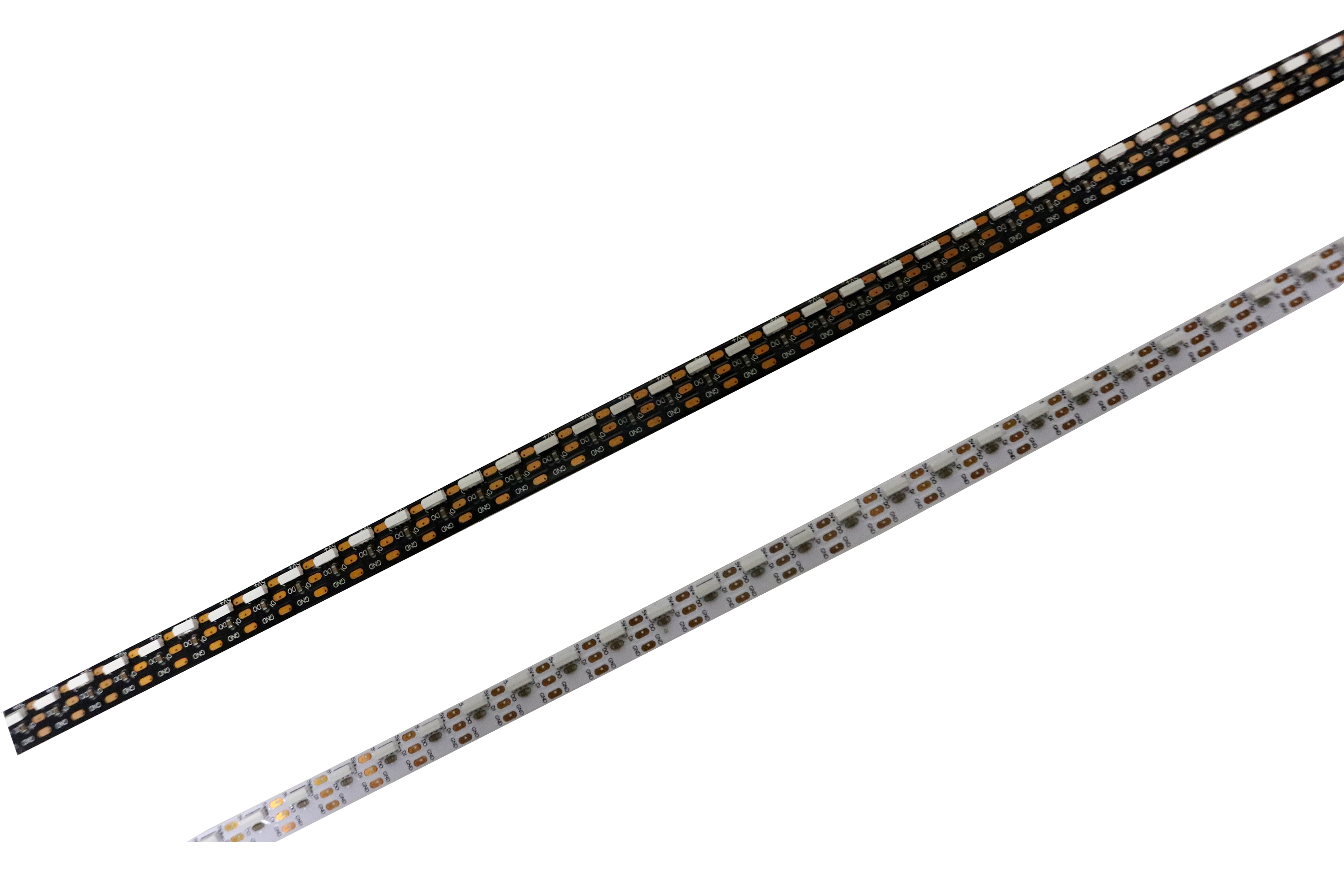

This is the 144 LED-per-meter version of our Side Light strips. We also have 30LED/M ,  60 LED/m, 90 LED/m and 120LED/m  , on white or black flex PCB.

You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel). The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 1 digital output pin are required to send data down. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you

These LED's use about 34.5 Watts max per meter. The max rating is assuming all the LEDs are on full white, usually the actual current for colorful design is about 1/3 to 1/2 the max current.

Waterproof like IP65/IP68 , with silicon tube/ silicon glue covered front side of strips , or the strongest protection with glue rounded the strips .

3PIN JST SM connector on each end and separated power/ground wires for easy dasiy chain and power feeding .

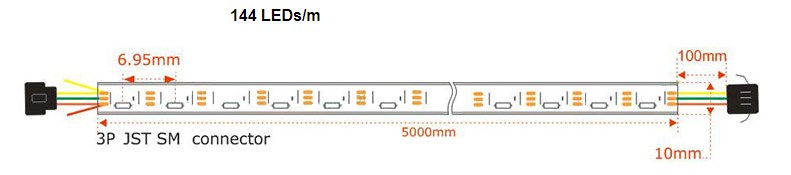

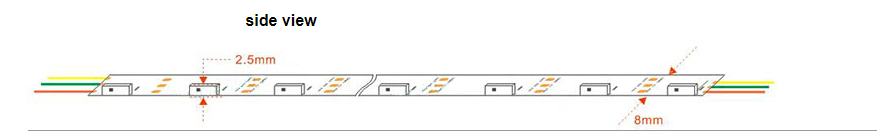

Outline Dimension
