SK6812 4020 Addressable LED Side Light Strip-120 LED

P/N :ZH08120SK68124020

SK6812 protocol

IC inserted in SMD4020 RGB LEDs

120LEDs/m , DC5V , 28.8Watt/m

Maximum 5V @ 60mA draw per LED (all LEDs on full brightness)

1 integrated RGB LEDs per segment, individually controllable

P8.3mm Pixel Pitch

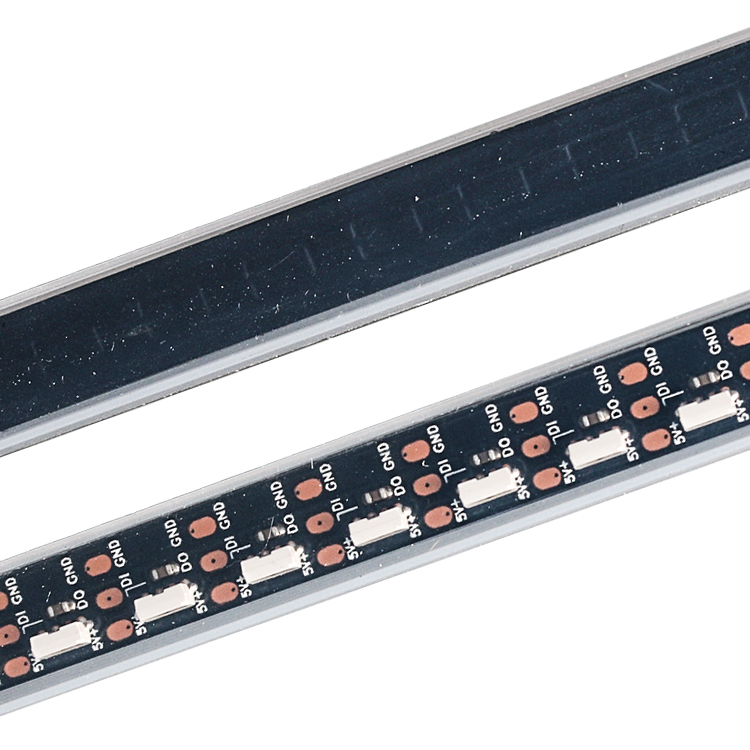

White or Black PCB

Waterproof IP20/IP65/IP68


Product Description

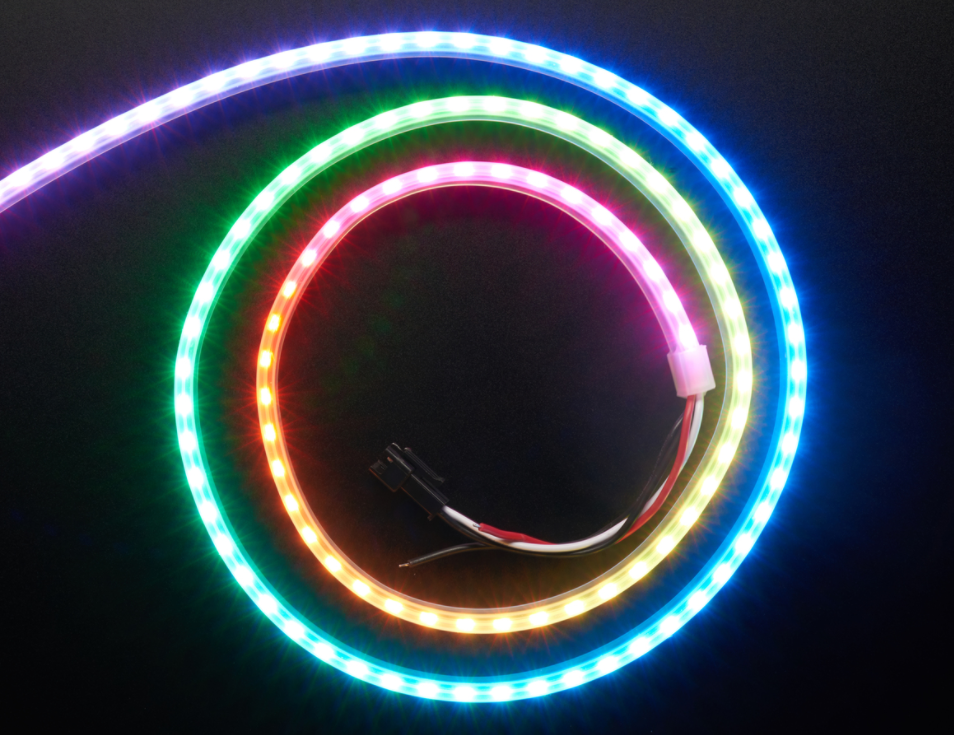

Fancy new side light LED strips are a great alternative for people who want gorgeous, glowy light emitting at 90 degrees. They're very skinny so you can run them along a thin edge and curve them around shapes and corners. These look awesome for accent lighting, back lighting, edge lighting, etc!


This is the 120 LED-per-meter version of our Side Light strips. We also have  60 LED/m, 90 LED/m and 144LED/m  , on white or black flex PCB.


You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel). The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 1 digital output pin are required to send data down. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.


These LED's use about 28.8 Watts max per meter. The max rating is assuming all the LEDs are on full white, usually the actual current for colorful design is about 1/3 to 1/2 the max current.


Waterproof like IP65/IP68 , with silicon tube/ silicon glue covered front side of strips , or the strongest protection with glue rounded the strips .


3PIN JST SM connector on each end and separated power/ground wires for easy dasiy chain and power feeding .


Part Number

ZH08120SK68124020

Lighting Source

SMD4020 RGB LED

IC chip

SK6812

Voltage

DC5V

Wattage

28W max when full brightness

LEDs/m

120LEDs/m

Pixels /m

120Pixels per meter

PCB Width

8mm

PCB color

White or black

Pixel control

Addressable pixel control

IP rate

IP20/IP65/IP67

Working Temperature

-20~60
