Side Light RGBW Digital Addressable 4818 Pixel LED Strip Tape Lights

These are side-lit addressable 1-meter-long 5V RGBW LED strips that come packed with 144 SK6812. SK6812 LEDs are very similar to WS2812s (or "NeoPixel") and work with the same libraries! What makes this LED strip stand apart from others like it is the fact that each SK6812 is attached at a right angle allowing even more options when incorporating it into any design or idea that you want.

A 1m length of our own version of the highly popular Pixel LED strip which has become very popular with hobbyists and professionals alike. With high density 144 individually addressable RGBW LEDs per metre . PixelStrip is ideal for use with Arduino, Raspberry Pi and Teensy as it's supported by most LED libraries including FastLED and Adafruit NeoPixel.

A smart LED control circuit and light emitting circuit in one LED package. Each lighting element is a pixel and the output is driven by patented PWM technology, which  guarantees high colour consistency across all pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RCoscillator.

This LED strip has a low drive voltage which allows for environmental protection and energy saving, high brightness,  good consistency, low power and long life.

The drive IC is the well proven SK6812. It has a standard 3 line construction - +ve, data and -ve. It is packaged inside the 4818SMD LED Chip meaning that each LED can be a different colour and programmed individually.

IP Rating: IP65/20

Wattage: 46w per metre (max)

Voltage: 5V

IC Type: SK6812

Colour Temperature: RGBW ( W can be 3000K or 4000K , 6000K )

Number of LEDs: 144 LEDs per metre

Control Resolution: 1 LED

Tape Width: 8mm

Cut Points: Every 6.94mm

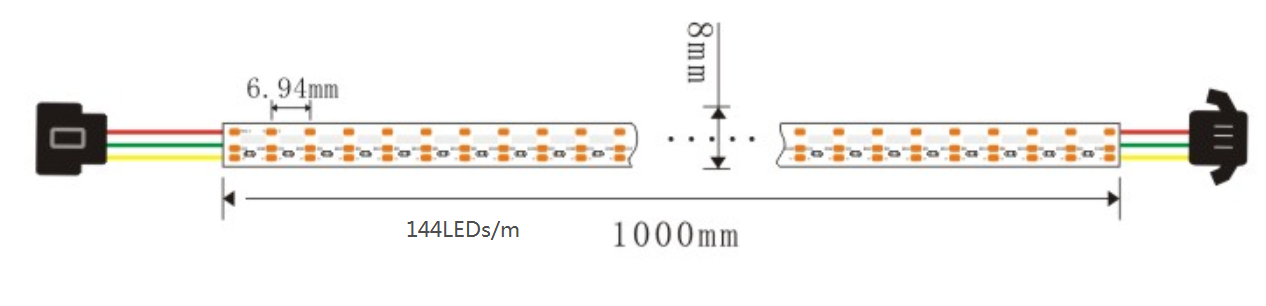

Outline Dimension
