GS8208 DC12V 60LED strip

1. In the past few years, we tried to produce one type strip that can be drove by 12v directly. We tried to use a small circuit board attached on 5v pixel strips to make it in 12v, we advise our customers to use the 3leds one pixel strips to instead the addressable strips. Now GS8208 strips solve all this problem, no need the small back ugly PCB, 12v working directly and still in addressable pixel control, it is the GS8208 pixel strips !

2. GS8208 60 rgb pixel led strips is the dual-wire strips, GND/DATE 1/DATE 2/ V+, Why 2 data signal? it is for led strip one led is broken, another data still can work, unless 2 next led Two successive LED is broken then the led strip can not working. This GS8208 addressable 12V can make the led strip one is broken will not affect another led working.

3. GS8208 60LED strip has two date wire, how is the connection ? DATE1 to controller's DATE PIN, and DATE2 to controller's GND.

4. GS8208 60LEDs strips build with flexible PCB, individually addressable control .Each led is one pixel, easily to be cut and re-soldering based on the cut lines and soldering pads between each LED.

5. GS8208 Strips has white and black PCB for choosing, addressable pixel control single color is also workable such as single warm white, single cool white. Each roll comes with one pair female / male jst sm connectors on both end for signal input and output.

6. Widly controller can be used like DMX with a decoder, SD card controller, DVI controller, software LEDEdit / LEDEasy /Madrix and so on.

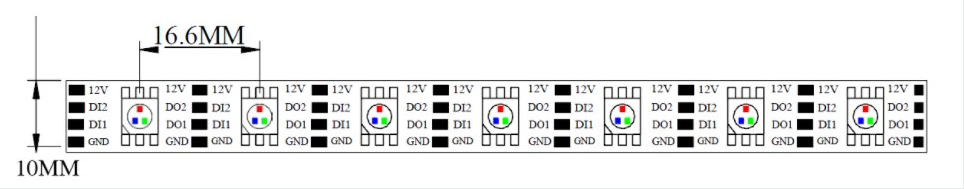

Dimension
