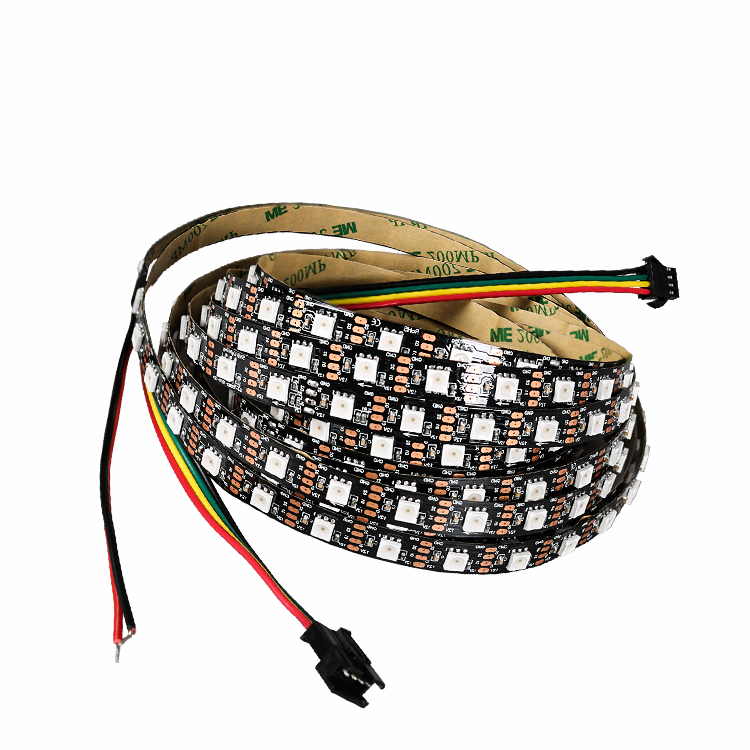

GS8208 30/60/144 LEDs/m DC12V Addressable RGB Pixel Flexible LED Tape Light

Home > Products > Flexible LED Strip > Digital LED Strip > GS8208 30/60/144 LEDs/m DC12V Addressable RGB Pixel Flexible LED Tape Light

GS8208 30/60/144 LEDs/m DC12V Addressable RGB Pixel Flexible LED Tape Light

Light source :  SMD5050 Intelligent RGB LED

Beam angle :  140 deg

Operating voltage :  DC12V

Consumption watts :  9±W

Protocol :   GS8208 IC

Density :  60 Pixels , 60LEDs per meter

PCB board :  10mm wide, 0.25mm thickness

Pixel Pitch : 16.67mm


Product Description

1. This strip is GS8208 individually address controlled 12V RGB Pixel led digital stripe tape.


2. Its advantage is this SK6813 pixel digital led strip has breakpoint continued transsmission function. That means if one pixel led broken, won't affect  other leds working performance compared to that classicial 5V addressable sk6812 RGB led strip couldn’t

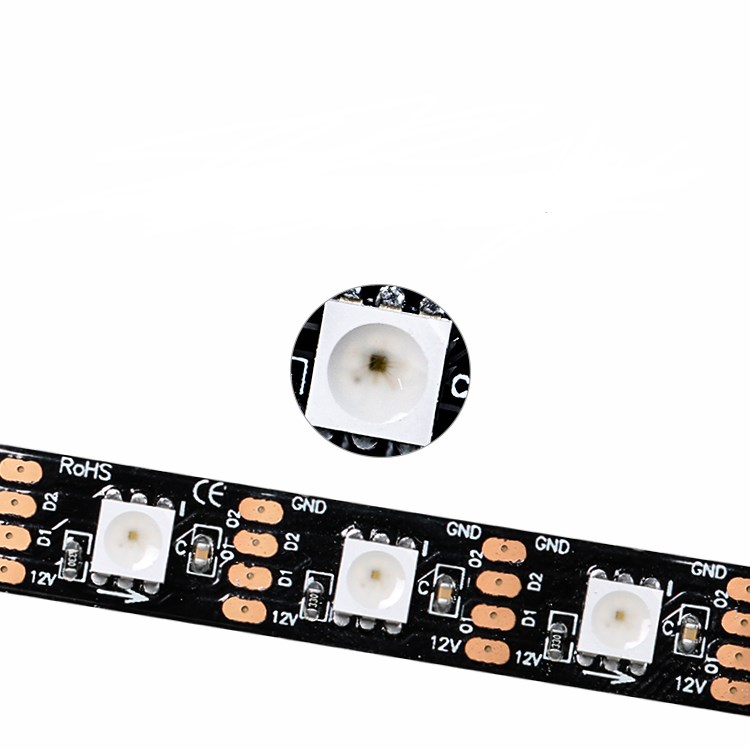

3. Entire strip has 60 pixels ( 180 channels) assembled in 60 pcs 5050 RGB leds in a meter with 10mm width FPCB.


4. There are individually address controlled 12V 30 pixels and 144 pixels led tapes to choose.


5. Vivid lighting performance operated by Arduino, Raspberry Pi , Madrix software, Artnet / DMX512 /MADRIX NEBULA led controllers.


6. Addressable controlled pixel led tape is flexible , bright, durable and easy for installation.


For bare board strip, you can use the 3M adhensive tape on back; For waterproof silicone tube strip, there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well.


7. Widely used in entertainment, stage, live performance, Disco Club and TV Show, etc .
