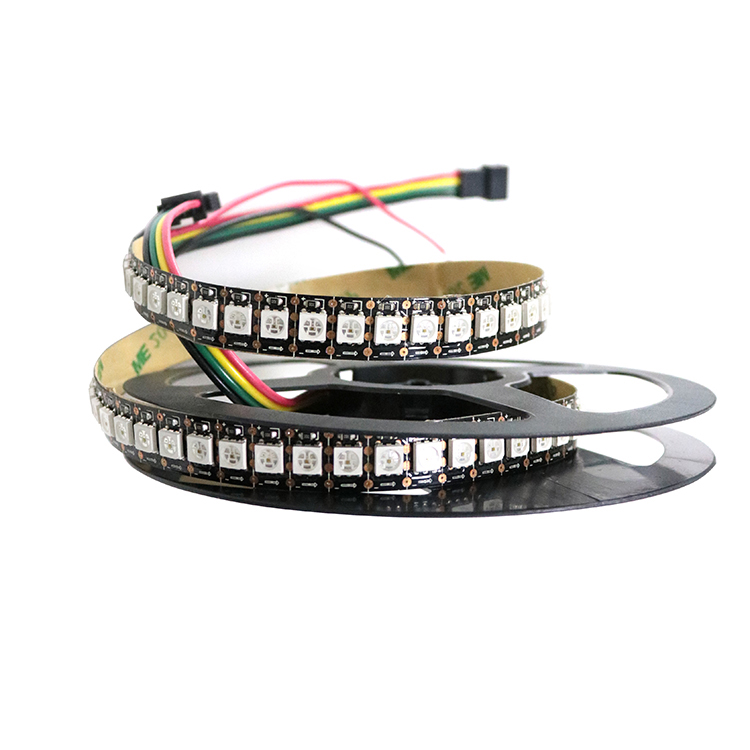

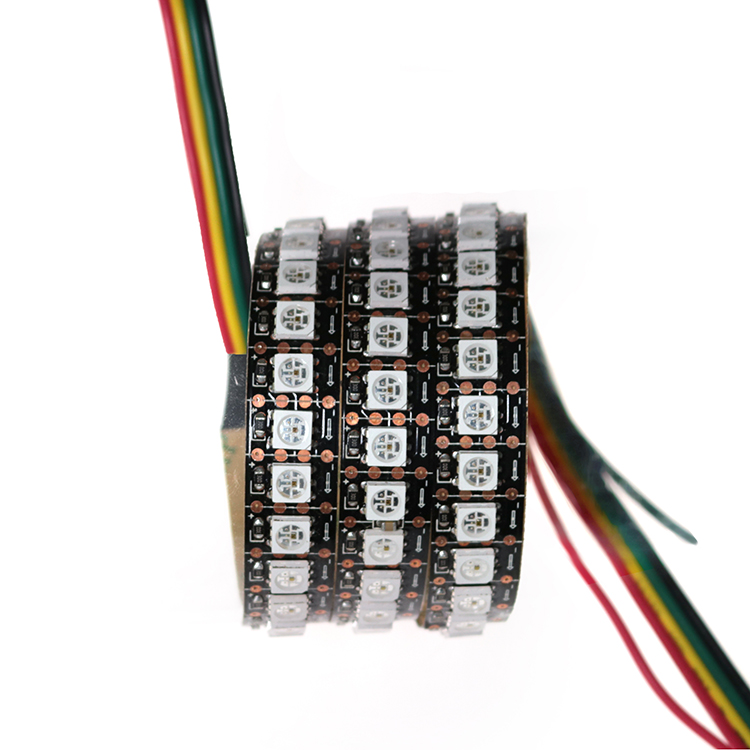

GS8208 144LED RGB Strip

P/N: ZH100144GS8208

SMD5050 RGB LED Lighting source

GS8208 IC chip inserted in diode

DC12V, 144LEDs per meter

12MM width PCB

Two date wire strip, break-point type strips

4Pin Jst SM connectors for date in / out

Product Description

1. We have good experience with 5V addressable led pixel strip, we maybe tried efforts to find something that can be drived by DC12V directly, and good same as 5v strips, now it came, GS8208 strips.

2. GS8208 strips is double date type strips, GND / DATE 1 /DATE 2 /V+; Why 2 data signal? it is for led strip one led is broken, another data still can work, unless 2 next led Two successive LED is broken then the led strip can not working. This GS8208 addressable 12V can make the led strip one is broken will not affect another led working.

3. 144 LEDs build on flexible PCB each meter, individually addressable control.

4. GS8208 is the strips that each led is one pixel, each led can be cut with cut lines on PCB. Addressable pixel control single color like warm white or cool white is also available.

5. GS8208 rgb led strips has white and black PCB, you can choose the color which less difference with the background. Female / male jst sm connectors on both end for signal input and output.

6. Controller like DMX, SD card, DVI controller, software LEDEdit / LEDEasy /Madrix and so on.


P/NZH100144GS8208
Lighting sourceSMD5050 RGB LED
VoltageD12V
Wattage34.5w
Pixels /m144
IC chipGS8208
PCB width12mm
Pixel pitch6.9mm
Standard reel1m/reel
PCB colorWhite /black
O. T-30℃ ~ 45℃

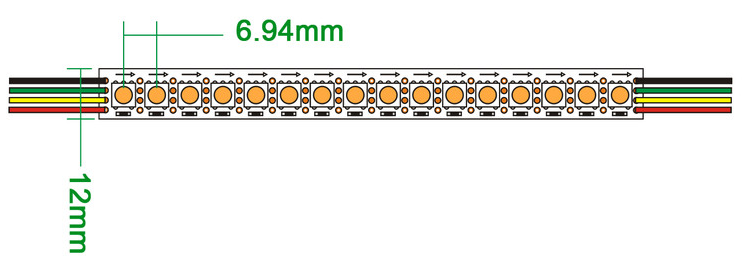

Dimension
